Description
Uniview 5MP 8 Channel DVR Supports 1-SATA AOC XVR H.265/H.264
Code: XVR301-08G3
Package contains:
- 1x 5MP 8 Channel DVR 1-SATA AOC XVR H.265/H.264 (XVR301-08G3)
Note: The DVR / XVR comes with no Hard Drive – FOR HDD (Hard Drive) Click this link
Or simply select HDD from the above Select HDD option.
Key Features:
- Support H.265/H.264 video formats
- Support audio over coaxial cable
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4 channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
Specification:
| Specifications | ||
| Model | XVR301-04G3 | XVR301-08G3 |
| Video/Audio Input | ||
| Analog Video Input | 4-channel, BNC | 8-channel, BNC |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP | 4-ch(only IP up to 8ch), each channel up to 4MP |
| Supported Analog Camera Types | Support AHD input: | Support AHD input: |
| 5MP@20fps | 5MP@12fps | |
| 4MP@30fps | 4MP@15fps | |
| 1080P@30fps | 1080P@30fps | |
| 720P@60fps | 720P@30fps | |
| Support TVI input: | Support TVI input: | |
| 5MP@20fps | 5MP@12fps | |
| 4MP@30fps | 4MP@15fps | |
| 1080P@30fps | 1080P@30fps | |
| 720P@60fps | 720P@30fps | |
| Support CVI input: | Support CVI input: | |
| 5MP@20fps | 1080P@30fps | |
| 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | 720P@30fps Support CVBS input | |
| Audio Input | 1-ch, RCA | |||
| Audio Compression | G.711U | |||
| Video/Audio Output | ||||
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | HD:2-ch SD:4-ch | HD:4-ch SD:8-ch | ||
| Live view display | HDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | ||
| Two-way Audio | 1-ch, RCA | |||
| Network | ||||
| Incoming Bandwidth | 16Mbps (Up to 24Mbps after all analog channel conversion) | 32Mbps (Up to 40Mbps after all analog channel conversion) | ||
| Outgoing Bandwidth | 48Mbps | 64Mbps | ||
| Remote Users | 128 | |||
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP | |||
| IE(IE10/11) for Windows | ||||
| Firefox (version 52.0 and above) for Windows | ||||
| Browser | ||||
| Chrome(version 45 and above) for Windows | ||||
| Edge(version 79 and above) for Windows | ||||
| Encoding | ||||
| Recording Resolution | 5MP Lite/4MP Lite/1080P/720P/CIF | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF | ||
| Main stream: | Sub stream: | Main stream: | Sub stream: | |
| 5MP Lite@12fps | D1@12fps | 5MP Lite@6fps | D1@6fps | |
| Recording | 4MP Lite@15fps | D1@15fps | 4MP Lite@8fps | D1@8fps |
| Frame Rate | 1080P@15fps | D1@15fps | 1080P Lite@12fps | D1@12fps |
| 720P@25fps | D1@25fps | 720P@12fps | D1@12fps | |
| Audio Sample Rate | 8KHz,16 bit per channel | |||
| Audio Bit Rate | 64Kbps per channel | |||
| Decoding | ||||
| Capability | Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 | ||
| Hard Disk | ||||
| SATA | 1 SATA interface | |||
| Capacity | Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature) | |||
| General Alarm | Motion detection | |||
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||
| External Interface | ||||
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||
| USB Interface | Rear panel: 2 x USB2.0 | |||
| General | ||||
| Power Supply | 12V DC Power Consumption: ≤ 8 W( without HDD ) | |||
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||
| Dimensions(W× D×H) | 260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″) | |||
| Weight ( without HDD ) | ≤1.1 Kg ( 2.42lb ) | |||
| Certification | UL | |||
| CE | ||||
| FCC | ||||
| RoHS | ||||
| WEEE | ||||

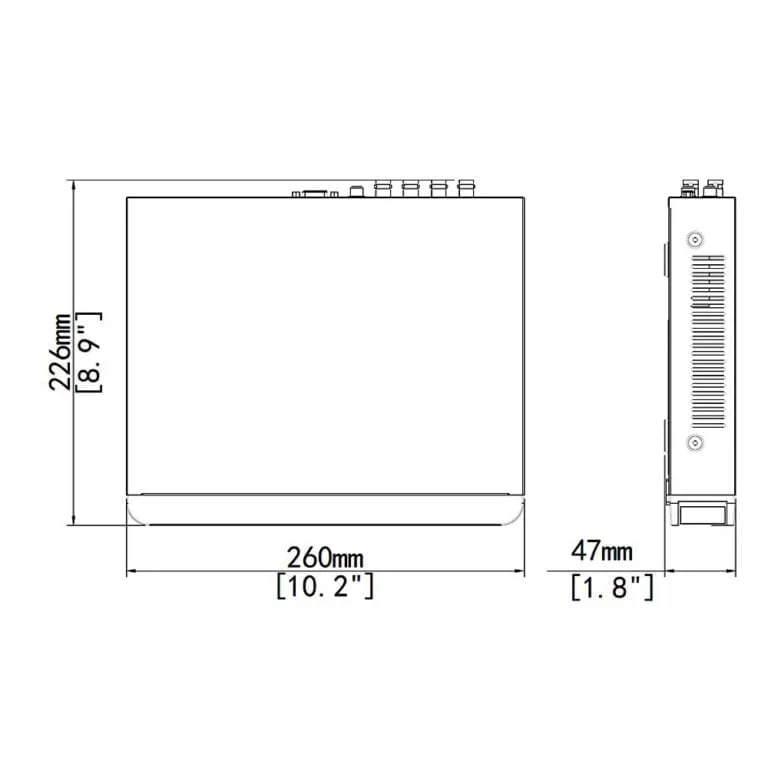

Uniview 5MP 8 Channel DVR – Diagram / Dimensions:

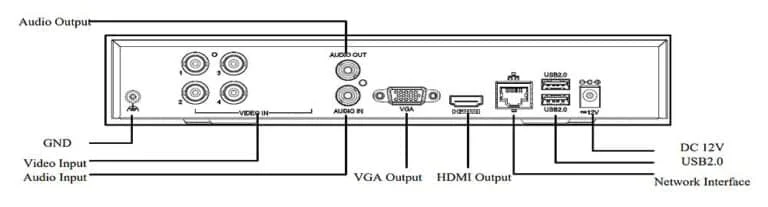

Uniview 5MP 4 Channel DVR Rear Panel Overview :
