LIGHTING

System Power 10W LED Chipset Lumileds Driver Manufacturer Q-Drive Lumen Output 1450 Lm IP Rating IP65 IK Rating IK08 Cable flex 1m Beam Spread 120° Colour Temperature 3000K, 4000K, 6000K (Tri-Colour) Housing Material Aluminium Operating temperature -25 to +45 ℃ Weight 0.8kg Dimensions 122mm x 232mm x 47mm Input Voltage AC100-277V, 50/60 Hz Lifetime 50,000 hours, L70-B10 (Ta 25 °C)

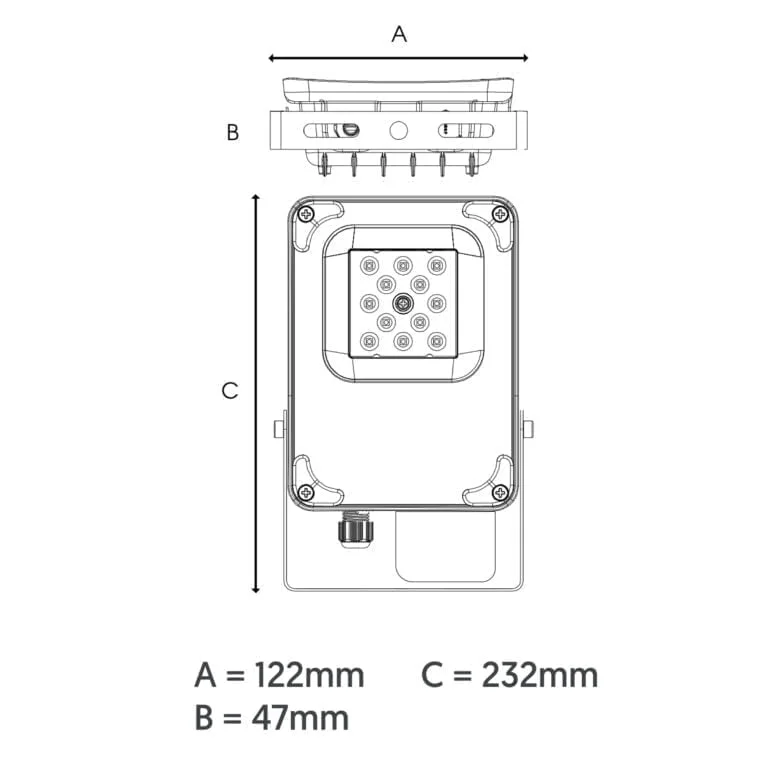

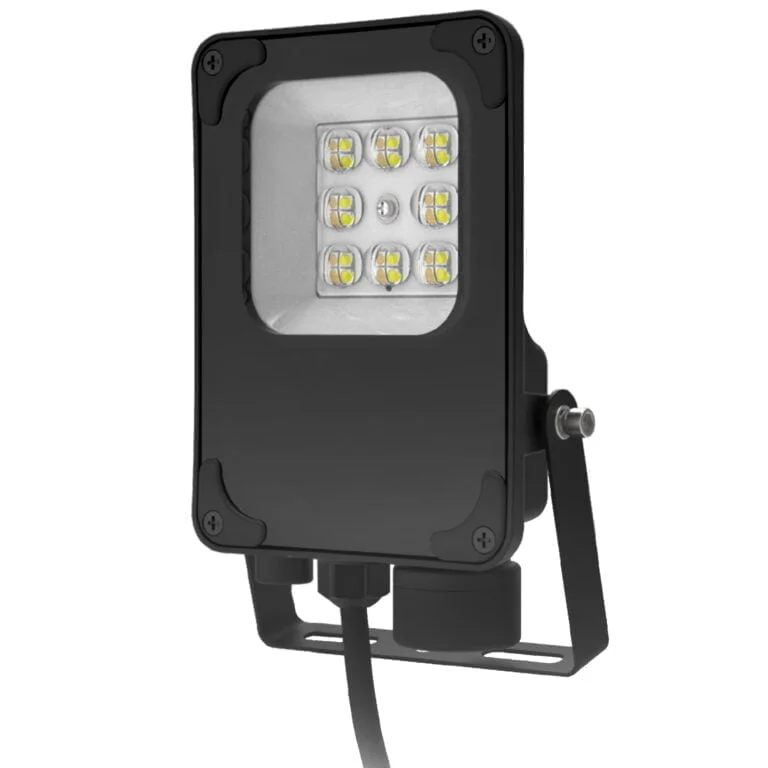

System Power 20W LED Chipset Lumileds Driver Manufacturer Q-Drive Lumen Output 2900 Lm IP Rating IP65 IK Rating IK08 Cable flex 1m Beam Spread 120° Colour Temperature 3000K, 4000K, 6000K (Tri-Colour) Housing Material Aluminium Operating temperature -25 to +45 ℃ Weight 0.8kg Dimensions 122mm x 232mm x 47mm Input Voltage AC100-277V, 50/60 Hz Lifetime 50,000 hours, L70-B10 (Ta 25 °C)

System Power 30W LED Chipset Lumileds Driver Manufacturer Q-Drive Lumen Output 4350 Lm IP Rating IP66 IK Rating IK08 Cable flex 1m Beam Spread 120° Colour Temperature 3000K, 4000K, 6000K (Tri-Colour) Housing Material Aluminium Operating temperature -25 to +45 ℃ Weight 1.2 kg Dimensions 169mm x 248mm x 51mm Input Voltage AC100-277V, 50/60 Hz Lifetime 50,000 hours, L70-B10 (Ta 25 °C)

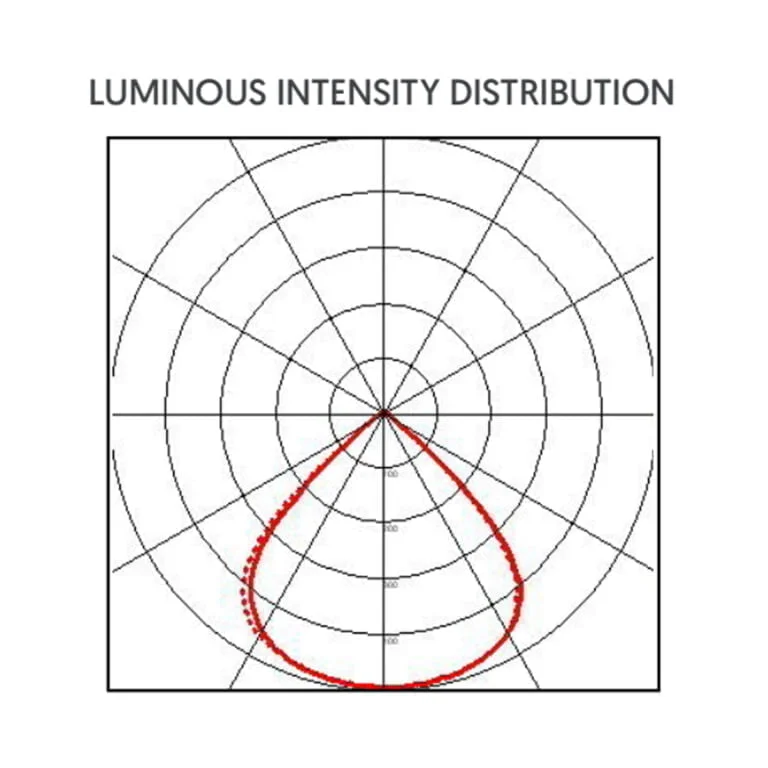

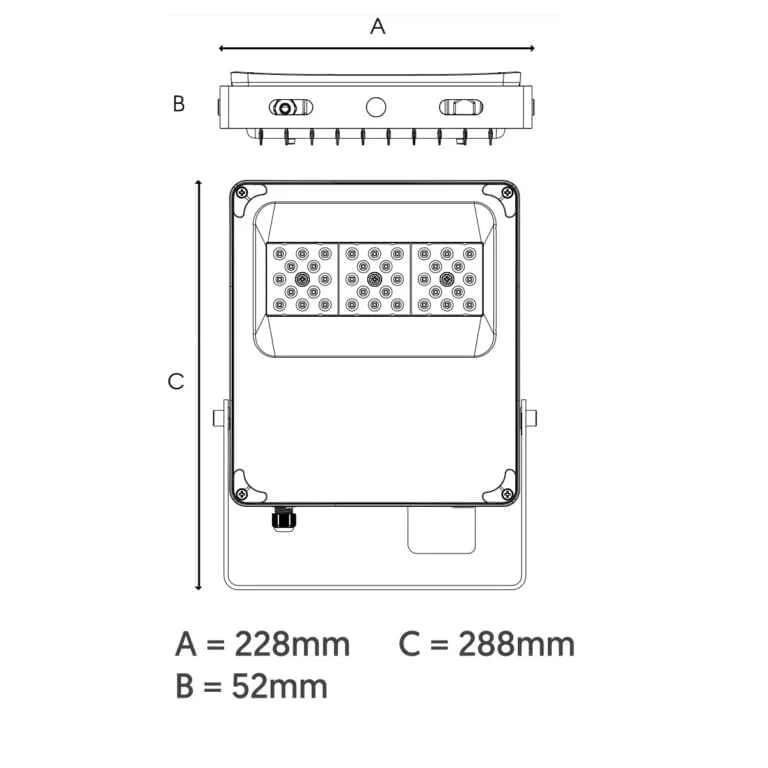

System Power 50W LED Chipset Lumileds Driver Manufacturer Q-Drive Lumen Output 7250 Lm IP Rating IP66 IK Rating IK08 Cable flex 1m Beam Spread 120° Colour Temperature 3000K, 4000K, 6000K (Tri-Colour) Housing Material Aluminium Operating temperature -25 to +45 ℃ Weight 1.2 kg Dimensions 228mm x 288mm x 52mm Input Voltage AC100-277V, 50/60 Hz Lifetime 50,000 hours, L70-B10 (Ta 25 °C)

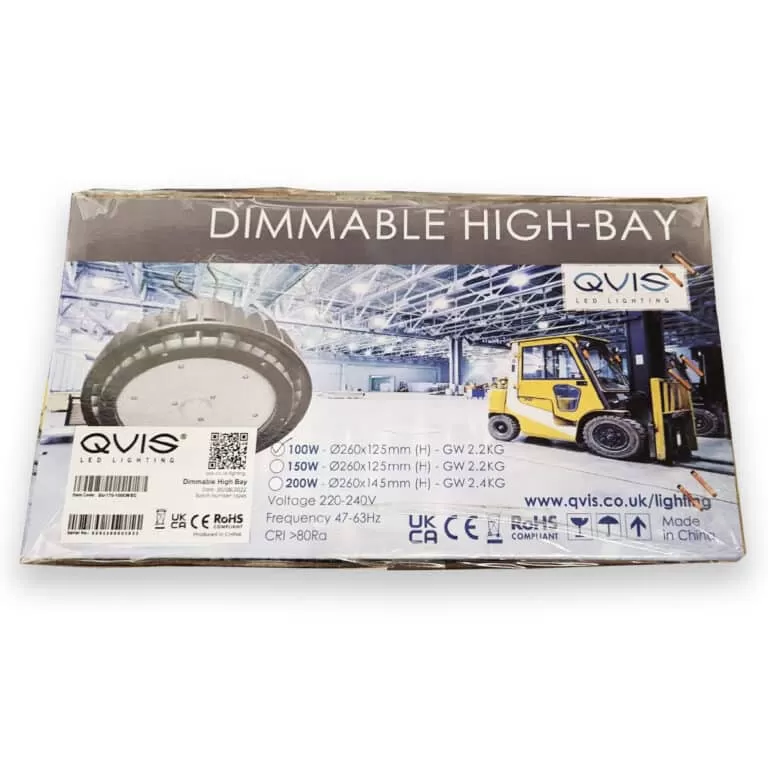

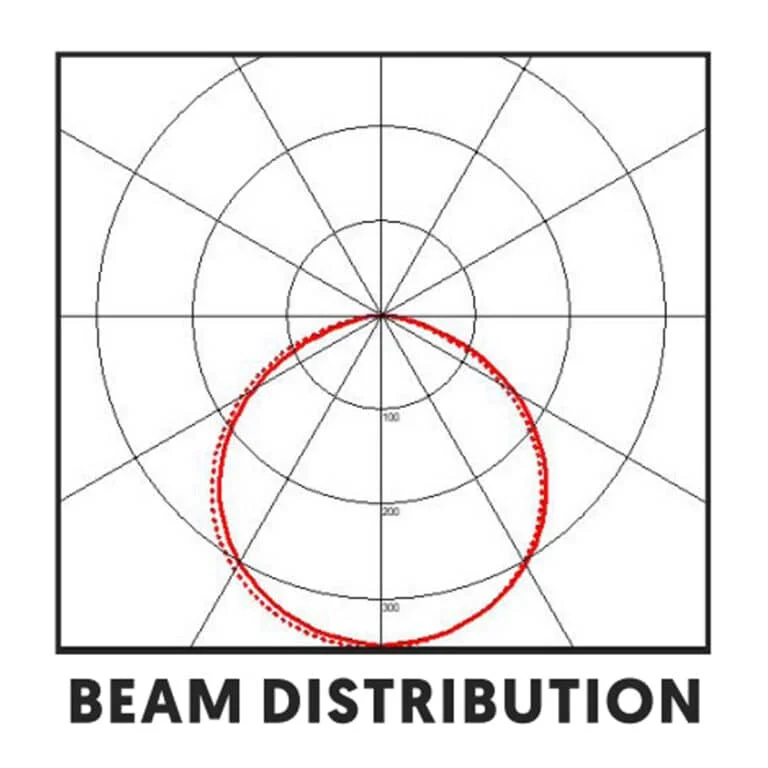

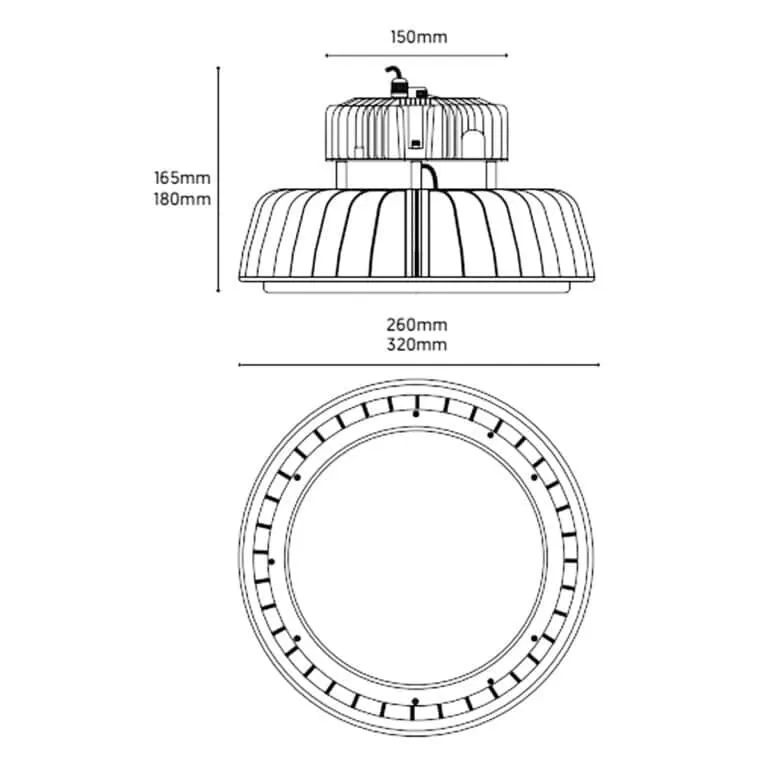

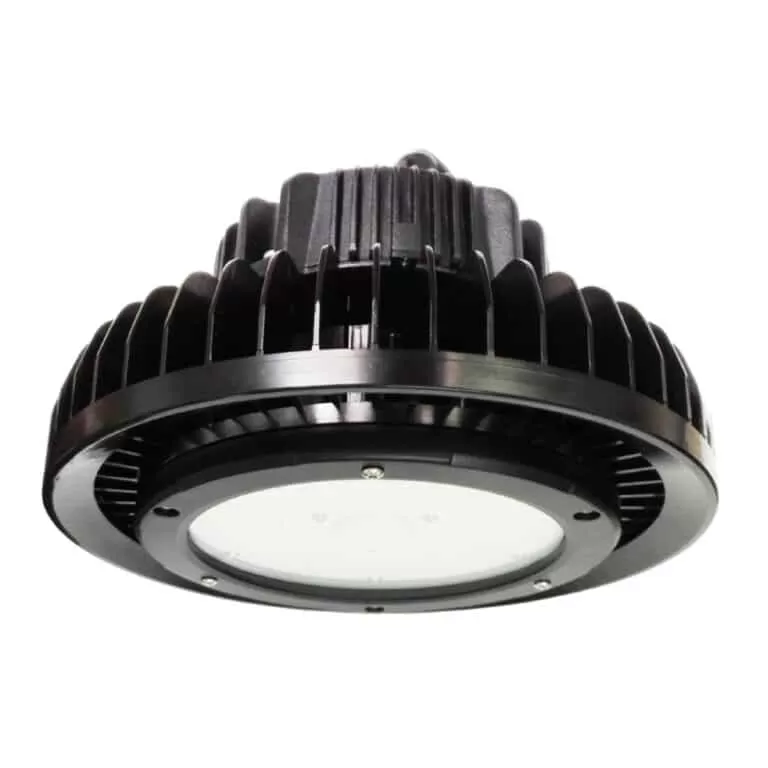

System Power 100W LED Chipset Samsung Driver Manufacturer Lifud Colour Rendering Index (CRI) >85 Lumen Output 14000Lm LED Efficacy 140Lm/cW Power Factor >0.9 IP Rating IP65 IK Rating IK08 Dimmable Contact office Beam Spread 120° Colour Temperature 4000K, 6000K Housing Material Aluminium Diffuser Material Tempered glass Operating temperature -20 to +50 ℃ Input voltage AC 200-240V 47-63HZ Weight 3.3kg Dimensions Ø260mm x 165mm ECA Scheme Compliant Yes

Diffuser Opal System Power 35W LED Chipset Epistar Driver Manufacturer Q-Drive Colour Rendering Index (CRI) >85 Typical UGR <19 Lumen Output 3675Lm LED Efficacy 105Lm/cW Power Factor 0.95 IP Rating IP44 Fire Rating TP[b] Dimmable On request Beam Spread 160° Colour Type Single or Tri-Colour Colour Temperature 3000K / 4000K / 6000K Housing Material Aluminium Operating temperature -20 to +50 ℃ Input voltage AC 200-240V 47-63HZ Weight 2.5kg Dimensions 595mm x 595mm x 32mm ECA Scheme Compliant Yes

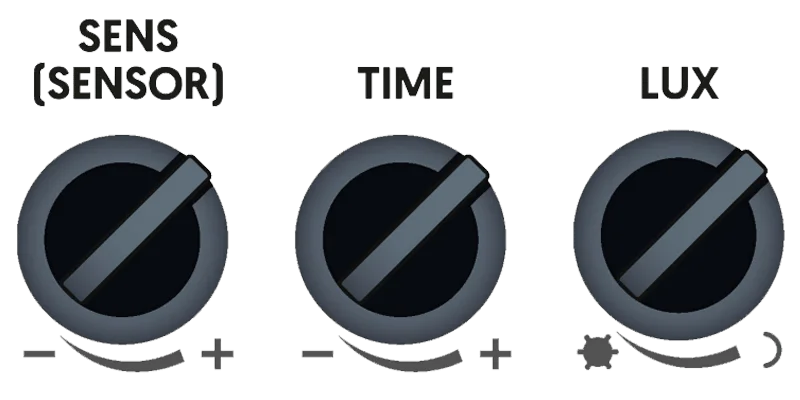

Power Source 220-240V / AC Power Frequency 50 Hz Ambient Light 3 to 2000 lux [adjustable) Time Delay Min: 10s±3s; Max: 7mln±2mln Maximum Rated Load 100W [LED light) Installation Height 1.8m to 2.5m Detection Range 120° Detection Motion Speed 0.6-1.5m/s Detection Distance 2m to 10m (< 24°C) Working Temperature -20°C to 40°C Working Humidity < 93%RH

System Power 30W / 60W LED Chipset Epistar Driver Manufacturer Q-Drive Lumen Output 3600Lm or 7200Lm LED Efficacy 120Lm/cW IP Rating IP20 Diffuser type Polycarbonate Housing Material Iron Weight 1.9kg (30W) or 2.08kg (60W) Input Voltage 220V - 240V AC, 50-60Hz Dimensions 1500mm x 72mm x 72.5mm
