Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264

for price



  • Model Number:  XVR301-04G3
  • Brand:  UNIVIEW
  • DVR Max. Supported Resolution:  5MP
  • Number of Channels:  4 Channel XVR
  • XVR Camera Input:  AoC
SKU: XVR301-04G3 Categories: , , , Tags: , , ,
Share this product

Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264

Code: XVR301-04G3

Package contains:

  • 1x 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264 (XVR301-04G3)

Note: The DVR / XVR comes with no Hard Drive – FOR HDD (Hard Drive) Click this link

Or simply select HDD from the above Select HDD option.


Key Features:

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 4 channel BNC input
  • Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocols



Specification:



Specifications
ModelXVR301-04G3XVR301-08G3
Video/Audio Input
Analog Video Input4-channel, BNC8-channel, BNC
IP Video Input2-ch(only IP up to 6ch), each channel up to 4MP4-ch(only IP up to 8ch), each channel up to 4MP
Supported Analog Camera TypesSupport AHD input:Support AHD input:
5MP@20fps5MP@12fps
4MP@30fps4MP@15fps
1080P@30fps1080P@30fps
720P@60fps720P@30fps
Support TVI input:Support TVI input:
5MP@20fps5MP@12fps
4MP@30fps4MP@15fps
1080P@30fps1080P@30fps
720P@60fps720P@30fps
Support CVI input:Support CVI input:
5MP@20fps1080P@30fps
4MP@30fps
1080P@30fps
720P@30fps
Support CVBS input
720P@30fps
Support CVBS input



Audio Input1-ch, RCA
Audio
Compression
G.711U
Video/Audio Output
VGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
HDMI Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output1-ch, RCA
Synchronous
Playback
HD:2-ch
SD:4-ch
HD:4-ch
SD:8-ch
Live view
display
HDMI/VGA: 1/4/6/8/9HDMI/VGA: 1/4/6/8/9/16
Two-way Audio1-ch, RCA
Network
Incoming
Bandwidth
16Mbps (Up to 24Mbps after all analog channel conversion)32Mbps (Up to 40Mbps after all analog channel conversion)
Outgoing Bandwidth48Mbps64Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Browser
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Encoding
Recording
Resolution
5MP Lite/4MP Lite/1080P/720P/CIF5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF
Main stream:Sub stream:Main stream:Sub stream:
5MP Lite@12fpsD1@12fps5MP Lite@6fpsD1@6fps
Recording4MP Lite@15fpsD1@15fps4MP Lite@8fpsD1@8fps
Frame Rate1080P@15fpsD1@15fps1080P Lite@12fpsD1@12fps
720P@25fpsD1@25fps720P@12fpsD1@12fps
Audio Sample
Rate
8KHz,16 bit per channel
Audio Bit Rate64Kbps per channel
Decoding
CapabilityAnalog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x
1080P@15
IP: 1 x 4MP@30, 2 x 1080P@30
Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite
@12fps
IP: 1 x 4MP@30, 2 x 1080P@30
Hard Disk
SATA1 SATA interface
CapacityUp to 8TB for each HDD
(The maximum HDD capacity varies with environment temperature)
General AlarmMotion detection
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full,
Recording/Snapshot Abnormal
External Interface
Network
Interface
1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel: 2 x USB2.0
General
Power Supply12V DC
Power Consumption: ≤ 8 W( without HDD )
Working
Environment
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×
D×H)
260mm ×226mm× 47mm (10.2″ × 8.9″×1.8″)
Weight
( without HDD )
≤1.1 Kg ( 2.42lb )
CertificationUL
CE
FCC
RoHS
WEEE



Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264 – Diagram / Dimensions:

Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264 - Dimensions | Home-CCTV

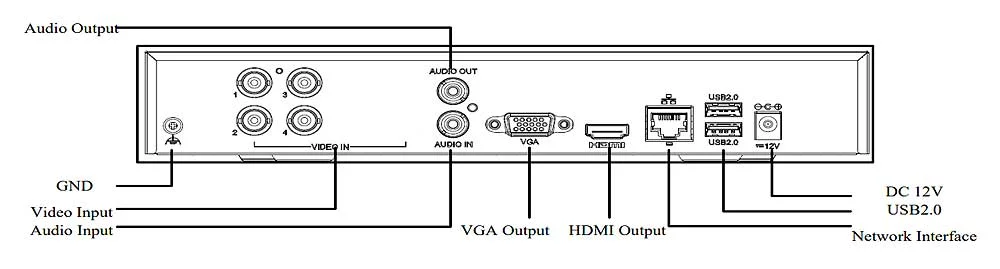

Uniview 5MP 4 Channel DVR Rear Panel Overview :

Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264 - Rear Panel | Home-CCTV

Weight1.1 kg
Dimensions26 × 22.6 × 4.7 cm
Recorder Channel

4 Channel

Recorder Resolution

5MP

Recorder Type

DVR

Brand

Uniview

Reviews

There are no reviews yet.

Be the first to review “Uniview 5MP 4 Channel DVR Supports 1-SATA AOC XVR H.265/H.264”

CCTV DVR Recorders info

The Home CCTV range of DVR recorders (Digital Video Recorder) covers all CCTV needs,
from standard 2mp 1080P DVR to mid range 5MP DVR up to the High resolution 8MP 4K range of DVR. The DVR recorders process and record CCTV video signal from analogue CCTV cameras via coaxial type cable often called CCTV shotgun cable as its usually a two core CCTV cable with video on one side and power on the other.
Choose the CCTV DVR depending on the amount of CCTV cameras you will want to run :-
# 4 Channel CCTV DVR for 1 to 4 CCTV cameras,
# 8 Channel CCTV DVR for 5 to 8 CCTV cameras,
# 16 Channel CCTV DVR for 9 to 16 CCTV cameras
or the largest is a 32 Channel CCTV DVR for 17 to 32 CCTV cameras.
