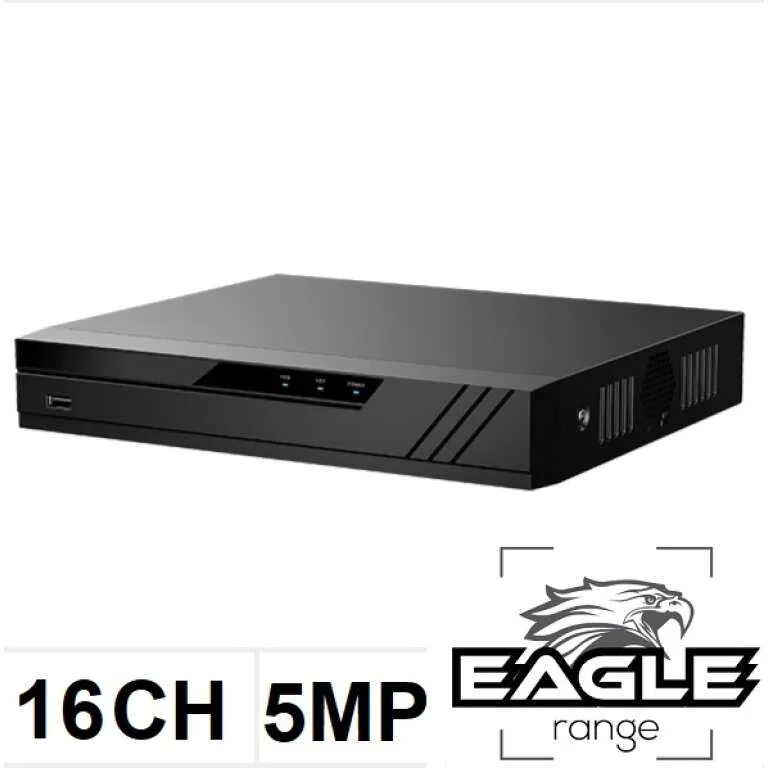

OYN-X Eagle 5MP 16 Channel CCTV DVR Penta-Brid AoC EAGLE-5MP-16BB

£159.99 Inc VAT

Availability: 50 in stock

Brand: Oyn-x Eagle

MPN: EAGLE-5MP-16BB

Budget HDD
Surveillance HDD
Product total
Options total
Grand total
SKU: EAGLE-5MP-16BB Categories: , , , Tags: , , , ,
Share this product

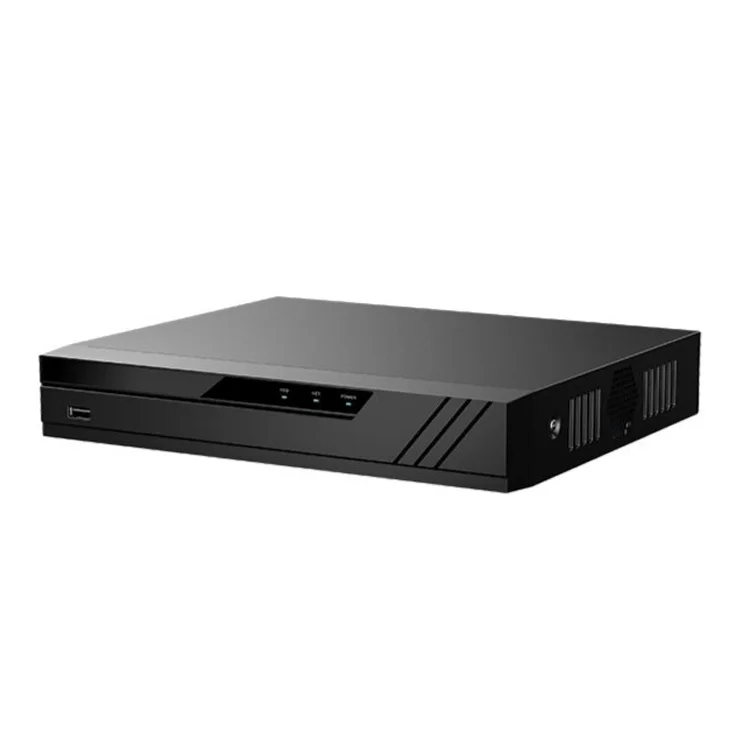

OYN-X Eagle 16 Channel 5MP Lite Penta-Brid DVR

Code: EAGLE-5MP-16BB

The Eagle Lite Series offers a great solution for users facing budget constraints who require both high cost performance and quality.

This recorder offers an Intelligent Video System (IVS); Face Detection which allows you to search or identify individuals,

and Smart Search which helps you detect motion during a short period when a clip is played back as well as AoC audio over coax features.

Key Features:

  • Supports 5MP HDCVI, AHD, TVI and CVBS Cameras
  • 5MP Recording
  • 16 Channel Playback
  • Backup via USB.

Specifications:

  • Channels – 16
  • HDD Size – None
  • Colour – Black
  • Video Input – 16CH
  • Record Mode – Manual, Schedule, MD, Alarm, Stop
  • Audio Input – RCA x 1
  • Audio Output – RCA x 1
  • Network Interface – 1 RJ-45 Port (100M)
  • USB – 2 x 2.0
  • Power – DC12V/ 1.5A
  • Dimensions – 260 x 236 x 48mm.
Weight 0.00000000 kg

Reviews

There are no reviews yet.

Be the first to review “OYN-X Eagle 5MP 16 Channel CCTV DVR Penta-Brid AoC EAGLE-5MP-16BB”

CCTV DVR Recorders info

The Home CCTV range of DVR recorders (Digital Video Recorder) covers all CCTV needs,
from standard 2mp 1080P DVR to mid range 5MP DVR up to the High resolution 8MP 4K range of DVR. The DVR recorders process and record CCTV video signal from analogue CCTV cameras via coaxial type cable often called CCTV shotgun cable as its usually a two core CCTV cable with video on one side and power on the other.
Choose the CCTV DVR depending on the amount of CCTV cameras you will want to run :-
# 4 Channel CCTV DVR for 1 to 4 CCTV cameras,
# 8 Channel CCTV DVR for 5 to 8 CCTV cameras,
# 16 Channel CCTV DVR for 9 to 16 CCTV cameras
or the largest is a 32 Channel CCTV DVR for 17 to 32 CCTV cameras.
