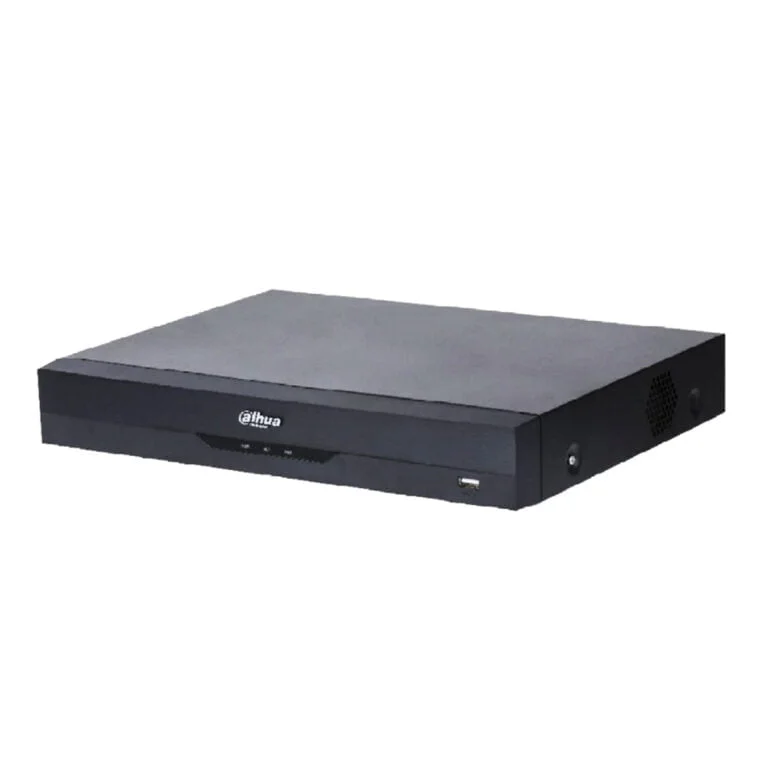

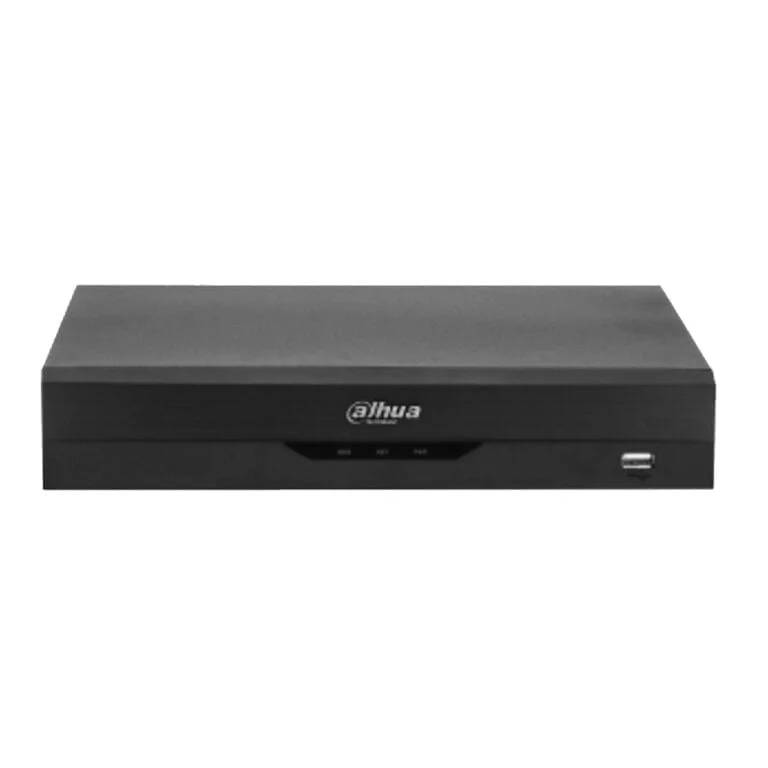

Dahua DVR 4 Channel 5MP Penta-brid 5M-N/1080P Compact 1U 1HDD WizSense Digital Video Recorder

Code: DH-XVR5104HS-I3

  • H.265+/H.265 dual-stream video compression.
  • Supports Full-channel AI-Coding.
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
  • Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth.
  • Up to 2 channels video stream (analog channel) Perimeter Protection.
  • Up to 4 channels video stream (analog channel) SMD Plus.
  • Up to 1 channels video stream (analog channel) human face recognition.
  • IoT & POS functionalities.

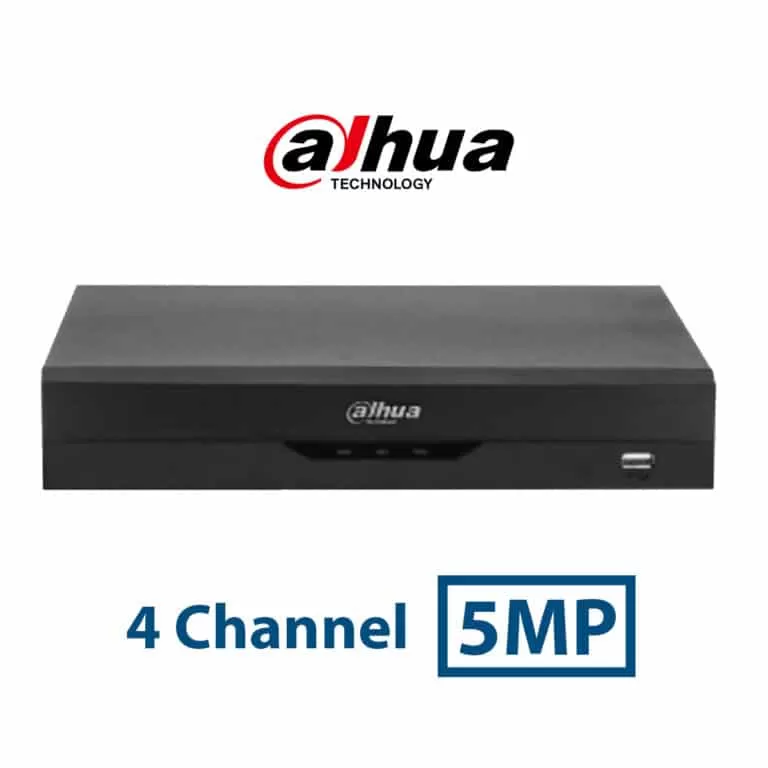

dahua 4 channel 5mp dvr

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. Overall best DVR in this range.


Dahua 4 channel 5mp dvr Dahua 4 channel 5mp dvr

Dahua DVR System

Main ProcessorIndustrial-grade processor
Operating SystemEmbedded Linux
Operating InterfaceWeb; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)Advanced Model : 1 channel, 10 IVS for each channel
General Model : 2 channels, 10 IVS for each channel
Face Detection in Dahua DVR
Face AttributesGender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels)1 channel, (up to 8 face images/s)

Face Recognition

Face Database CapacityUp to 10 face databases and 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels)1 channel

SMD Plus

SMD Plus by Recorder4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
IP Camera InputUp to 6 channels of IPC access

2 IP channels by default + 4 channels (analog channels are converted to IP channels)

incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps

*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding CapacityMain stream: All channel 5M-N (1 fps–10 fps);

4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/

D1/CIF (1 fps–25/30 fps)

Sub stream: D1/CIF (1 fps–15fps)

Video Bit Rate32 kbps–6144 kbps
Audio Sampling8 kHz, 16 bit
Audio Bit Rate64 kbps
Video Output1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen DisplayWhen IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera AccessONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Compression Standard
Video CompressionAI Coding; H.265+; H.265; H.264+; H.264
Audio CompressionG.711a; G.711u; PCM
Mobile Phone AccessiOS; Android
InteroperabilityONVIF 21.06; CGI Conformant
IE9 or later
Network ModeSingle-address mode
Recording Playback
Record ModeGeneral, motion detection; intelligent; alarm; POS
Recording Playback1/4
Backup MethodUSB device and network
Playback ModeInstant playback, general playback, event playback, tag playback, smart playback (face and motion detection)


General AlarmMotion detection, video loss, tampering
Anomaly AlarmNo disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent AlarmFace detection, face recognition, perimeter protection
Alarm LinkageRecord, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

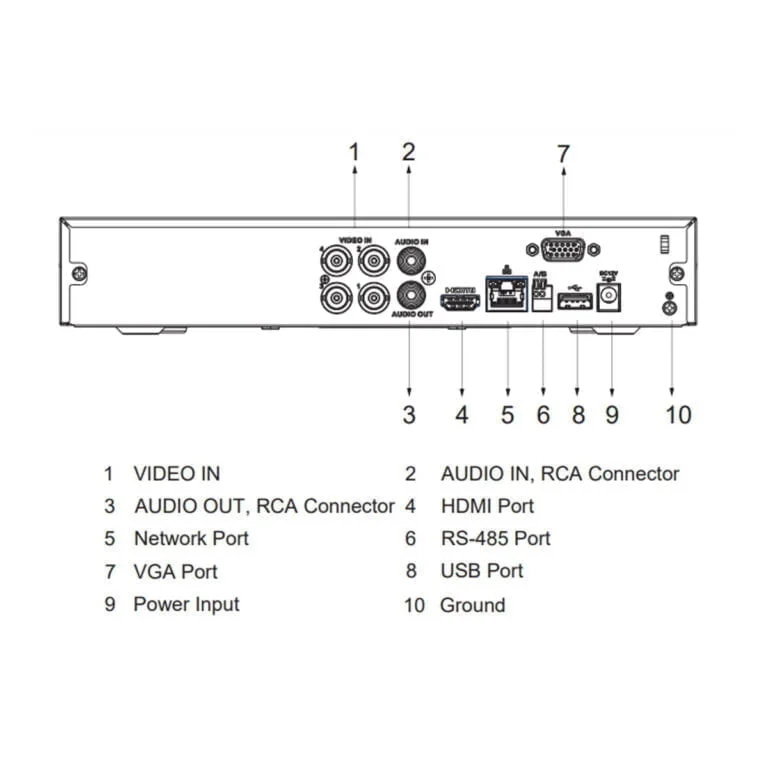

Audio Input1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output1-channel RCA
Two-way TalkYes (share the same audio input with the first channel)
HDD Interface1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-4851 port, for PTZ control
USB2 USB ports (USB 2.0)
Network Port1 (10/100 Mbps Ethernet port, RJ-45)


Power Supply12 VDC, 1.5 A
Power Consumption<4 W
Net Weight1.0 kg (2.20 lb)
Gross Weight1.4 kg (3.08 lb)

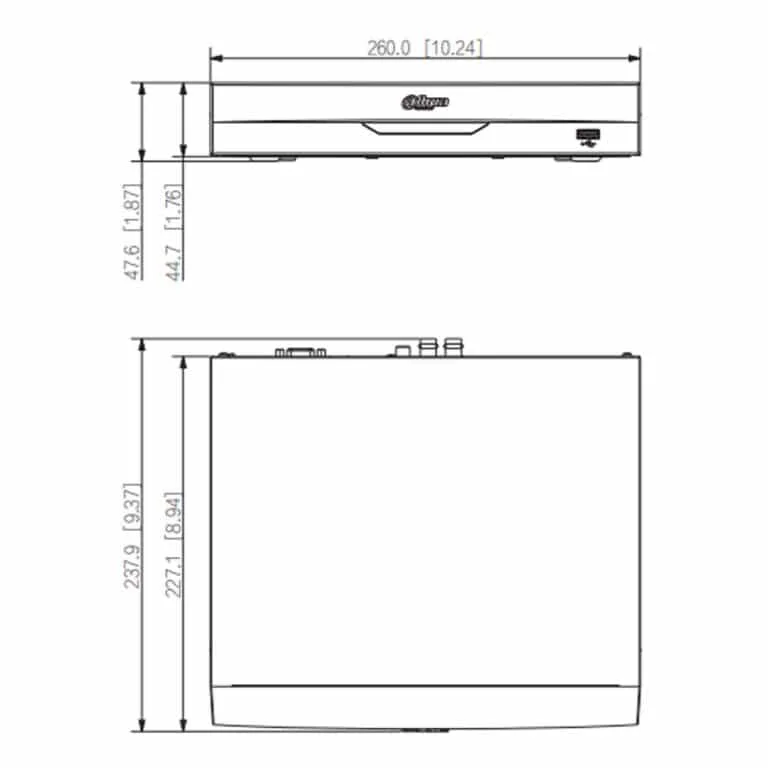

Product Dimensions260.0 mm × 237.9 mm × 47.6 mm (10.24” × 9.37” × 1.87”) (W × D × H)
Packaging Dimensions333.0 mm × 315.0 mm × 89.0 mm (13.11″ × 12.40 × 3.50″) (W× D × H)
Operating Temperature–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity0%–90% (RH)
CertificationsFCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Recorder Channel

4 Channel

Recorder Resolution


Recorder Type





There are no reviews yet.

Be the first to review “Dahua DVR 4 Channel 5MP WizSense Digital Video Recorder”

CCTV DVR Recorders info

The Home CCTV range of DVR recorders (Digital Video Recorder) covers all CCTV needs,
from standard 2mp 1080P DVR to mid range 5MP DVR up to the High resolution 8MP 4K range of DVR. The DVR recorders process and record CCTV video signal from analogue CCTV cameras via coaxial type cable often called CCTV shotgun cable as its usually a two core CCTV cable with video on one side and power on the other.
Choose the CCTV DVR depending on the amount of CCTV cameras you will want to run :-
# 4 Channel CCTV DVR for 1 to 4 CCTV cameras,
# 8 Channel CCTV DVR for 5 to 8 CCTV cameras,
# 16 Channel CCTV DVR for 9 to 16 CCTV cameras
or the largest is a 32 Channel CCTV DVR for 17 to 32 CCTV cameras.
