Dahua NVR 8 Channel CCTV 8 PoE ports WizSense Network Video Recorder DHI-NVR2108HS-8P-I

Login for price

MPN: DHI-NVR2108HS-8P-I SKU: DHI-NVR2108HS-8P-I Categories: , , , Tags: , , , , ,
Share this product

Dahua NVR 8 Channel POE Compact 1U 8PoE WizSense Network Video Recorder

Code: DHI-NVR2108HS-8P-I

  • New 4.0 user interface
  • Remote surveillance, live view and video play on mobile phone App
  • Max. decoding capability: 4 × 1080p@30fps. Supports adaptive decoding
  • Supports mainstream cameras of ONVIF and RTSP protocols
  • H.264/.H265/Smart H.264+/Smart H.265+/MJPEG, H.265 auto switch
  • 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K; and non-simultaneous video output is also supported, the maximum resolution is 1080p
  • 1-channel face detection and recognition (AI by NVR); or 2-channel perimeter detection (AI by NVR); or 4-channel SMD (AI by NVR); up to 10 face databases and 5,000 face images
  • Security baseline 2.1

dahua 8 channel nvr

Specification:

Dahua NVR 8 channel Dahua NVR 8 channel

System

Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web/operating in local GUI

Video

Access Channel 8 channels
Network Bandwidth 200 Mbps for access, 200 Mbps for storage and 100 Mbps for forwarding
Resolution 12M/8M/5M/4M/3M/2M/720p/D1
Decoding Capability AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps

AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

Video Output 1 VGA/1 HDMI simultaneous video output by default, the maximum resolution of HDMI is 4K
Multi-screen Display 1/4/8/9
Third Party Camera Access Onvif, RTSP

Compression

Video H.264/.H265/Smart H.264+/Smart H.265+/MJPEG
Audio PCM/G711A/G711U/G26/AAC

Network

Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS
Mobile Phone Access Android, iOS
Interoperability ONVIF (profile T/profile S/profile G), CGI, SDK
Browser Chrome, IE9 or above, Firefox

Record Playback

Multi-channel Playback Up to 8 channels playback
Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage Local HDD and network
Backup USB device
Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame

2. Full screen, backup (cut/file), partially enlarge, audio on/off

SMD Plus

Performance 4 channels
AI Search Search by target classification (human, vehicle)

Face Recognition in Dahua NVR

Performance Max 8 face pictures/sec processing
1 channel video stream face recognition
Stranger Mode Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually
AI Search Up to 8 target face images search at same time, similarity threshold can be set for each target face image
Database Management Up to 10 face databases with 5,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries ®ions and state can be added to each face picture
Database Application Each database can be applied to video channels independently
Trigger Events Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
Alarm Linkage Video recording, snapshot, log, preset, tour

Perimeter Protection

Performance 2 channels
Object classification Human/Vehicle secondary recognition for tripwire and intrusion
AI Search Search by target classification (human, vehicle)
Alarm system in Dahua NVR
General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage Video recording, snapshot, log, preset, tour

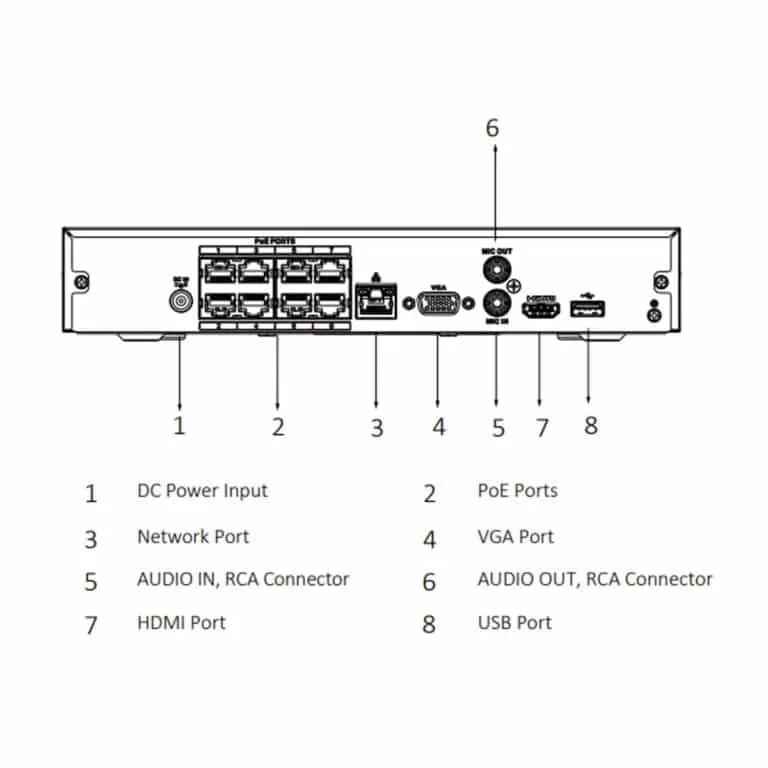

External Port

HDD 1 SATA port, up to 8 TB. The maximum HDD capacity varies with environment temperature
USB 1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI 1
VGA 1
Network 1 RJ–45 port (10/100/1000 Mbps), 8 RJ–45 ports with PoE power supply (10/100 Mbps)
RCA Input 1
RCA Output 1

General Parameter

Power Supply DC 53V, 1.8A
Power Consumption Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 72W, the maximum output power of a single port is 25.5W
Net Weight 0.92 kg (2.03 lb)
Gross weight 2.07 kg (4.56 lb)

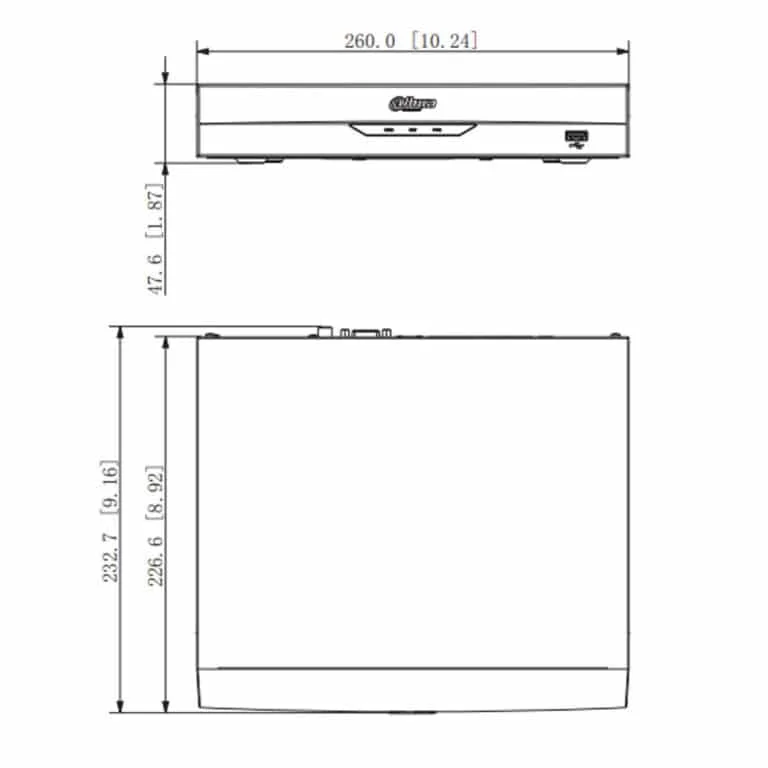

Product Dimensions 260mm × 232.7mm × 47.6mm (W × L × H)
10.24 inch × 9.16 inch × 8.77 inch (W × L × H)
Package Dimensions 117 mm × 373 mm × 307 mm (W × L × H)
4.61 inch × 14.69 inch × 12.09 inch (W × L × H)
Operating Temperature -10°C to +55°C (+14°F to +113°F)
Storage Temperature 0°C to +40°C (+32°F to +104°F)
Operating Humidity 10%–93%
Storage Humidity 30%–85%
Operating Altitude 3000 m (9843 ft)
Installation Desktop mounting
Certifications CE/FCC

Is Dahua NVR a good brand?

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

How do I connect to Dahua NVR?

This AI Dahua NVR (network video recorder) is a highly cost-effective economical product, providing functions such as local live view, multi-screen display, real-time storage on local HDD, fast operation by mouse, and remote management and control. This product is suitable for face detection and recognition at entrances/exits, and perimeter protection of people and vehicles.

Weight 0.00000000 kg

Reviews

There are no reviews yet.

Be the first to review “Dahua NVR 8 Channel CCTV 8 PoE ports WizSense Network Video Recorder DHI-NVR2108HS-8P-I”

CCTV NVR Recorders info
Home CCTV offer a great range of CCTV NVR recorders (Network Video Recorder) which will cover just about all your IP CCTV requirements, from the full HD 2mp 1080P NVR recorders to our mid range 5MP NVR recorders right up to the Ultra HD High resolution 8MP 4K range of CCTV NVR. These IP CCTV NVR network recorders will process and record the CCTV video signal from the connected IP CCTV Cameras via the Network or Ethernet type cable often called Cat5e or Cat6 network cable which is the same as is used in computer networks with 4 pairs of wires carrying the CCTV video signal and power using RJ45 connections.
Select the CCTV IP NVR you require depending on the number of IP CCTV cameras you will want to install :-
# 4 Channel CCTV NVR for 1 to 4 IP CCTV camera systems,
# 8 Channel CCTV NVR for 5 to 8 IP CCTV camera systems,
# 16 Channel CCTV NVR for 9 to 16 IP CCTV camera systems or the largest are
# 32 Channel CCTV NVR for 17 to 32 IP CCTV camera systems.
