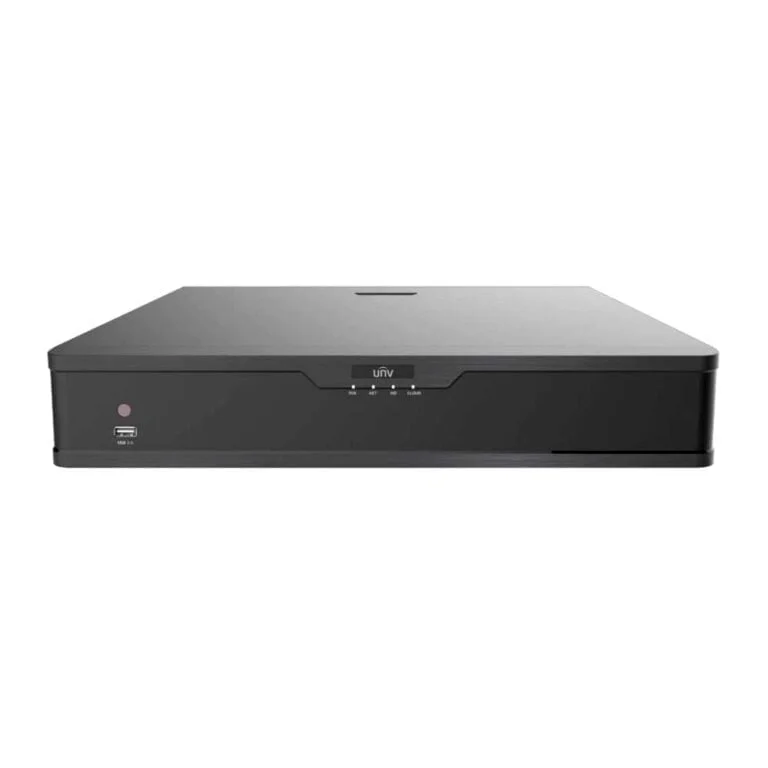

Uniview 4K 16 Channel NVR Ultra HD POE 4-SATA H.265/H.264 Network Video Recorder
Code: NVR304-16S-P16
Package contains:
- 1X Uniview 4K 16 Channel NVR Ultra HD POE 4-SATA H.265/H.264 NVR304-16S-P16
Note: The NVR (Network Video Recorder) comes with no Hard Drive – FOR HDD (Hard Drive) Click this link
Or simply select HDD from the above Select HDD option.
Key Features:
- Support Ultra265/H.265/H.264 video formats
- 16 channel input
- Plug & Play with 16 independent PoE network interfaces
- Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support HDMI and VGA simultaneous output
- Up to 8 Megapixels resolution recording
- 4 SATA HDDs, up to 10TB for each HDD
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Specification:
Model | NVR304-16S-P16 | NVR304-32S-P16 | |
Video/Audio Input | |||
IP Video Input | 16 Channel | 32 Channel | |
Two-way Audio Input | 1-ch, RCA | ||
Network | |||
Incoming Bandwidth | 160Mbps | ||
Outgoing Bandwidth | 64Mbps | ||
Remote Users | 128 | ||
Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP | ||
Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||
Video/Audio Output | |||
HDMI/VGA Output | HDMI: 4K (3840×2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60, 1024X768@60 VGA: 1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60 | ||
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Audio Output | 1-ch, RCA | ||
Audio Compression | G.711A, G.711U | ||
Synchronous Playback | 16-ch | ||
Liveview display | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | |
Corridor Mode Screen | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | |
Decoding | |||
Decoding format | Ultra 265/H.265/H.264 | ||
Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Capability | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P @30, 16 x 720P@30 | 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30, 32 x D1@30 | |
Hard Disk | |||
SATA | 4 SATA interfaces | ||
Capacity | Up to 10TB for each disk | ||
Smart | |||
VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) | ||
VCA Search | Behavior Search | ||
People counting | People Flow Counting, Crowd Density Monitoring | ||
Smart Intrusion Prevention (SIP), UMD by Camera | Total 8-ch | ||
General Alarm | |||
General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection | ||
Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||
External Interface | |||
Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | ||
USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0 | ||
RS232 | NA | ||
RS485 | 1 | ||
Alarm In | 16-ch | ||
Alarm Out | 4-ch | ||
PoE | |||
Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
Max Power | Max 30W for single port Max 150W in total | ||
Supported Standard | IEEE 802.3af/at | ||
General | |||
Power Supply | 100 ~ 240 V AC Power Consumption: ≤15W(without HDD) | ||
Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||
Dimensions (W×D×H) | 400mm ×362mm × 74mm (15.7″ × 14.2″ ×2.9″) | ||
Weight (without HDD) | ≤5kg (11.02lb) | ||
Certification | |||
Certification | CE, FCC, UL, RoHS, WEEE | ||
CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||
FCC | Part15 Subpart B, ANSI C63.4 |

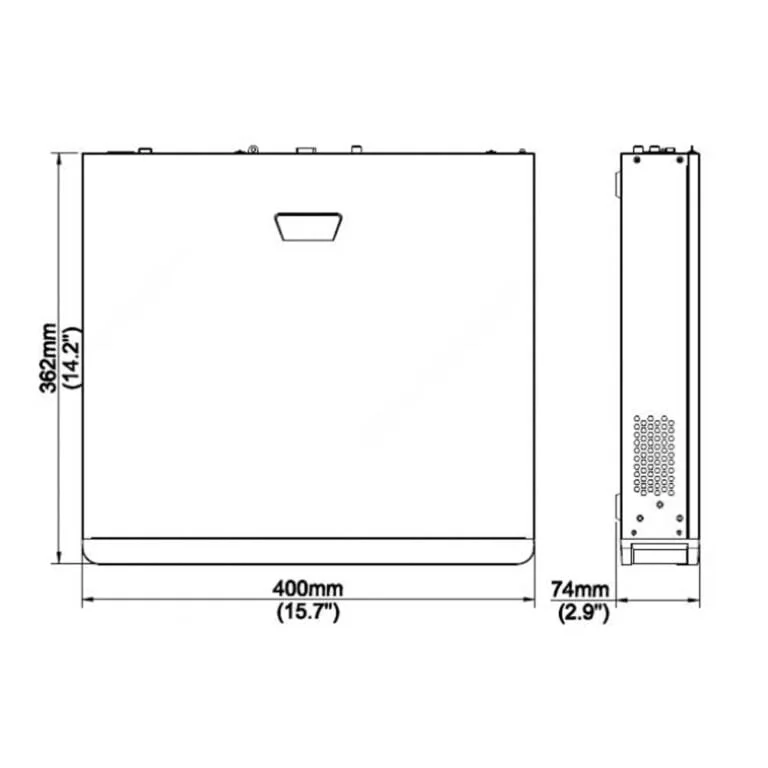

Uniview 4K 16 Channel NVR Ultra HD POE 4-SATA – Diagram / Dimensions:

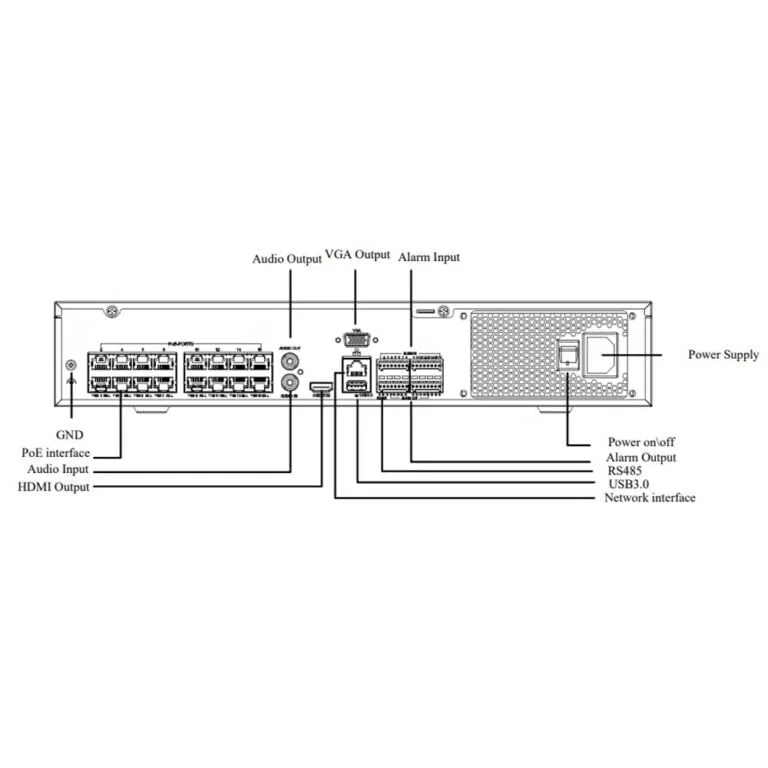

Uniview 4K 16 Channel NVR Ultra HD POE 4-SATA H.265/H.264 Rear Panel Overview :
