OYN-X Eagle CCTV Kits 16 Channel DVR – 5MP IR Turret Camera – Penta-Brid AoC

£190.00 Inc VAT

Availability: 50 in stock

Brand: Oyn-x Eagle

MPN: EAGLE-5MP-IR-16BB-KIT

Oyn-x Eagle 5MP IR Turret CCTV Camera white Eagle-5-tur2-fw | Home-CCTV
Eagle 5MP IR Turret (White)
Oyn-x Eagle 5MP IR Turret CCTV Camera grey Eagle-5-tur2-fg | Home-CCTV
Eagle 5MP IR Turret (Grey)
Budget HDD
Surveillance HDD
Product total
Options total
Grand total
MPN: EAGLE-5MP-IR-16BB-KIT SKU: EAGLE-5MP-IR-16BB-KIT Categories: , , Tags: , , , ,
Share this product

OYN-X Eagle CCTV Kits 16 Channel DVR – 5MP IR Turret Camera – Penta-Brid (AoC)

Code: EAGLE-5MP-IR-16BB-KIT

The Eagle 5MP range of DVR coupled with full HD Eagle 5MP Fixed Lens Starlight HDCVI IR Turret Camera

Full colour at night white LED cameras offer incredible and unbeatable value and quality.

The Eagle Oyn-x DVR offers all of the features of a high end system such as audio over coax, remote viewing, notifications via a smartphone app.
HD recording and playback, smart Motion detection, analytics and alerts to name but a few features.

Starting price is for the CCTV DVR.
Select the size HDD you need from the right.
The cameras (5MP IR Turret CCTV Camera) in either white or grey.
This Oyn-x Eagle CCTV Kits (Home CCTV Systems) will run a max total of 16 cameras.
Select the amount and type of cameras you require.
You will receive a pre made 20m cable for each camera selected as well as the correct power supply for your selection.


10M Bnc Power Cable HEAVY DUTY Pro range - cctv cameras, cctv kits    12v 5A Power adapter with 4 way built in CCTV Kits, cctv cameras

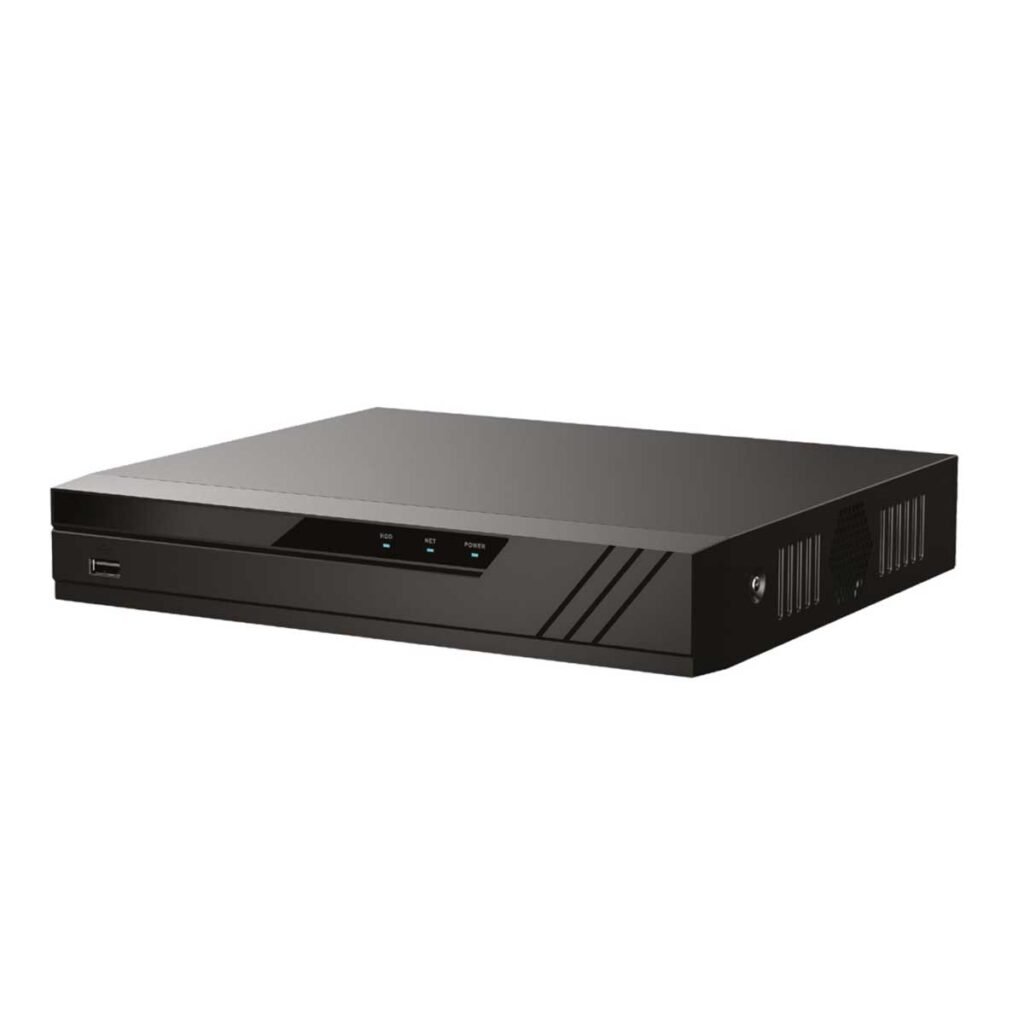

Oyn-x Eagle 16 Channel 5MP DVR CCTV Recorder:Oyn-x Eagle 5MP DVR 16 Channel EAGLE-5MP-16BB | Home-CCTV

2 Years UK manufacturers warranty on the DVR.

Free remote viewing via smartphone and online App.

The Eagle Lite Series CCTV Kits System offers a great solution for users facing budget constraints who require both high cost performance and quality.

This CCTV 16 Channel DVR Recorder offers an Intelligent Video System (IVS); Face Detection which allows you to search or identify individuals, and Smart Search which helps you detect motion during a short period when a clip is played back as well as AoC audio over coax features. Overall great CCTV Kit experience when bundled.

Key Features:

  • Supports 5MP HDCVI, AHD, TVI, IP and CVBS Camera Video inputs.
  • 5MP Recording supported CCTV Kit.
  • 16 Channel Playback.
  • Backup via USB.
  • H.265+/H.265 dual-stream video compression
  • Max 16 Channels camera inputs, each channel up to 5MP; Max 48/96Mbps Incoming Bandwidth
  • Smart Search and Intelligent Video System

Eagle 5MP 16 Channel DVR Specifications:

Channel16
HDD SizeNot included – Select required capacity up to 10TB.
Record ModeManual, Schedule, MD, Alarm, Stop
Audio Input / OutputRCA x 1
Network Interface1 RJ-45 Port (1000M)
USB1x 2.0 1x 3.0
PowerDC12V/ 1.5A
Display Interface1 HDMI ,1 VGA
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Net Weight
(without HDD)
1 – 1.1 Kg
HDCVI Camera Input5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input5MP, 4MP, 1080P@25/30, 720P@25/30fps
Playback functionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Operating condition-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
DimensionsCompact 1U, 260×236×48mm(10.2″×9.3″×1.9″)



Oyn-x Eagle 5MP HDCVI IR Turret Camera :

  •   Oyn-x Eagle 5MP IR Turret CCTV Camera white Eagle-5-tur2-fw | Home-CCTV   Oyn-x Eagle 5MP IR Turret CCTV Camera grey Eagle-5-tur2-fg | Home-CCTV
  • Select the number of OYN-X  Eagle 5MP IR Turret Cameras you require either in grey or white.

    You will receive a pre made 20m cable for each camera selected as well as the correct power supply for your selection.

  • Features:
    • 5MP High Quality Resolution
    • 2.8mm Fixed Lens
    • Up to 30m IR Range
    • IP67 Rated
    • 16:9 Ratio

Camera Specification:

ColourGrey/White
Lens TypeFixed
Lens2.8mm
Effective Pixels2880 x 1620
Resolution5MP
Image Sensor1/2.7″ CMOS
Ingress ProtectionIP67
Camera Power SupplyDC12V
Dimensions109.9 x 88.1mm
Weight0.00000000 kg
CCTV Kits channels

16 Channel

CCTV Kits Camera Resolution

5MP

CCTV Kits type

COAX Kits

Brand

Eagle

Reviews

There are no reviews yet.

Be the first to review “OYN-X Eagle CCTV Kits 16 Channel DVR – 5MP IR Turret Camera – Penta-Brid AoC”

CCTV COAX Kits info

CCTV COAX Kits to suite all needs starting with the 2mp 1080p range then the 5mp and the 4k 8mp CCTV systems.
Home CCTV stock many HD analogue CCTV Kits from leading manufacturers such as Oyn-x CCTV, Dahua, Sentry CCTV and Hilook by Hikvision. These AHD CCTV systems connect the DVR(Digital Video Recorder) to the CCTV cameras over a coax type cable with a bayonette twist fit video connection and a standard 12v power jack which runs along the same cable length to the CCTV cameras.
The CCTV resolution range runs from standard 2mp 1080P HD CCTV to the mid range 5mp CCTV systems up to the higher end 8mp 4k resolution CCTV.
When choosing the CCTV DVR its advisable to make sure you have a few CCTV camera channels more than you will be using to allow additional CCTV cameras to be added to your system if ever required. The CCTV DVR recorders start at the minimum camera connections being 4ch then 8ch, 16ch and 32ch being the most CCTV Camera connections. Bare in mind the More CCTV cameras you run and the higher the camera resolution the more HDD (Hard Disk Drive) storage space will be required for the CCTV recordings.
At Home CCTV we carry a very good range of CCTV kits to suite all needs. Home CCTV stock HD coax Kits as well as IP network CCTV systems from many different manufacturers for you to Buy CCTV Kits Online UK. Some of which are Sentry CCTV, Oyn-x, Dahua and Hiwatch by Hikvision to mention just a few.
We hold stock of CCTV kits to suite every system requirement from complete boxed 2mp 1080P 2 camera kits with everything you need including cables, CCTV Camera, Power supply and the recorder in one boxed package. Or a full bespoke CCTV Kit package with full Ultra HD 8mp 4k IP cameras and a 32ch NVR.
Whatever your CCTV Kit requirements are we have the CCTV Cameras, recorders, HDD storage and accessories to suite. We’ve Got You Covered!

CCTV COAX Kits are very popular at Home CCTV as they offer a very effective and affordable CCTV security solution. The great range of CCTV systems on offer cover every budget and include the DVR recorders, cameras and optional HDD which is required if you want the CCTV kit to be able to record the footage from the cameras. When ordering one of the CCTV coax kits; you will receive a pre made camera cable for each of the cameras chosen as well as a CCTV camera power supply. The power supplies included have splitter cables so that all of the CCTV cameras in the kit can be powered from the same transformer saving plug sockets required and making a neater installation. Coax CCTV systems are analogue but now upgraded to High definition from 2mp 1080p kits up to the ultra HD 8mp 4K systems.
