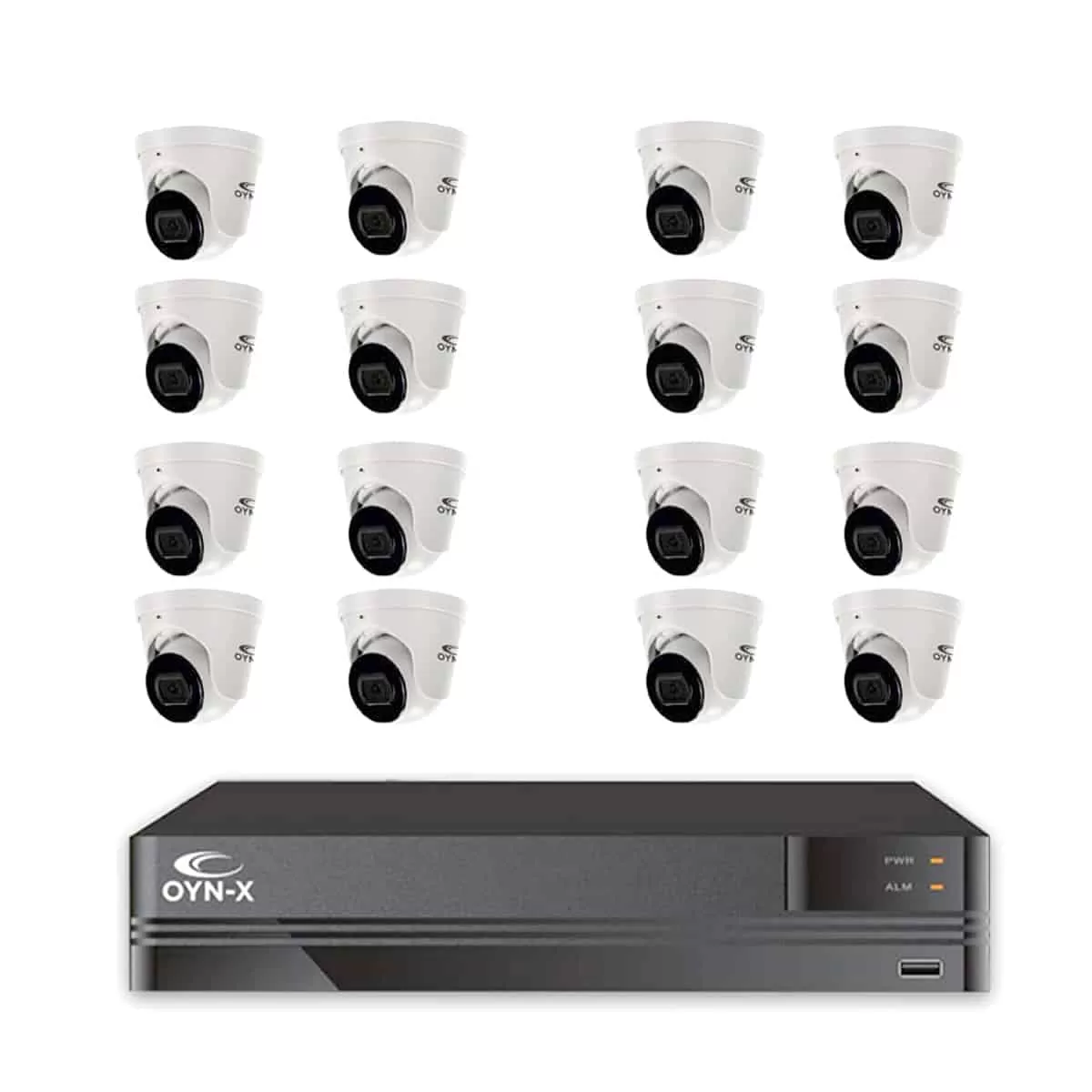

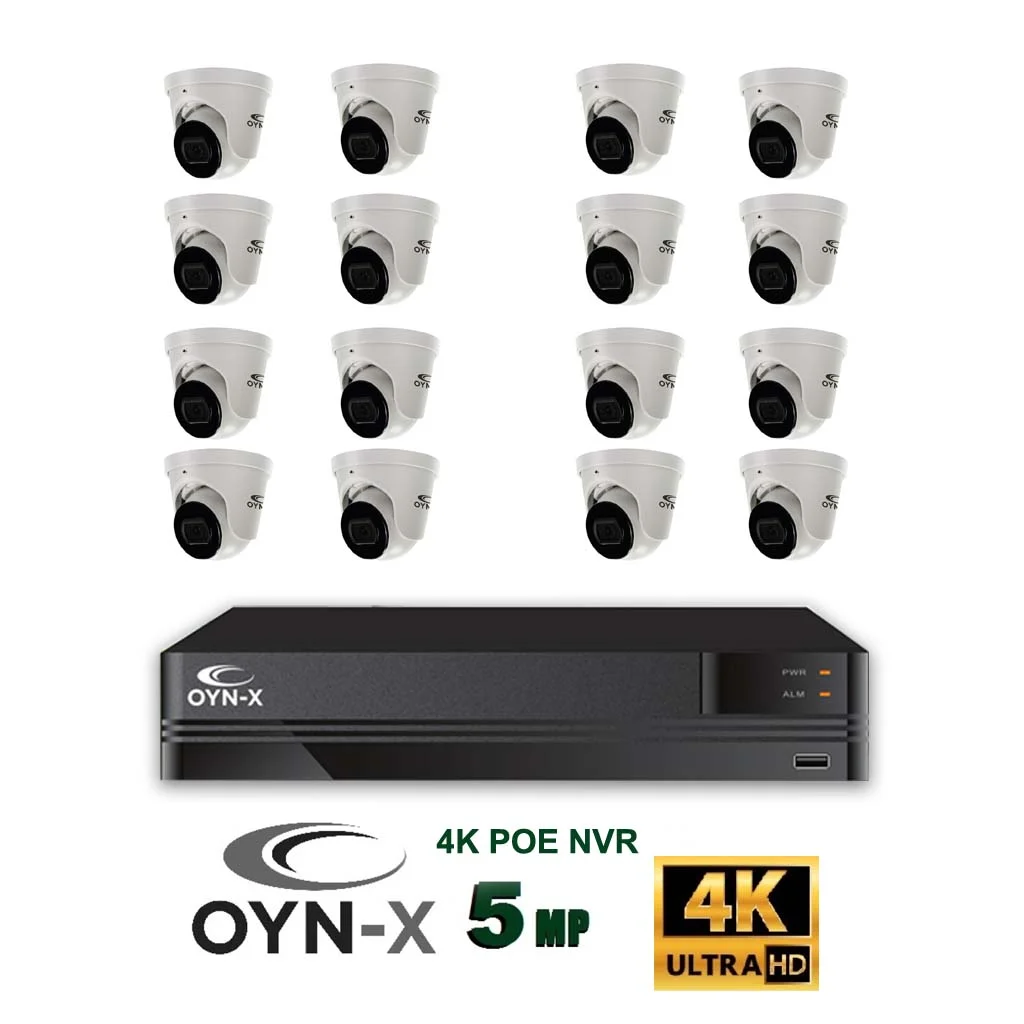

OYN-X CCTV IP Kit Kestrel – 5MP HD camera 16ch NVR IP kit

£219.99 Inc VAT

Availability: 100 in stock

Brand: Oyn-x


Onyx 5MP White
Budget HDD
Surveillance HDD
Product total
Options total
Grand total
SKU: KESTRELIPKIT-16CH Categories: , , Tags: , , , ,
Share this product


Brand: Oyn-x


Starting price is for the NVR on its own.
Just Select the size HDD you need from the right.
The cameras in white colour.
This Oyn-x IP CCTV Kit will run a max total of 16 cameras.


You will receive a pre made 20m Network cable for each camera selected.

20M Network Cable HEAVY DUTY Pro range - cctv kit


The Kestrel 4K range of NVRs coupled with full HD 5MP cameras offer incredible and unbeatable value and quality.

The Kestrel Oyn-x NVRs offer all of the features of a higher priced system such as Remote viewing and notifications via a smartphone app.
HD recording and playback, Motion detection and alerts to name but a few features which makes this whole Oyn-x IP cctv kit awesome.



Support Google Drive & Dropbox Cloud storage

  • Supports IP/ 8MP 5MP 4MP 3MP 2MP cameras
  • h265+ 8MP IP Recording
  • P2P – No Port Forwarding
  • Remote Connectivity via Mobile App
  • 8 Channel Playback
  • 4 Alarm Inputs / 1 Alarm Output
  • Smart Playback Options
  • SATA X1 Up To 8TB
  • Backup via USB 2.0

The OYN-X 4-Channel 4K NVR with PoE is simple to setup and will record and store weeks of footage.

With the OYN-X 4 Channel 4K NVR you can also access the system via your smartphone or tablet device allowing you to monitor live images or review recorded footage wherever and whenever.


  • Easy installation with its on-screen setup instructions
  • Peer-to-peer (P2P) enables automatic connection to the internet – No port forwarding required
  • Camera Connections: 16 independent RJ45 sockets 10/100Mbps with PoE
  • Recording: Compression: H.265+ / H.265 / H.264 / H.264+
  • Recording & playback resolution: 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
  • Motion detection: Setup your recorder to be triggered by motion detection
  • Video analytics: Tripwire, intrusion detection, exception detection and objection detection
  • Cloud storage: Allows video and image uploaded to Google drive and Dropbox
  • Audio: 1x Channel, RCA two way talk and 1x channel RCA output
  • Monitor Outputs: HDMI 1 Channel 4K (3840×2160) / 30Hz and VGA 1 Channel 1920×1080 / 60Hz
  • Remote Monitoring: Downloadable App for Apple and Android devices to allow remote access for recordings and live streaming
  • Scheduled recording: set specific times to record for holidays, away for weekends, whilst at work
  • Dimensions (WxDxH): 250x230x45mm
  • Select the number of OYN-X full 5MP HD cameras you require up to 16.Choose the fixed 3.6mm Fixed lens at £49.99 per camera inc Network cable
    Only in white

    Camera Features:

    • 5MP ( 2592 × 1944 ) H.265 coding
    • Max resolution: 2592 × 1944
    • IR cut filter with auto switch
    • 3D DNR, WDR, HLC, BLC, defog
    • 30m IR night view distance
    • IP66 ingress protection
    • Supports mobile surveillance by smart phones with iOS or Android OS
    More Information
    Colour White
    Lens Type Fixed
    Lens 3.6mm
    Effective Pixels 2592 x 1944
    Resolution 5MP
    Ingress Protection IP66
    Camera Power Supply DC12V
    Dimensions 102 x 90mm
Weight 0.00000000 kg


There are no reviews yet.

Be the first to review “OYN-X CCTV IP Kit Kestrel – 5MP HD camera 16ch NVR IP kit”

CCTV IP Kits info

IP CCTV Kits to suite all needs starting with the 2mp 1080p range then the 5mp and the 4k 8mp CCTV systems.
Home CCTV stock many IP CCTV Kits from leading manufacturers such as Oyn-x CCTV, Dahua, Sentry CCTV and Hilook by Hikvision. These IP network CCTV systems connect the NVR (Network Video Recorder) to the IP CCTV cameras over ethernet or cat5e/cat6 type cable with a RJ45 network connection which are usually POE (Power Over Ethernet) so are powered from the NVR using a single cable length to the CCTV cameras.
The CCTV resolution range runs from standard 2mp 1080P HD CCTV to the mid range 5mp CCTV systems up to the higher end 8mp 4k resolution CCTV. When choosing the IP CCTV Kits its advisable to make sure you have a few CCTV camera channels more than you will be using to allow additional CCTV cameras to be added to your system if ever required in the future. The CCTV NVR recorders start at the minimum camera connections being 4ch then 8ch, 16ch,32ch and 64ch being the most CCTV Camera connections. Bare in mind the More CCTV cameras you run and the higher the camera resolution the more HDD (Hard Disk Drive) storage space will be required for the CCTV recordings.
