Dahua Penta-brid 4-Channel 4K XVR with AI & PoC WizSense Digital Video Recorder

Dahua Penta-brid 4-Channel 4K XVR with AI & PoC WizSense Digital Video Recorder

Code: DH-XVR5104H-4KL-I3-4P

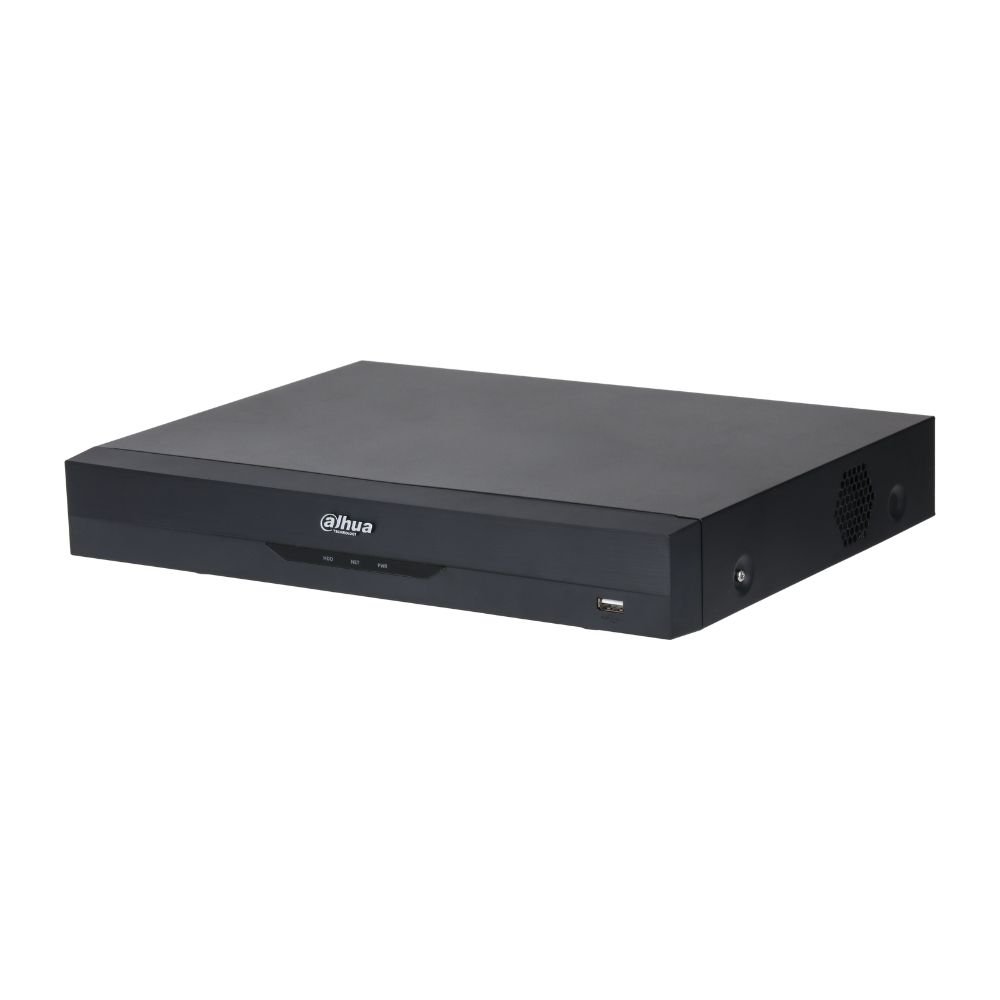

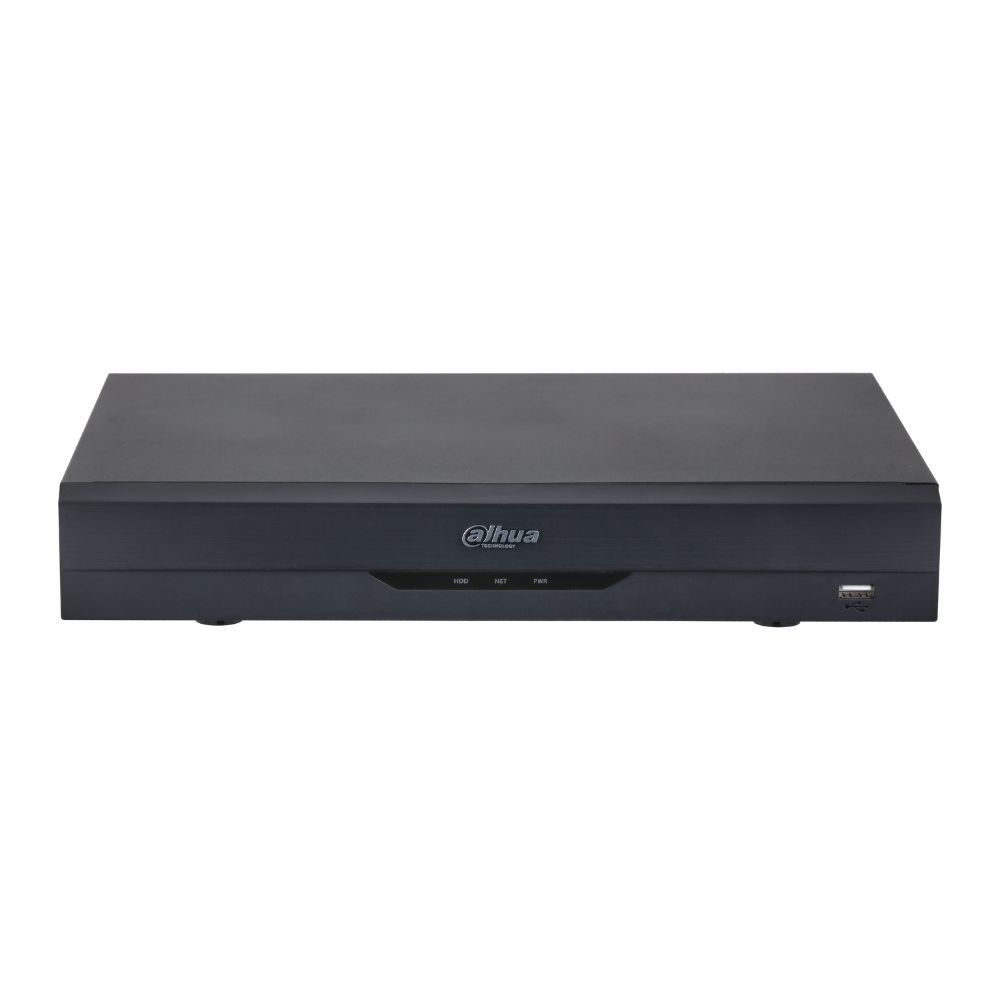

The Dahua XVR5104H-4KL-I3-4P is a compact 4-channel Penta-brid CCTV recorder designed for modern security installations requiring high-resolution recording, intelligent video analysis and flexible camera compatibility.

Part of Dahua’s WizSense range, this 1U mini XVR supports HDCVI, AHD, TVI and CVBS analogue cameras, as well as IP cameras. It can support up to 8 IP camera channels, with IP cameras up to 8MP and a total incoming bandwidth of 64Mbps.

For installations using compatible Dahua cameras, the recorder also supports Power over Coax (PoC), helping simplify installation by allowing compatible cameras to receive power through the coaxial cable.

AI-powered CCTV monitoring

The XVR5104H-4KL-I3-4P includes a range of AI-based security features designed to help identify important events while reducing unnecessary alerts.

Its 4-channel SMD Plus provides secondary filtering for people and vehicles, helping reduce false alarms caused by environmental factors such as rain, lighting changes and moving vegetation.

The recorder also supports perimeter protection, including tripwire and intrusion detection, with up to 4 channels in General Mode or 2 channels in Advanced Mode.

For compatible applications, the recorder provides face detection and face recognition, including face comparison and support for up to 10 face databases containing up to 20,000 face images.

4K recording and flexible camera support

The recorder supports high-resolution analogue camera formats, including:

• 4K HDCVI
• 4K AHD
• 4K TVI
• Up to 5MP recording
• 1080p and lower resolutions
• HDCVI, AHD, TVI and CVBS auto-detection

It also supports up to 8 IP cameras, with individual IP camera input up to 8MP.

With AI Coding, Smart H.265+ and H.265 compression, the XVR is designed to reduce storage and bandwidth requirements while maintaining useful image detail.

Ideal for CCTV upgrades

The Penta-brid design makes the XVR particularly useful when upgrading an existing CCTV system. Existing compatible analogue cameras can be retained while additional IP cameras can be introduced as required.

This makes the Dahua XVR5104H-4KL-I3-4P suitable for homes, shops, offices, small commercial premises and other installations where a flexible 4-channel recorder is required.

Key features

• 4-channel Dahua WizSense XVR
• Supports HDCVI, AHD, TVI and CVBS cameras
• Up to 8 IP camera channels
• IP camera support up to 8MP
• 4K recording support
• 4-channel SMD Plus with human and vehicle filtering
• Up to 4-channel perimeter protection
• Face detection and face recognition
• Face database capacity of up to 20,000 images
• AI Coding, Smart H.265+ and H.265 compression
• PoC AT and PoC AF camera support on all analogue channels
• 1 × SATA interface supporting HDDs up to 16TB
• HDMI output up to 3840 × 2160
• HDMI and VGA video outputs
• 1 × 10/100Mbps network port
• Remote access via iOS and Android
• ONVIF Profile T, S and G support
• USB backup
• Two-way talk support
• Compact desktop installation
• 53V DC power supply
• Dahua WizSense technology

Recording & storage

The recorder features one SATA interface supporting a hard drive of up to 16TB, subject to environmental conditions.

Recording modes include general recording, alarm, motion detection, intelligent recording and POS recording. Footage can be reviewed using instant, general, event, tag and smart playback modes.

Connectivity

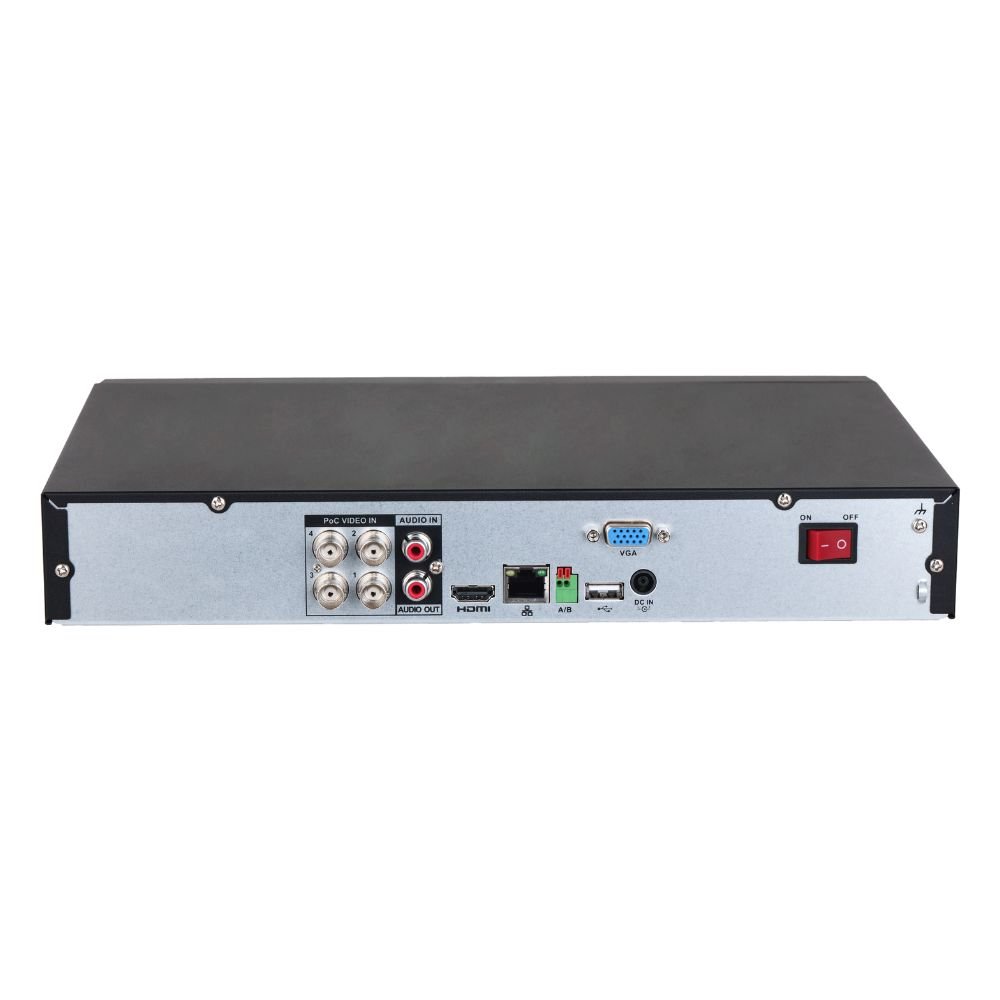

The XVR provides:

• 1 × HDMI
• 1 × VGA
• 1 × RJ45 network port
• 2 × USB 2.0
• 1 × RCA audio input
• 4 × coaxial audio inputs
• 1 × RCA audio output
• 1 × RS-485
• 4 × BNC analogue camera inputs

The recorder supports remote access through Android and iOS devices, as well as Chrome, Edge, Firefox and Safari browsers.
