Dahua Penta-brid 16-channel 4K XVR with AI WizSense Digital Video Recorder
Code: DH-XVR5216AN-4KL-I3

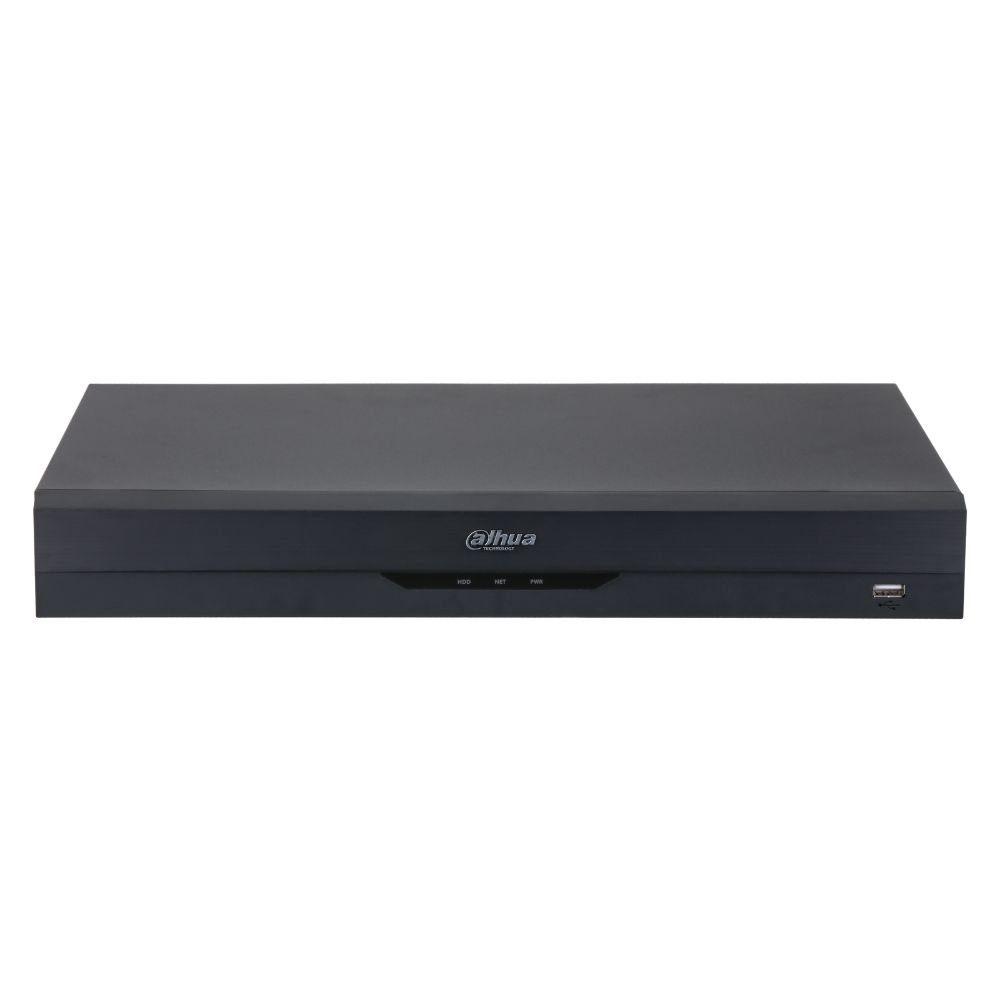

The Dahua XVR5216AN-4KL-I3 is a 16-channel Penta-brid CCTV recorder designed for larger residential, commercial and business surveillance installations.
Part of Dahua’s WizSense range, this 1U XVR supports HDCVI, AHD, TVI and CVBS cameras, as well as IP cameras. It provides 16 physical BNC inputs and can be expanded to support up to 32 IP camera channels, with compatible IP cameras up to 8MP.
With 4K recording capability, 16-channel SMD Plus, perimeter protection, face recognition and AI Coding, the XVR provides a flexible platform for installations requiring higher channel capacity and intelligent video features.
16-channel 4K CCTV recording
The XVR5216AN-4KL-I3 features 16 BNC analogue camera inputs with automatic support for HDCVI, AHD, TVI and CVBS formats.
Supported resolutions include:
- 4K HDCVI
- 4K AHD
- 4K TVI
- Up to 5MP
- 4MP
- 3MP
- 1080p
- 720p
The recorder supports 4K encoding at up to 15fps and 5MP encoding at up to 25fps, depending on the channel and recording configuration.
This makes it suitable for larger CCTV systems where multiple high-resolution cameras need to be managed from a single recorder.
Up to 32 IP camera channels
In addition to its 16 analogue inputs, the XVR supports up to 32 IP camera channels.
It provides:
- 16 IP channels by default
- Up to 16 additional IP channels through IP extension
- IP camera support up to 8MP
- 128Mbps incoming bandwidth
- 128Mbps recording bandwidth
- 128Mbps outgoing bandwidth
This provides additional flexibility for installations combining existing coaxial CCTV cameras with newer IP cameras.
AI-powered human and vehicle detection
The recorder provides 16-channel SMD Plus, using secondary filtering to distinguish human and vehicle targets and help reduce unwanted alarms caused by environmental changes such as rain, lighting conditions and moving vegetation.
SMD by camera is also supported on up to 32 channels.
For larger surveillance installations, this provides a practical way to focus attention on relevant movement rather than every motion event detected by a camera.
Perimeter protection
The XVR supports AI-powered perimeter protection for applications requiring virtual boundaries.
Supported functions include:
- Tripwire
- Intrusion detection
- Up to 8 channels in General Mode
- Up to 2 channels in Advanced Mode
- Up to 10 IVS rules per channel
These features can be used to monitor defined areas and generate alerts when configured rules are triggered.
Face detection and recognition
The XVR5216AN-4KL-I3 supports face detection and face recognition on 2 channels.
Its face recognition system supports up to:
- 10 face databases
- 20,000 face images
- 6 face attributes
Face detection supports up to 12 face images per second on each supported channel.
QuickPick 2.0 AI
QuickPick 2.0 AI is available on 2 channels, providing intelligent search functionality for locating relevant people or vehicle events within recorded footage.
This can be useful when reviewing footage from larger multi-camera CCTV systems.
Dual HDD storage
One of the key differences between this model and smaller XVRs in the range is its two SATA drive bays.
Each HDD can support up to 16TB, giving the recorder a total supported capacity of up to 32TB across two drives, subject to the specified environmental limitations.
The recorder also supports Disk Group functionality.
Hard drives are not included unless specifically selected as an option.
Efficient video compression
The XVR supports:
- AI Coding
- Smart H.265+
- H.265
- Smart H.264+
- H.264
These compression technologies are designed to reduce storage and network bandwidth requirements while maintaining useful video detail.
The recorder also supports dual-stream video.
Playback and remote monitoring
The XVR supports up to 16-channel playback, making it suitable for reviewing footage from larger CCTV installations.
Playback options include:
- Instant playback
- General playback
- Event playback
- Tag playback
- Smart playback
Users can also access the system remotely through compatible Android and iOS devices.
Browser access is supported through Chrome, Edge, Firefox and Safari.
ONVIF Profile T, Profile S and Profile G support provides interoperability with compatible third-party network cameras.
Key Features
- 16-channel Dahua WizSense XVR
- Penta-brid CCTV recorder
- 16 × BNC analogue camera inputs
- Supports HDCVI, AHD, TVI and CVBS
- Up to 4K @ 15fps encoding
- Up to 5MP @ 25fps encoding
- Up to 32 IP camera channels
- Supports IP cameras up to 8MP
- 128Mbps incoming bandwidth
- 128Mbps recording bandwidth
- 128Mbps outgoing bandwidth
- 16-channel SMD Plus
- SMD by camera up to 32 channels
- Human and vehicle filtering
- Up to 8-channel perimeter protection
- 2-channel face recognition
- 2-channel QuickPick 2.0
- 1-channel EPTZ
- 1-channel privacy protection
- 16-channel AI Video Quality Analytics
- AI Coding and Smart H.265+
- 2 × SATA HDD bays
- Up to 16TB per HDD
- Up to 32TB total supported HDD capacity
- Disk Group support
- HDMI output up to 4K
- VGA output
- Gigabit Ethernet
- Android and iOS remote access
- ONVIF Profile T, S and G
- USB 2.0 and USB 3.0
- Two-way talk
- Desktop installation
Technical Specifications
| Specification | Details |
|---|---|
| Model | XVR5216AN-4KL-I3 |
| Recorder Type | 16-Channel Penta-brid XVR |
| Analogue Inputs | 16 × BNC |
| Analogue Formats | HDCVI, AHD, TVI, CVBS |
| Maximum IP Channels | Up to 32 |
| Maximum IP Resolution | 8MP |
| Incoming Bandwidth | 128Mbps |
| Recording Bandwidth | 128Mbps |
| Outgoing Bandwidth | 128Mbps |
| Maximum Analogue Resolution | 4K |
| 5MP Encoding | Up to 25fps |
| SMD Plus | 16 channels |
| SMD by Camera | 32 channels |
| Perimeter Protection | Up to 8 channels |
| Face Recognition | 2 channels |
| Face Databases | Up to 10 |
| Face Image Capacity | Up to 20,000 images |
| QuickPick 2.0 | 2 channels |
| EPTZ | 1 channel |
| Privacy Protection | 1 channel |
| AI Video Quality Analytics | 16 channels |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| HDD Interface | 2 × SATA |
| Maximum HDD Capacity | Up to 16TB per HDD |
| Maximum Total HDD Capacity | Up to 32TB |
| Disk Group | Yes |
| Playback | Up to 16 channels |
| Video Output | 1 × HDMI, 1 × VGA |
| HDMI Resolution | Up to 3840 × 2160 |
| Network Port | 1 × 10/100/1000Mbps RJ45 |
| USB | 1 × USB 2.0, 1 × USB 3.0 |
| Audio Input | 1 × RCA + 16 × BNC coaxial audio |
| Audio Output | 1 × RCA |
| Two-Way Talk | Yes |
| Mobile Access | Android / iOS |
| ONVIF | Profile T, S and G |
| Power Supply | 12V DC, 5A |
| Power Consumption | <15W without HDD |
| Dimensions | 375 × 289.6 × 53mm |
| Net Weight | 1.80kg |
| Installation | Desktop |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10%–90% RH, non-condensing |

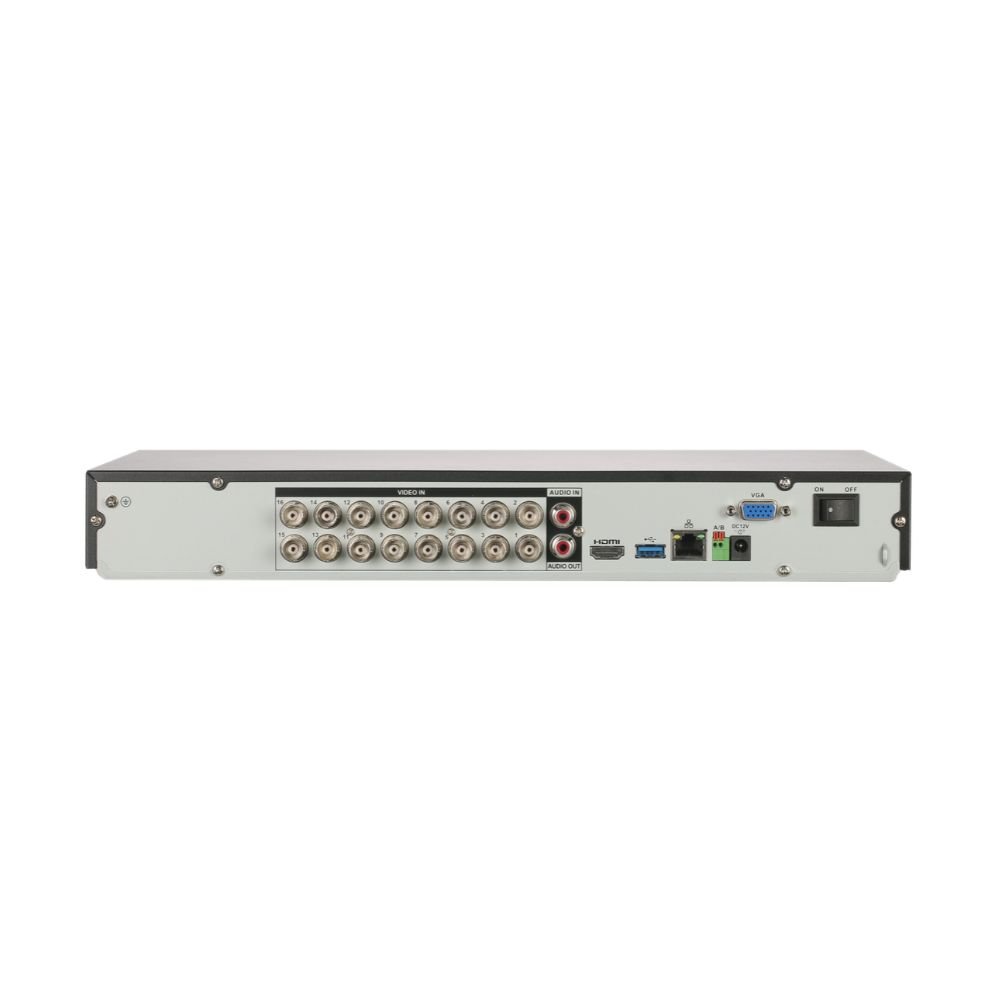

Connectivity and interfaces
The recorder provides HDMI and VGA outputs, with HDMI supporting resolutions up to 3840 × 2160.
For networking, the XVR includes a 10/100/1000Mbps RJ45 Ethernet port, supporting remote access and network camera connectivity.
Two USB ports are provided, including one USB 2.0 port and one USB 3.0 port.
The recorder also supports two-way talk, with the first channel sharing its audio input connection.

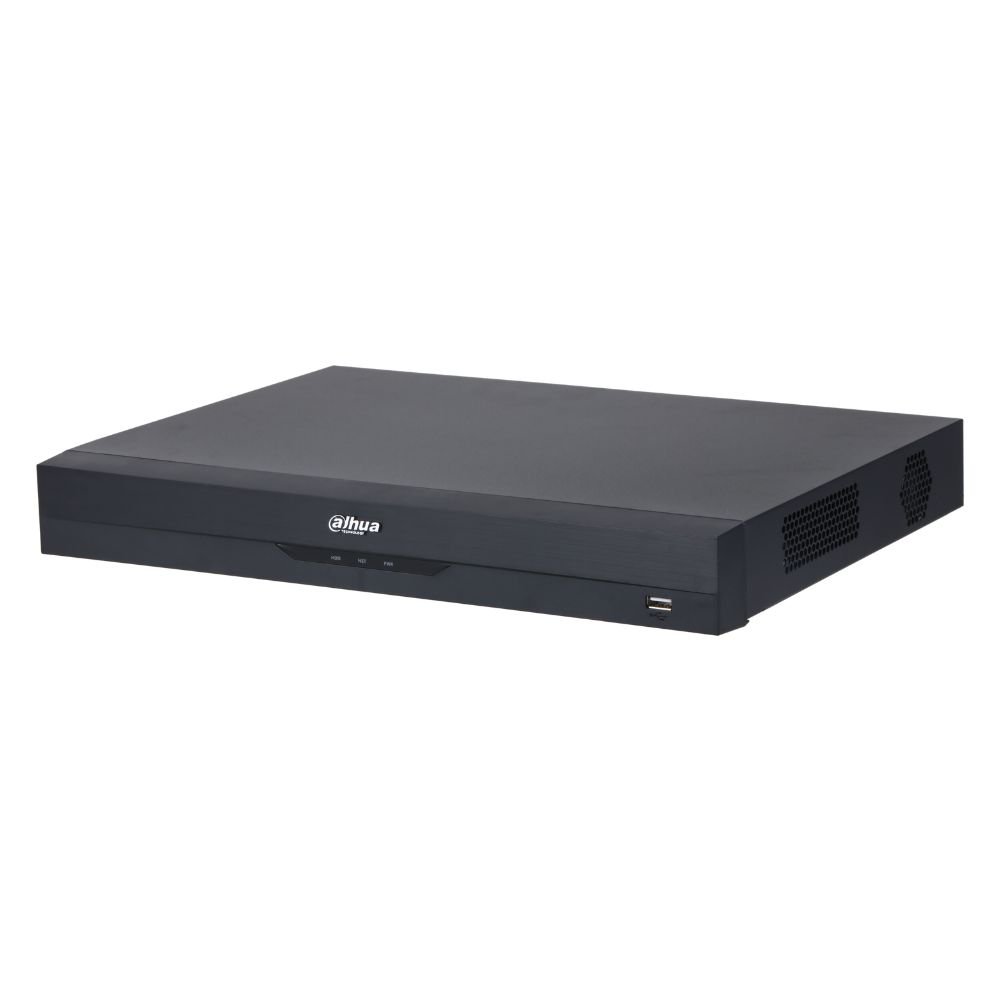

Compact 1U design
Despite supporting 16 analogue channels, up to 32 IP channels and two HDD bays, the XVR has a relatively compact 1U form factor, measuring 375 × 289.6 × 53mm.
It is designed for desktop installation and is suitable for larger CCTV systems in homes, offices, retail premises, warehouses and other commercial environments.
Important compatibility note
Some AI functions have specific operating limitations.
When IP extension mode is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
Similarly, enabling Encode Enhancement disables several AI functions. The required AI features should therefore be considered when configuring the recorder.
Hard drives are not included unless specifically selected as an option.
