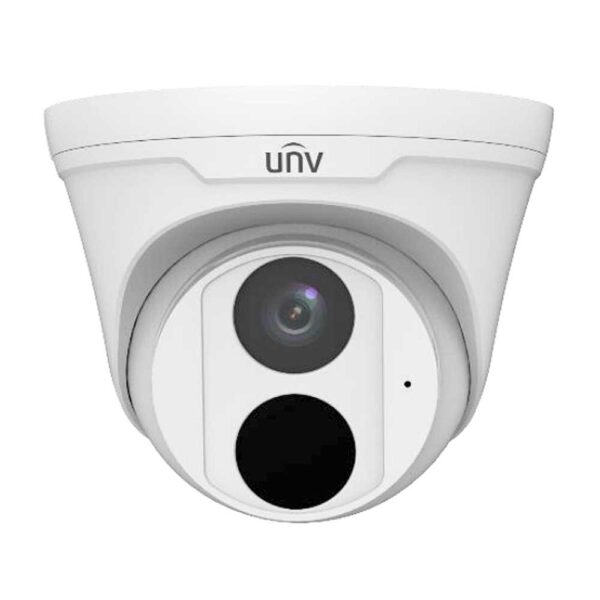

Uniview EASYSTAR 8MP HD Turret Network Camera with Built in Mic – IR Fixed Lens 2.8mm – White – CCTV IP Camera Eyeball
Code: IPC3618LE-ADF28K-G
Key Features:
- High quality image with 8MP, 1/2.7″CMOS sensor
- 8MP (3840*2160)@20fps; 5MP (3072*1728)@30/25fps; 4MP (2560*1440)@30/25fps; 2MP (1920*1080) @30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Easystar technology ensures high image quality in low illumination environment
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Built-in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 256 G Micro SD card
- IP67 protection
- Support PoE power supply
- 3-Axis
Specification:
| IPC3618LE-ADF28K-G | IPC3618LE-ADF40K-G | |||||||
| Camera | ||||||||
| Sensor | 1/2.7″, 8.0 megapixel, progressive scan, CMOS | |||||||
| Minimum Illumination | Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON) 0Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
| S/N | >56dB | |||||||
| WDR | 120dB | |||||||
| Lens | ||||||||
| Lens Type | 2.8mm @F1.6 | 4.0mm @F1.6 | ||||||
| Iris | Fixed | |||||||
| Field of View (H) | 112.9° | 91.2° | ||||||
| Field of View (V) | 59.1° | 47.9° | ||||||
| Field of View (D) | 121.2° | 95.9° | ||||||
| DORI | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
| 2.8mm | 84 | 33.6 | 16.8 | 8.4 | ||||
| 4.0mm | 120 | 48 | 24 | 12 | ||||
| Illuminator | ||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||
| Wavelength | 850nm | |||||||
| IR On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||
| U-code | Supported | |||||||
| OSD | Up to 4 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Video stream | Dual streams | |||||||
| Image | ||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| Smart IR | Supported | |||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| Defog | Digital Defog | |||||||
| Events | ||||||||
| Basic Detection | Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection | |||||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | N/A | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8KHZ | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||
| Network Storage | ANR,NAS(NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||
| Client | EZStation EZView EZLive | |||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||
| Interface | ||||||||
| Audio I/O | N/A | |||||||
| Alarm I/O | N/A | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) | |||||||
| General | ||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
| Power consumption: Max 4.5W | ||||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||||
| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) | |||||||
| Weight | 0.36kg (0.79lb) | |||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
| Surge Protection | 4KV | |||||||
| Reset Button | N/A | |||||||
Uniview EASYSTAR 8MP HD Turret Network Camera with Built in Mic – IR Fixed Lens 2.8mm – White – Diagram / Dimensions:
