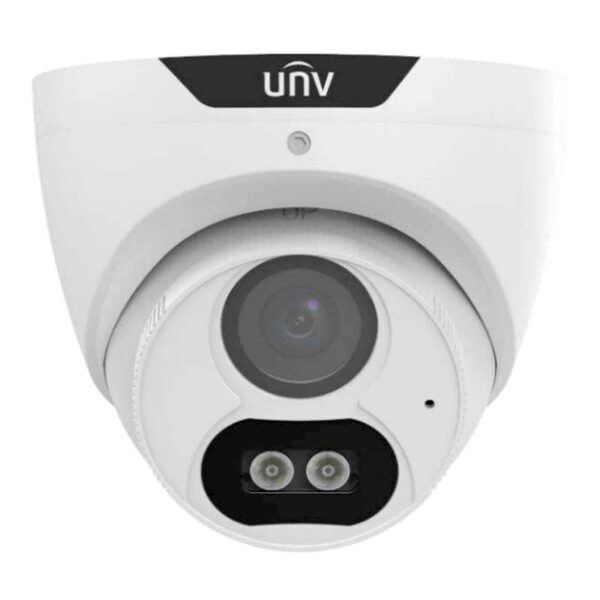

Uniview 5MP ColourHunter HD 2.8mm Fixed Lens Analogue Turret CCTV Camera Mic AoC Full Colour Half Metal
Code: UAC-T125-AF28M-W
The Uniview 5MP HD Fixed Turret Analogue CCTV Camera is a 5MP ColourHunter HD 2.8mm Fixed Lens Turret Analogue Camera with a high-performance 1/2.7-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types the camera can achieve low-cost, long-distance, anti-interference, and low delay mega-pixel HD video transmission. It supports audio input, synchronous transmission of audio and video, and provides 24/7 Full Colour images.
Key Features:
- 5MP high quality HD image 2.8mm Fixed Lens
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 full-color imaging
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
- Built-in microphone for high quality audio transmission via coaxial cables
- Supports digital defog
- Metal front face and housing
- 3-Axis
Specification:
| Sensor | |
| Pixel | 5MP |
|---|---|
| Size | 1/2.7″ |
| Minimum illumination | 0.005lux (F1.4, AGC ON) 0.00 lux (white light on) |
| Lens | |
| Lens | 2.8mm |
| Lens mount | M12 |
| Angle of view | H: 111.5° V: 58.9° D: 134.8° |
| Illuminator | |
| Illuminator | Two white-light illuminators |
| Illumination distance | 40m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
| Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Audio | |
| Microphone | Built-in Mic |
| Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps
CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V (±25%), with reverse polarity protection and surge protection. Max 3.28W |
| Mount | Surface mount (default), optional backbox, wall mount bracket |
| Dimensions | Φ111mm*96mm (diameter*height) |
| Material | Metal and Plastic |
| Weight | 356g (0.79lb) |
| Certification | CB, CE, FCC, UL |
Uniview 5MP ColourHunter HD 2.8mm Fixed Lens Analogue Turret CCTV Camera Mic AoC Full Colour Half Metal Housing – Diagram / Dimensions:
