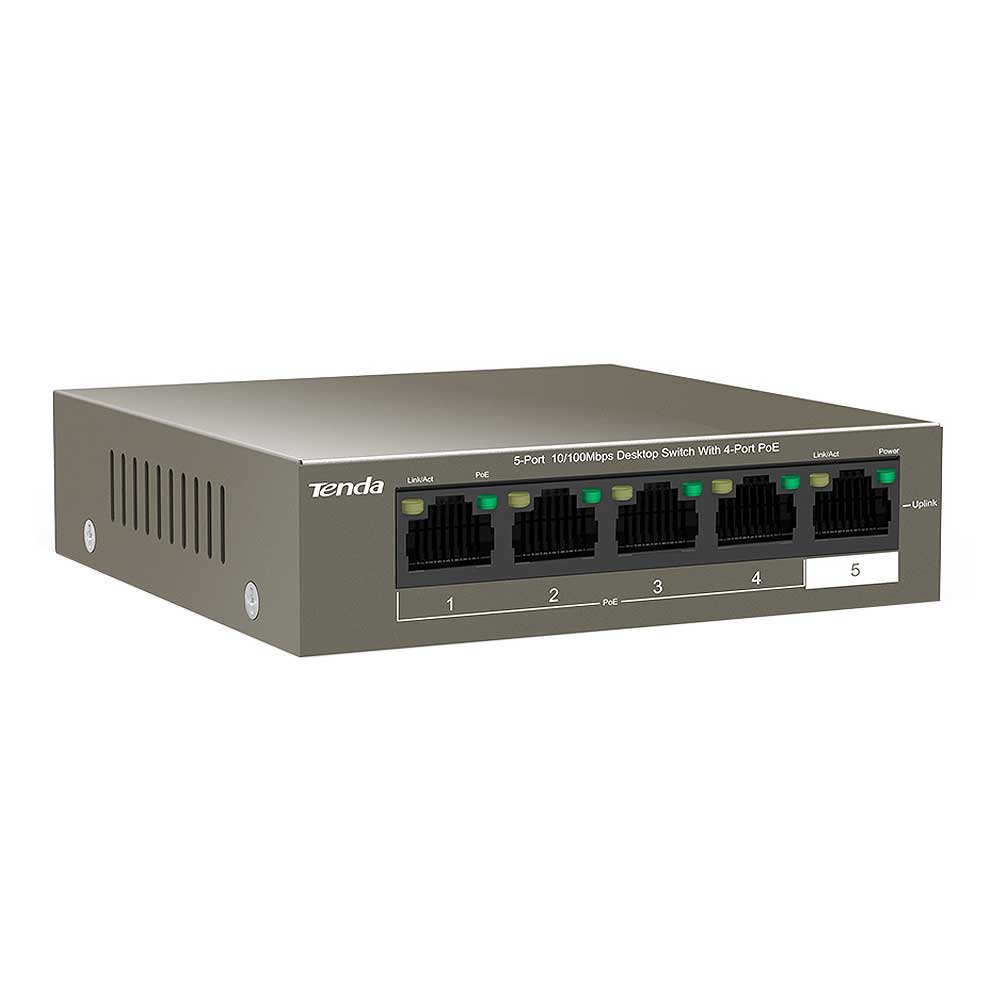

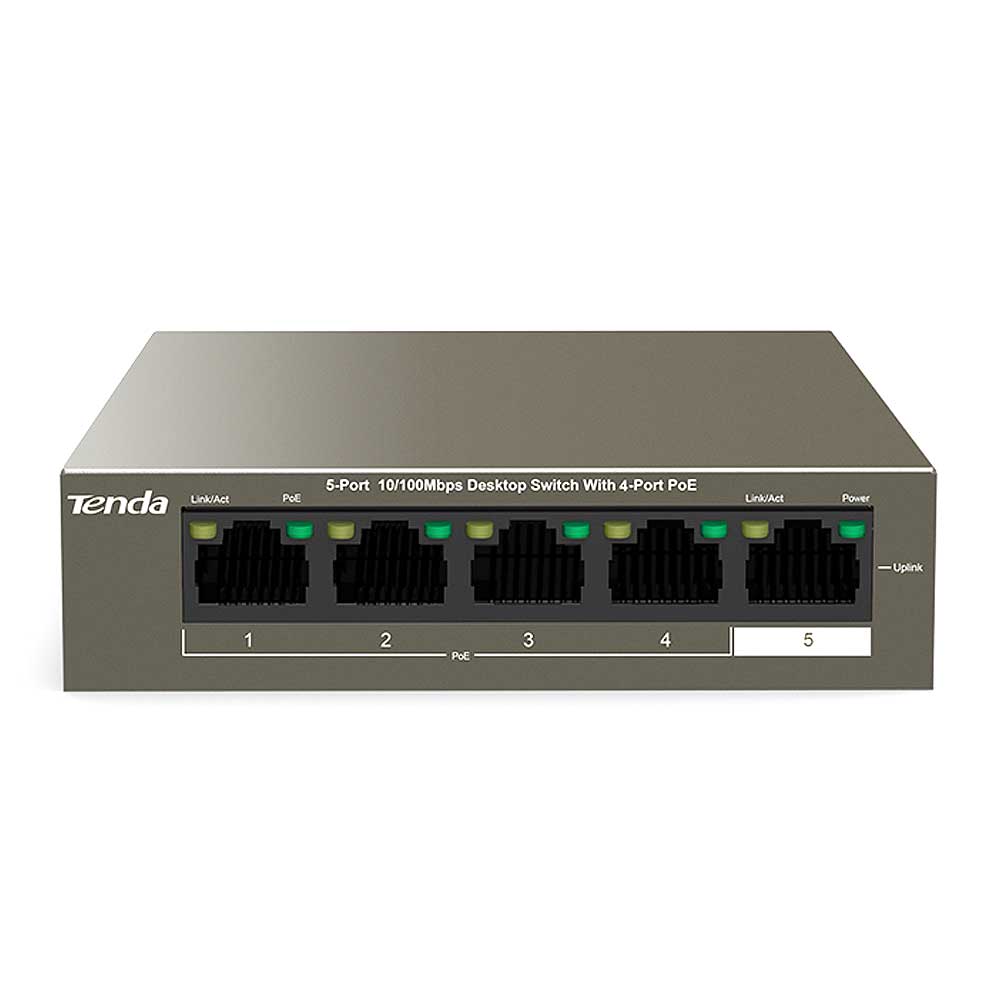

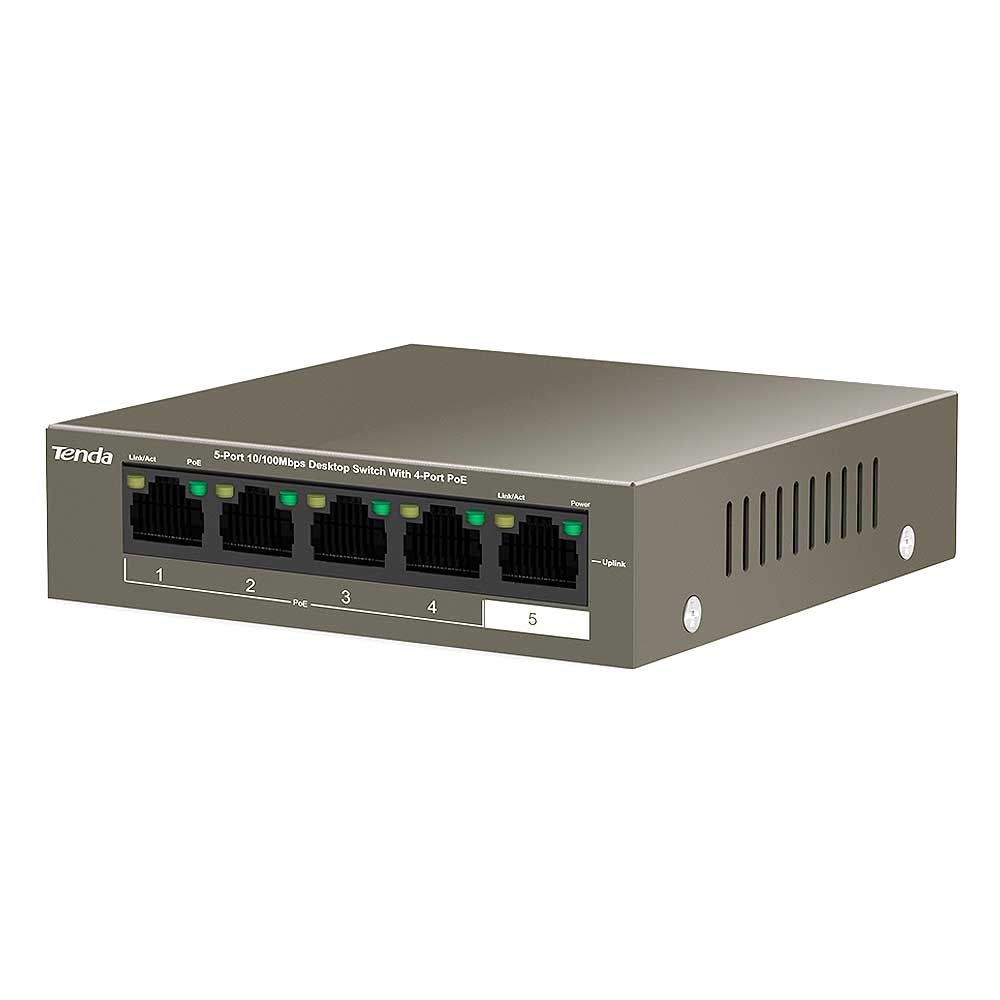

Tenda TEF1105P-4-63W 5-Port 10/100Mbps PoE Switch – 4-Port PoE+ Power Supply, 58W Total Output, 250m Extend Mode, 6KV Lightning Protection, Desktop/Wall Mount
Code: TEF1105P-4-63W
The Tenda TEF1105P-4-63W is a reliable 5-Port 10/100Mbps Desktop PoE Switch designed for stable power and data transmission across IP cameras, access points, or VoIP phones.
With 4 PoE+ ports supporting IEEE 802.3af/at standards, it delivers up to 30W per port and a total power budget of 58W – enough to run multiple high-power devices simultaneously.
Thanks to its exclusive Extend Mode, the TEF1105P-4-63W pushes beyond the standard 100-metre Ethernet limit, providing up to 250 metres of stable data and power transmission – ideal for large homes, offices, and outdoor CCTV installations.
The built-in 6KV lightning protection safeguards your network equipment even in stormy weather, while V0 fire-retardant materials and industrial-grade design ensure long-term reliability.
Compact and easy to install, this unmanaged switch supports both desktop and wall mounting, offering flexibility for any environment. Simply plug it in and enjoy seamless connectivity – no setup needed.
Whether you’re upgrading your home network or setting up a small surveillance system, the Tenda TEF1105P-4-63W PoE Switch offers unbeatable performance, protection, and convenience at an affordable price.
Features:
4× PoE+ Ports + 1 Uplink Port – Power up to 4 PoE devices like IP cameras or access points with one uplink to your router or NVR.
Extended 250m Transmission Range – Breaks the 100m Ethernet limit; supports up to 250 metres of data and power transmission in Extend mode.
Powerful 58W PoE Budget – Provides up to 30W per port and 58W total output, ideal for multiple high-power devices.
Advanced 6KV Lightning Protection – Dual-level surge protection on both ports and power supply for reliable outdoor use.

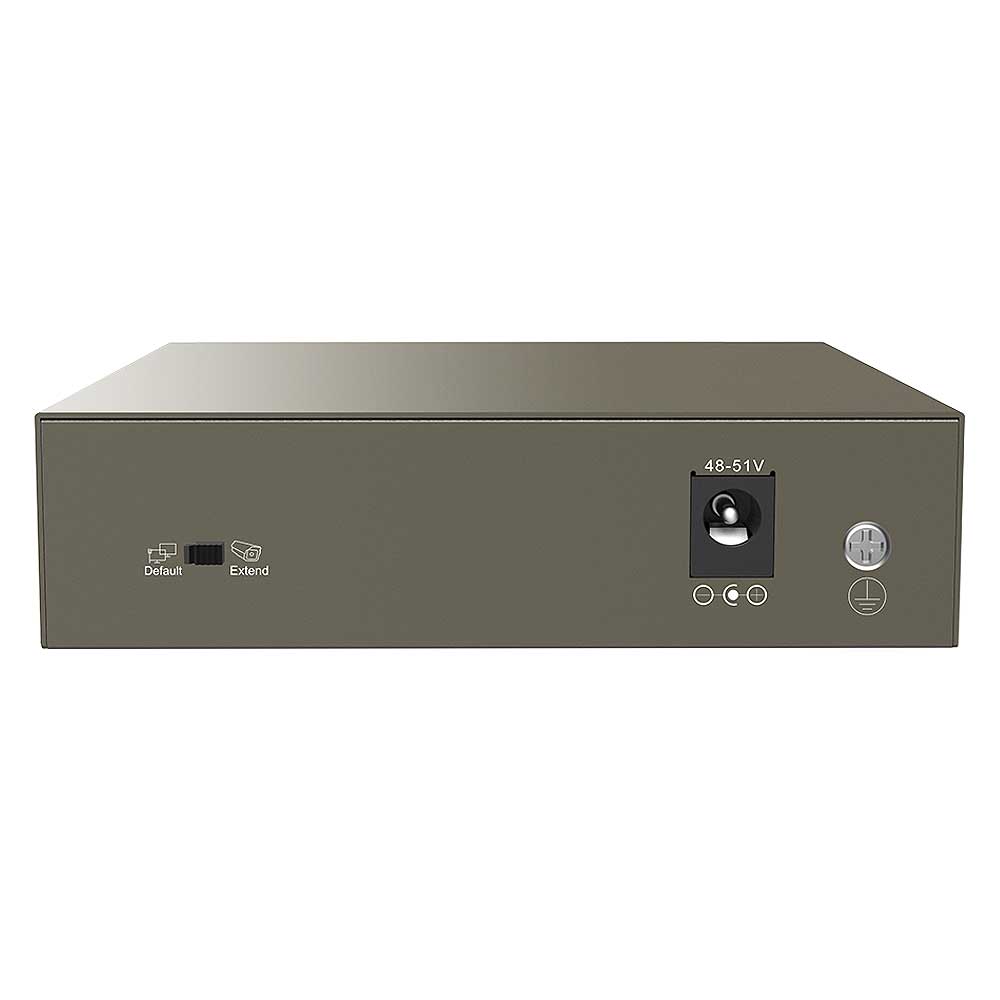

Standard & Extend Modes – Switch between normal network mode and long-distance mode with a simple toggle.
Compact & Durable Design – Metal housing, desktop and wall-mountable, suitable for home or professional surveillance setups.
Plug-and-Play Simplicity – Unmanaged switch; no configuration required. Works straight out of the box.
CE, FCC & RoHS Certified – Designed for safe, stable, and energy-efficient performance.
Technical Specifications
Ports: 4 × 10/100Mbps PoE+ (Data/Power) + 1 × 10/100Mbps Uplink (Data)
Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
PoE Output: 30W per port (max), 58W total
Transmission Distance: Up to 250m (Extend Mode at 10Mbps)
Switch Capacity: 1Gbps
Forwarding Rate: 0.74Mpps
MAC Address Table: 1K
Buffer: 448K
Protection: 6KV Lightning Protection (Ports & Power), ESD ±10kV (Air), ±8kV (Contact)
Mounting: Desktop or Wall-Mount
Input Voltage: 100–240V AC 50/60Hz
Operating Temperature: 0°C to 45°C
Dimensions: 100 × 100 × 26 mm
Weight: Approx. 0.4 kg
Certifications: CE, FCC, RoHS
Package Contents
1 × Tenda TEF1105P-4-63W PoE Switch
1 × Power Adapter (51V / 1.25A)
1 × Quick Installation Guide
