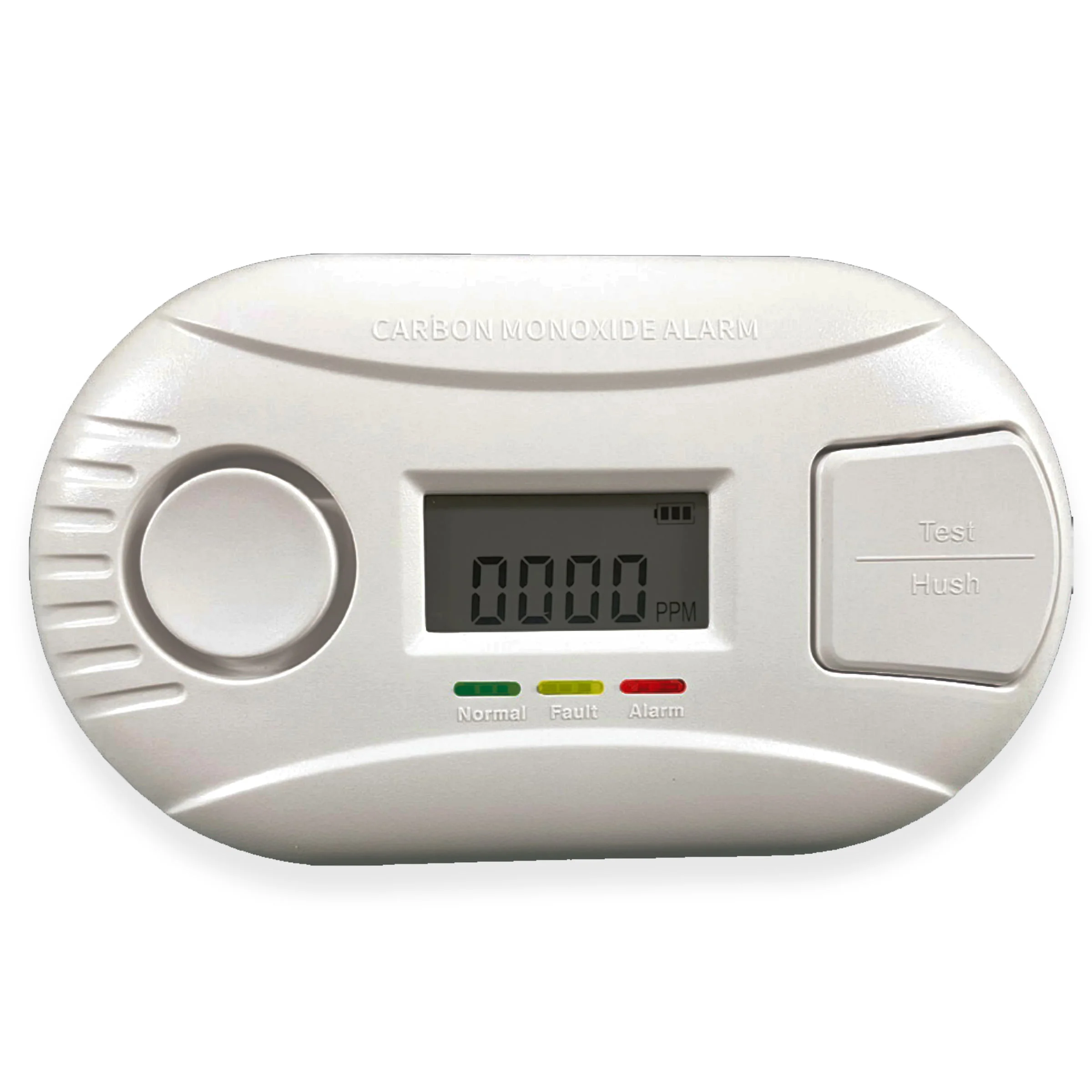

Qvis Carbon Monoxide Detector – QFS-CO (10 Year Battery)
Code: QFS-CO
The Qvis Carbon Monoxide Detector (10 Year Battery) Quickly notifies of dangerous CO levels in the air. The CO Detector has LED indicators with a loud buzzer. The LED lights indicate three states: “Normal”, “Fault” and “Alarm”.
Features:
- Easy installation with Clip-on wall bracket.
- Quickly notifies dangerous CO levels in the air.
- Superior Carbon Monoxide (CO) Alarm Electrochemical Sensor.
- LCD Screen with Easy One-Button “Test” function.
- Sealed Tamperproof Lithium Integrated Battery.
- Compliant with EN50291-1:2018
- Alarm Sounder (85dB)
Pack includes:
- The Qvis Carbon Monoxide Detector
- 2x Screw, 2x Positioning Screw, 1x Easy-Install Bracket
Carbon Monoxide Detector Specification:
| Alarm Volume | >85dB |
|---|---|
| Alarm Mode | LED & Buzzer |
| Wake-Up Cycle | 6 Seconds |
| Battery Type | 4pcs 1.5V Lithium Iron Battery |
| Battery Model | FR14505 |
| Execution Standard | EN50291-1.2018 |
| CO Sensor Type | CO Electrochemical Sensor |
| Interface / Display | Test/Hush Button on Front / LCD Display |
| Standby Current | <30uA |
| Power Supply | DC6V |
| Low Voltage Threshold | 5.6V |
| Working Conditions | -10°C to +50°C, 30% to 90%RH (Humidity) |
| Installation | Wall Hanging |
| Product & Battery Life | 10 Years |
| Included in Box | 2x Screw, 2x Positioning Screw, 1x Easy-Install Bracket |
| Dimensions | 129mm x 74mm x 38mm |
| Weight | 140g |
CO Detector Functionality:
| Initialisation | Constant Green LED Flash |  |
|---|---|---|
| Normal | Green LED Flash Once (50 seconds) |  |
| Alarm | Red LED Flashes Quickly, Buzzer Sound |  |
| Mute | Red LED Flashes (10 seconds), No Sound; If After 10 Minutes the CO Concentration Doesn’t Return to Normal Threshold, the Alarm Will Reactivate Automatically. Otherwise, the Device Returns to Normal Standby State |  |
| Fault | Yellow LED Flashes Twice (60 seconds), Accompanied by 2x Buzzer Sounds |  |
| Low Voltage | Yellow LED Flashes Three Times (60 seconds), Accompanied by 3x Buzzer Sounds |  |
| Test | Press the Test Button to Show Status On Demand (Make Sure to Press at the Top) |  |
Technical Drawing:

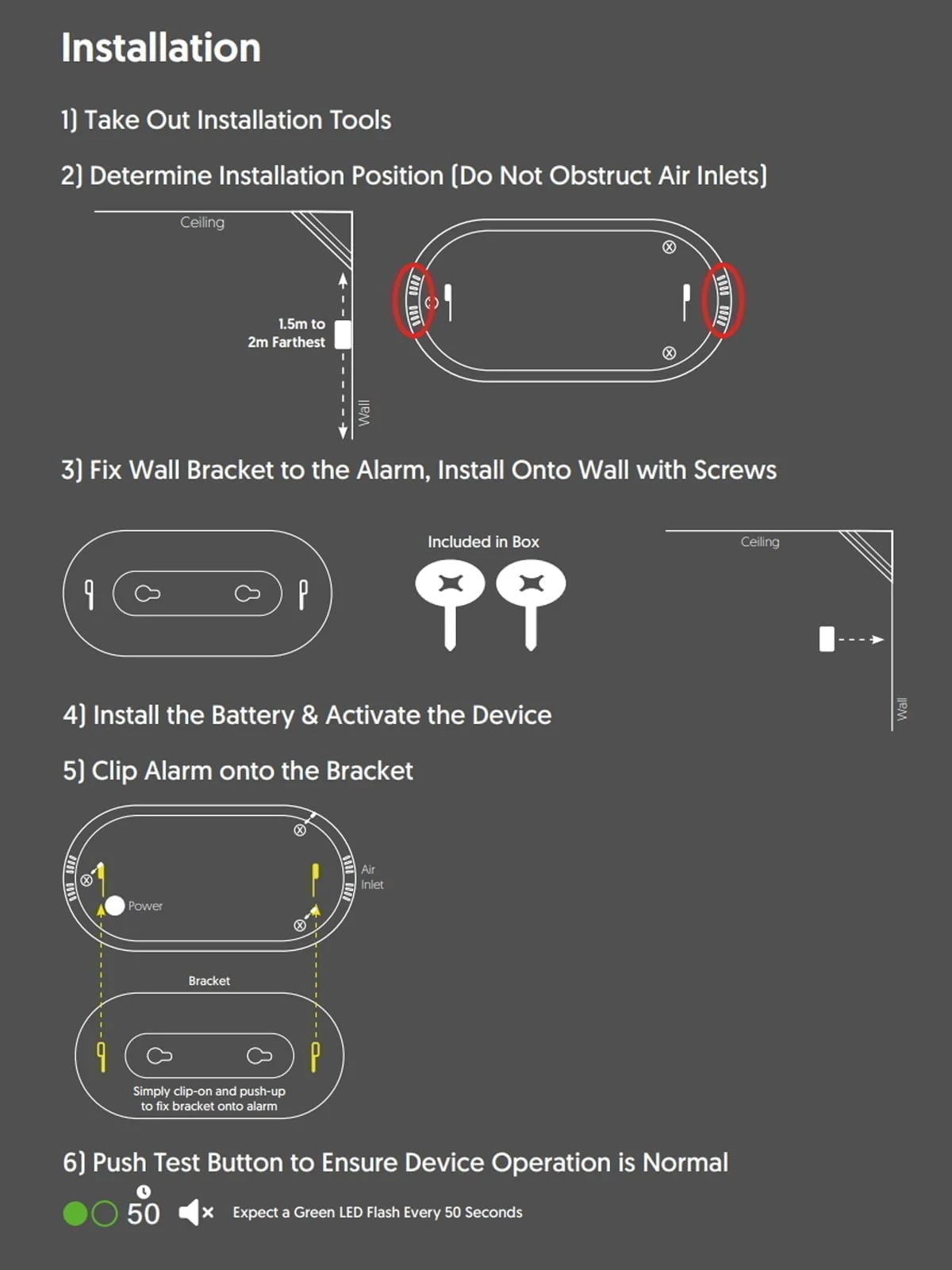

Installation of Carbon Monoxide Detector:
:
Warning:
The alarm’s mute function (‘Hush’ button) can only be activated if concentration is below 300PPM.
However, it is crucial that you do not ignore any alarm from the detector, as Carbon Monoxide is highly toxic and can induce serious side effects, potentially within minutes
The alarm’s mute function (‘Hush’ button) can only be activated if concentration is below 300PPM.
However, it is crucial that you do not ignore any alarm from the detector, as Carbon Monoxide is highly toxic and can induce serious side effects, potentially within minutes
