Description
OYN-X Eagle CCTV Kits 8 Channel DVR – 5MP IR Turret Camera – Penta-Brid (AoC)
Code: EAGLE-5MP-IR-8BB-KIT
The Eagle 5MP range of DVR coupled with full HD 5MP smart Light Titus cameras
The Eagle Oyn-x DVR offers all of the features of a high end system such as audio over coax, remote viewing, notifications via a smartphone app.
HD recording and playback, smart Motion detection, analytics and alerts to name but a few features.
Select the size HDD you need from the right.
The cameras (5MP IR Turret CCTV Camera) in either white or grey.
This Oyn-x Eagle CCTV Kits (Home CCTV Systems) will run a max total of 8 cameras.
Select the amount and type of cameras you require.
You will receive a pre made 20m cable for each camera selected as well as the correct power supply for your selection.
Oyn-x Eagle 8 Channel 5MP DVR CCTV Recorder:
2 Years UK manufacturers warranty on the DVR.
Free remote viewing via smartphone and online App.
The Eagle Lite Series CCTV Kits System offers a great solution for users facing budget constraints who require both high cost performance and quality.
The Eagle CCTV 8 Channel DVR Recorder offers an Intelligent Video System (IVS); Face Detection which allows you to search or identify individuals, and Smart Search which helps you detect motion during a short period when a clip is played back as well as AoC audio over coax features. Overall great CCTV Kit experience when bundled.
Key Features:
- Supports 5MP HDCVI, AHD, TVI, IP and CVBS Camera Video inputs.
- 5MP Recording supported CCTV Kit.
- 8 Channel Playback.
- Backup via USB.
- H.265+/H.265 dual-stream video compression
- Max 8 Channels camera inputs, each channel up to 5MP; Max 48/96Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
Eagle 5MP 8 Channel DVR Specifications:
| Channel | 8 |
|---|---|
| HDD Size | Not included – Select required capacity up to 10TB. |
| Record Mode | Manual, Schedule, MD, Alarm, Stop |
| Audio Input / Output | RCA x 1 |
| Network Interface | 1 RJ-45 Port (100M) |
| USB | 2x 2.0 |
| Power | DC12V/ 1.5A |
| Display Interface | 1 HDMI ,1 VGA |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Net Weight (without HDD) | 1 – 1.1 Kg |
| HDCVI Camera Input | 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera Input | 5MP, 4MP, 1080P@25/30, 720P@25/30fps |
| Playback function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Operating condition | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH |
| Dimensions | Compact 1U, 260×236×48mm(10.2″×9.3″×1.9″) |

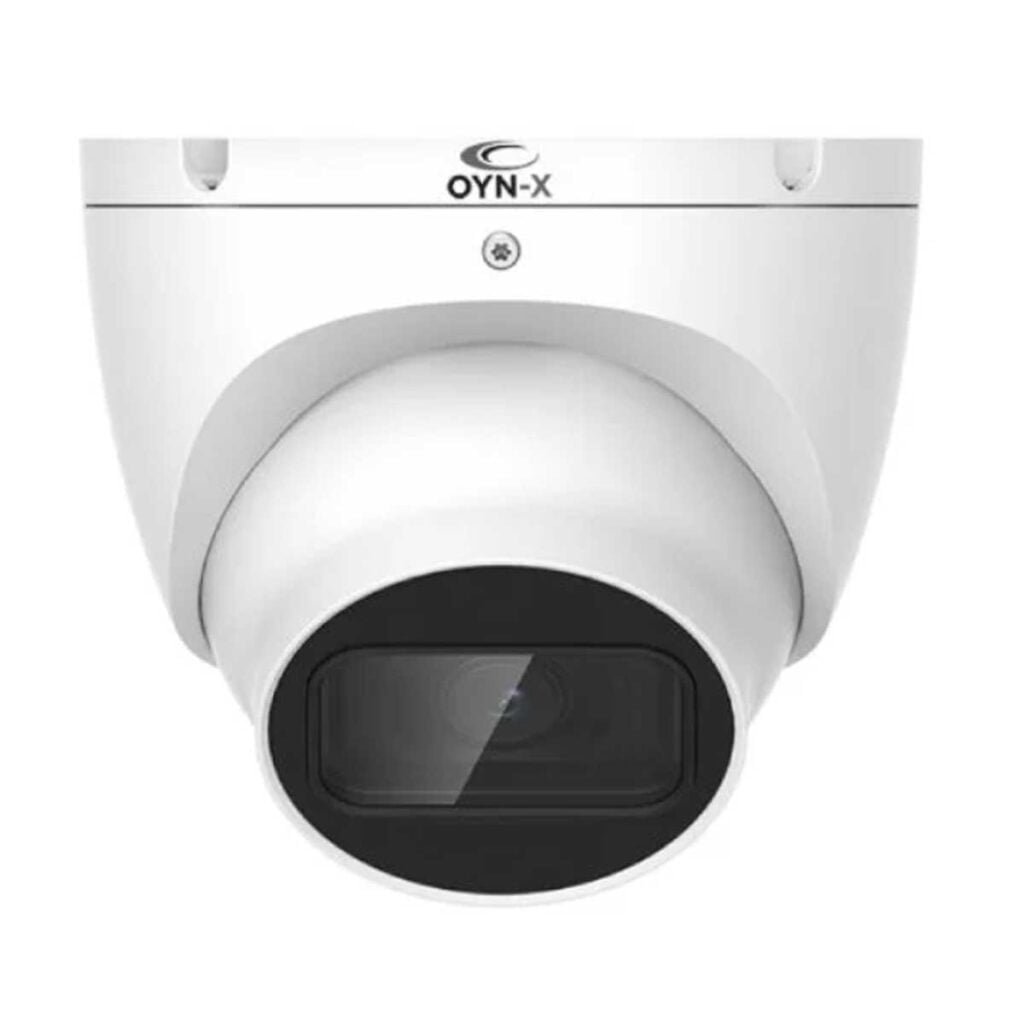

Oyn-x TITUS 5MP HDCVI smart Turret Camera :
-
- Select the number of 5MP smart dual light Turret Cameras you require either in grey or white.
You will receive a pre made 20m cable for each camera selected as well as the correct power supply for your selection.
- Features:
- 5MP High Quality Resolution
- 2.8mm Fixed Lens
- Up to 20m IR Range
- IP67 Rated
- 16:9 Ratio
Camera Specification:
| Colour | Grey/White |
|---|---|
| Lens Type | Fixed |
| Lens | 2.8mm |
| Effective Pixels | 2880 x 1620 |
| Resolution | 5MP |
| Image Sensor | 1/2.7″ CMOS |
| Ingress Protection | IP67 |
| Camera Power Supply | DC12V |
| Dimensions | 109.9 x 88.1mm |
