OYN-X Eagle CCTV Kits 8 Channel DVR – 5MP Camera Penta-Brid AoC

£79.99 Inc VAT

Availability: 47 in stock

Brand: Oyn-x Eagle


Eagle 5MP full colour Dome White
Eagle 5MP full colour Dome Grey
Budget HDD
Surveillance HDD
Product total
Options total
Grand total
SKU: EAGLE-5MP-8BB-kit Categories: , , Tags: , , , ,
Share this product

OYN-X Eagle CCTV Kits 8 Channel DVR – 5MP Camera Penta-Brid AoC

Code: EAGLE-5MP-8BB-kit

Starting price is for the CCTV DVR.
Just Select the size HDD you need from the right.
The cameras in either white, grey or any combination.
The Oyn-x Eagle CCTV Kits (Home CCTV Systems) will run a max total of 8 cameras.

Select the amount and type of cameras you require.

You will receive a pre made 20m cable for each camera selected as well as the correct power supply for your selection.

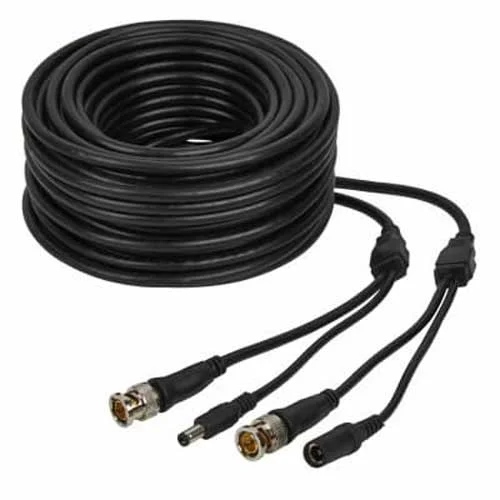

10M Bnc Power Cable HEAVY DUTY Pro range - cctv cameras, cctv kits  12v 5A Power adapter with 4 way built in CCTV Kits, cctv cameras
The Eagle 5MP range of DVR coupled with full HD 5MP

Full colour at night white LED cameras offer incredible and unbeatable value and quality.

The Eagle Oyn-x DVR offers all of the features of a high end system such as audio over coax, remote viewing, notifications via a smartphone app.
HD recording and playback, smart Motion detection, analytics and alerts to name but a few features.


Oyn-x Eagle 8 CHN 5MP HI-DEF DVR recorders

2 Years UK manufacturers warranty on the DVR

Free remote viewing via smartphone and online App


The Eagle Lite Series CCTV Kits System offers a great solution for users facing budget constraints who require both high cost performance and quality.

This CCTV DVR recorder offers an Intelligent Video System (IVS); Face Detection which allows you to search or identify individuals, and Smart Search which helps you detect motion during a short period when a clip is played back as well as AoC audio over coax features. Overall great CCTV Kit experience when bundled.


Key Features:

Supports 5MP HDCVI, AHD, TVI and CVBS Cameras.

5MP Recording supported CCTV Kit.

8 Channel Playback.

Backup via USB.



Channel – 8

HDD Size – None – select required capacity up to 10TB.

Colour – Black

Video Input – 8CH

Record Mode – Manual, Schedule, MD, Alarm, Stop

Audio Input – RCA x 1

Audio Output – RCA x 1

Network Interface – 1 RJ-45 Port (100M)

USB – 2 x 2.0

Power – DC12V/ 1.5A

Dimensions – 260 x 236 x 48mm.

Select the number of OYN-X full night time colour  5MP HD cameras you require either in grey or white.

You will receive 20m cable for each camera selected.

Full Colour Camera features

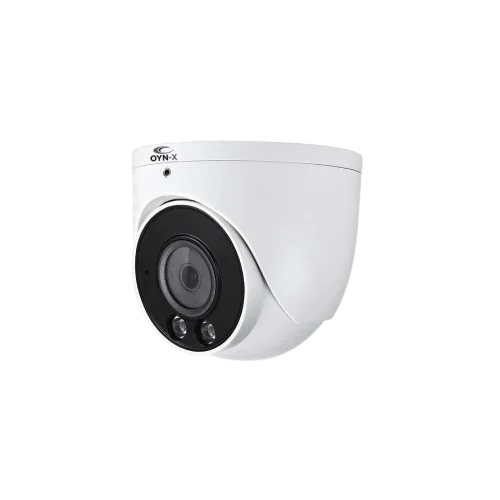

  • OYN-X EAGLE 5MP starlight 24/7 full colour Turret CCTV Camera with audio MIC AoC OYNX - cctv cameras - cctv kits - home cctv systems OYN-X EAGLE 5MP starlight 24/7 full colour Turret CCTV Camera with audio MIC AoC OYNX grey - cctv cameras - cctv kits - home cctv systems

▪ 5.0 megapixel 1/2.8″ CMOS image sensor
▪ 2.8.mm wide angle Fixed Lens
▪ LED Distance:   50m Night Vision
▪ Power supply: 12VDC
▪ Resolution: 2592 (H) × 1944 (V)
▪ IP rating:  External (IP67)
▪ AOC: built in mic for audio over coax.

Weight 0.00000000 kg


There are no reviews yet.

Be the first to review “OYN-X Eagle CCTV Kits 8 Channel DVR – 5MP Camera Penta-Brid AoC”

CCTV COAX Kits info

CCTV COAX Kits to suite all needs starting with the 2mp 1080p range then the 5mp and the 4k 8mp CCTV systems.
Home CCTV stock many HD analogue CCTV Kits from leading manufacturers such as Oyn-x CCTV, Dahua, Sentry CCTV and Hilook by Hikvision. These AHD CCTV systems connect the DVR(Digital Video Recorder) to the CCTV cameras over a coax type cable with a bayonette twist fit video connection and a standard 12v power jack which runs along the same cable length to the CCTV cameras.
The CCTV resolution range runs from standard 2mp 1080P HD CCTV to the mid range 5mp CCTV systems up to the higher end 8mp 4k resolution CCTV. When choosing the CCTV DVR its advisable to make sure you have a few CCTV camera channels more than you will be using to allow additional CCTV cameras to be added to your system if ever required. The CCTV DVR recorders start at the minimum camera connections being 4ch then 8ch, 16ch and 32ch being the most CCTV Camera connections. Bare in mind the More CCTV cameras you run and the higher the camera resolution the more HDD (Hard Disk Drive) storage space will be required for the CCTV recordings.
