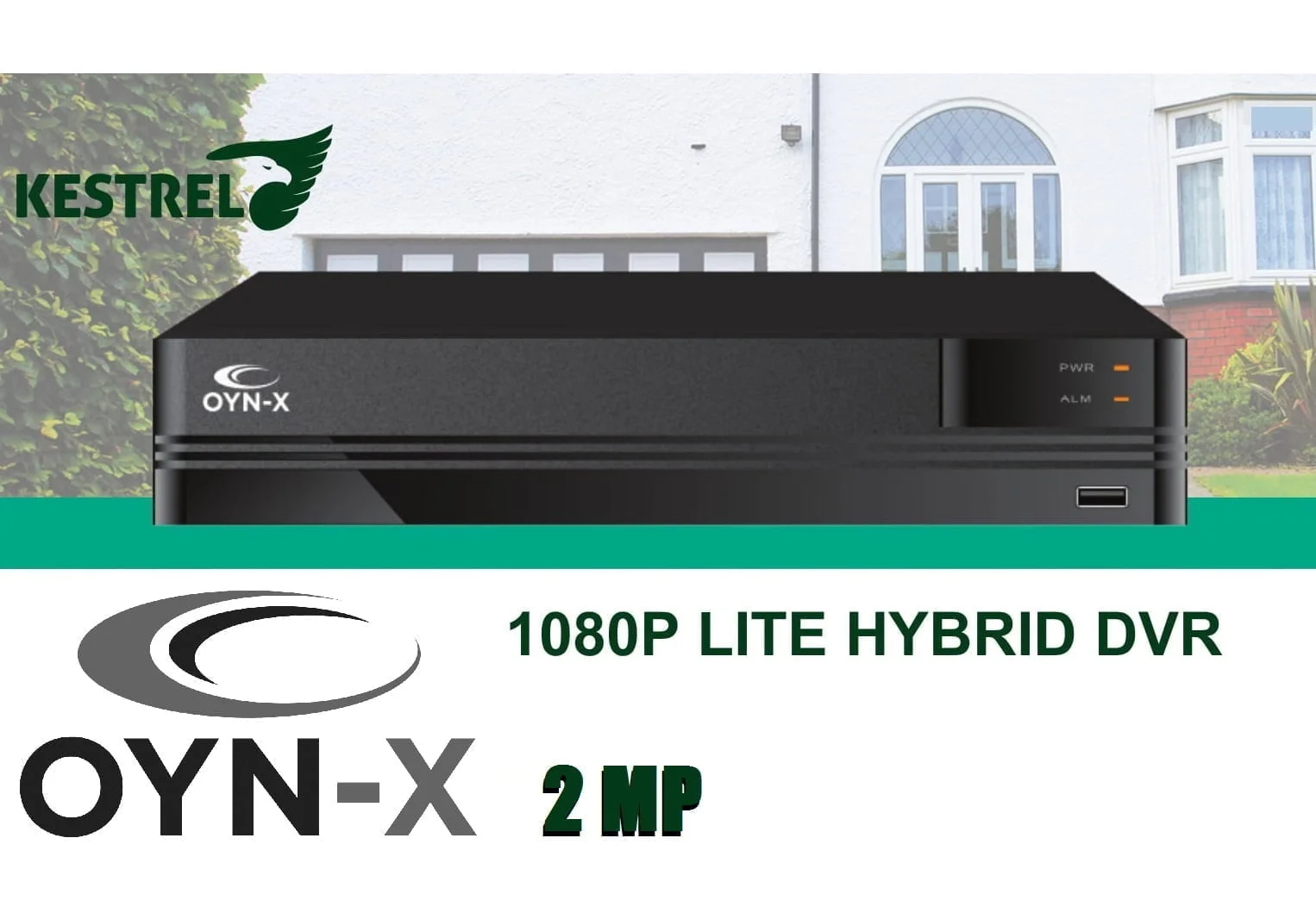

OYN-X CCTV KESTREL H265 1080p 16 Channel DVR recorder

£84.99 Inc VAT

Out of stock

SKU: KESTREL-1080P-16BB Categories: , , , Tags: , , ,
Share this product

OYN-X CCTV KESTREL H265 1080p 16 Channel DVR recorder

Code: KESTREL-1080P-16BB

16 CHN 1080P lite HI-DEF recorders

3 Years manufacturers warranty on the DVR

Free remote viewing smartphone and online App



Support Google Drive & Dropbox Cloud storage

• Support 16ch 2M real-time encoding

• Support VGA maximum 1080P output, HDMI 1080p output

• Mini 1U Case, 1 SATA (Up to 6TB)

• 1*10/100Mbps auto-sensing Ethernet port, RJ45 port

• Automatic networking support, a key to add equipment

• Support the Onvif protocol

• Multi browser access

• Support for more than twenty languages



  • AHD 2mp
  • TVI 2mp
  • CVI 2mp
  • CVBS 960H
  • 5 In 1 Formats
  • This DVR supports High-Definition Transport Video (HD-TVI), Analogue High Definition (AHD), 960H,
  • Internet Protocol (IP) and High Definition Composite Video Interface (CVI) recording formats.


Widescreen Footage

1080P formatting also means that images are recorded in a widescreen format which suits modern TV’s and monitors, meaning images do not get stretched or squeezed to fit on screen.


Scheduled Recording

Set the DVR to record at specific times of the day or for set periods when you are at work, away for weekends or on holiday.


  • Supports TVI/AHD/CVI/960H/IP – Up to 2MP Resolution
  • P2P Enabled – No Port Forwarding
  • Real Time 1080P Recordings and playback
  • Motion Detection
  • USB Backup
  • PTZ Control
Video Input16 BNC, 2 IP
Video OutputHDMI/VGA/BNC
Audio Input1
Audio Output1
PowerDC 12V
Weight0.00000000 kg
Recorder Channel

16 – 32 Channel

Recorder Resolution


Recorder Type



Oyn-x Kestrel


There are no reviews yet.

Be the first to review “OYN-X CCTV KESTREL H265 1080p 16 Channel DVR recorder”

CCTV DVR Recorders info

The Home CCTV range of DVR recorders (Digital Video Recorder) covers all CCTV needs,
from standard 2mp 1080P DVR to mid range 5MP DVR up to the High resolution 8MP 4K range of DVR. The DVR recorders process and record CCTV video signal from analogue CCTV cameras via coaxial type cable often called CCTV shotgun cable as its usually a two core CCTV cable with video on one side and power on the other.
Choose the CCTV DVR depending on the amount of CCTV cameras you will want to run :-
# 4 Channel CCTV DVR for 1 to 4 CCTV cameras,
# 8 Channel CCTV DVR for 5 to 8 CCTV cameras,
# 16 Channel CCTV DVR for 9 to 16 CCTV cameras
or the largest is a 32 Channel CCTV DVR for 17 to 32 CCTV cameras.
