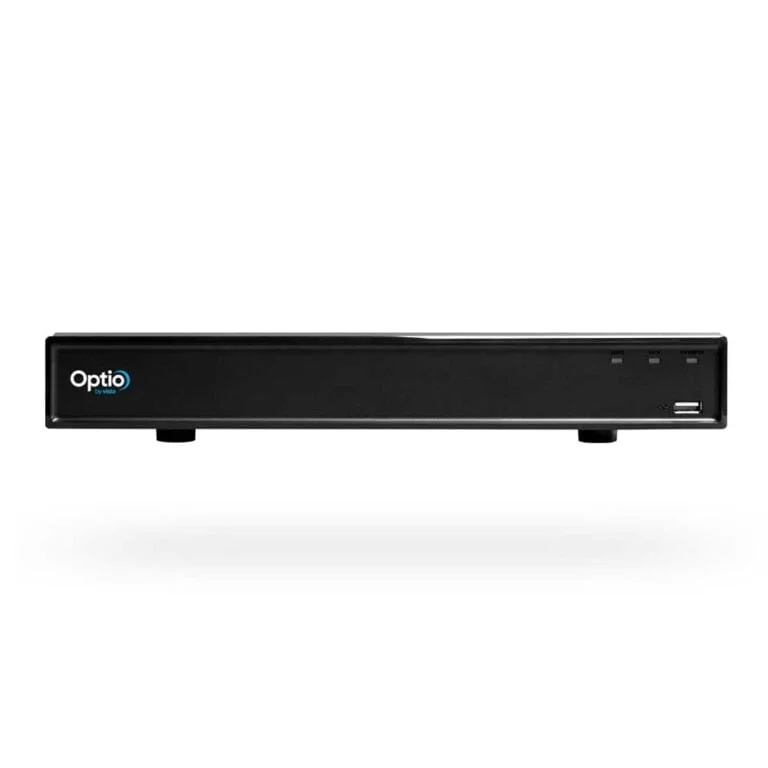

Optio 4 Channel HD DVR Digital Video Recorder 4K OPDVR4
Introducing the OPDVR4 DVR: A High-Performance 4 Channel HD DVR Digital Video Recorder
Experience superior surveillance capabilities with the OPDVR4 DVR, an exceptional 4-channel HD Digital Video Recorder proudly offered by the renowned Vista Optio range. This cutting-edge DVR is engineered to deliver top-notch performance and seamless integration with various camera formats, including CVI, AHD, TVI HD, CVBS, and select IP streams, including ONVIF compatibility.
Enjoy crystal-clear monitoring output through convenient VGA or HDMI connections, providing you with enhanced visibility and flexibility. With its advanced features and robust functionality, the OPDVR4 DVR is your go-to solution for unparalleled security and peace of mind.
- 4K HDMI display (simultaneous VGA @ 1080)
- P2P – easy APP setup (IOS & Android)
- Smart fan technology – energy / noise reduction
- H.265 smart codec – efficient compression
- Quad video format – CVI/TVI/AHD/CVBS
- Smart Search – Intelligent post motion search and playback
You can view CCTV Footage through Mobile Application remotely! Download the DMSS App from Play Store or App Store!
|Video & Audio|
|Analogue Camera Input||4 Channel|
|HDCVI Camera||4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps|
|AHD Camera||5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps|
|TVI Camera||5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps|
|IP Camera Input||4+2 Channel, each channel up to 8MP|
|Resolution||4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF|
|Record Rate||Main stream: the 1st channel 4K(1~7fps), 6MP(1~10fps), 5MP(1~12fps), 4MP/3MP(1~15fps),|
Others 4K-N(1~7fps), 4MP/3MP(1~15fps); 4M-N/1080P/720P/960H/D1/CIF (1~25/30fps)
Sub stream:960H(1~15fps); D1/CIF(1~25/30fps)
|Interface||1 HDMI, 1 VGA|
|Resolution||HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720|
VGA: 1920×1080, 1280×1024, 1280×720
|Smart Phone||iPhone, iPad, Android|
|Interoperability||ONVIF 16.12, CGI Conformant|
|Internal HDD||1 SATA Port, up to 10TB capacity|
|USB||2 USB Ports (2 USB 2.0)|
|Power Consumption (no HDD)||<10W|
|Dimensions||Compact 1U, 260×236×48mm (10.2″×9.3″×1.9″)|
|Net Weight (no HDD)||0.9kg ( 2.0lb)|
|Gross Weight||1.6kg (3.5 lb)|
|Operating Conditions||-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH|
|Storage Conditions||-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH|
|CE||CE: CE-LVD: EN 60950-1/IEC 60950-1|
|CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024|
Experience Seamless Configuration and Enhanced Security with the Vista Optio DVR.
The Vista Optio 4 Channel HD DVR brings you a seamless and secure surveillance solution like no other. Equipped with an external 12v DC power supply of the direct plug-in variety, this DVR ensures effortless installation. Simply connect the power supply, and the unit comes to life, treating you to an Optio splash screen and a user-friendly setup Wizard.
During the setup process, the DVR guides you through a series of configuration items, starting with password selection, unlock patterns, and password protection routines. Your password must be between 8 and 32 characters, using at least two different character types. To make this process even more convenient, a well-presented on-screen keyboard, controlled by a mouse, allows you to effortlessly set the password and input other necessary text.
For added security, the on-screen keyboard displays character case and includes a separate numeric keypad section. As you create your password, a colored bar beneath the entry indicates the strength of your chosen password, ensuring optimal protection.
Additionally, the DVR offers the option to set three password reminder questions from a dropdown list of 6, 7, and 8 questions, respectively. This further enhances the security and ease of access to your system.
As you proceed with the setup, you will encounter an “Auto check for updates” option. Please note that this feature involves sending device information to the supplier for verification purposes, ensuring that you always have the latest updates and enhancements.
Furthermore, the DVR provides a range of general settings for your customization. These include auto log-out timing, channel monitoring authorization when logged out, date and time settings (including NTP synchronization), network configuration, P2P remote access, encoding settings, snapshot storage, hard disk overwrite, and scheduling options. With these comprehensive settings, you have full control over your surveillance system’s functionality and performance.
Choose the Vista Optio 4 Channel HD DVR for effortless setup, enhanced security, and unparalleled customization options. Take your surveillance system to new heights with this advanced solution.
