Hilook mini DVR 4 Channel 1080P Digital Video Recorder DVR-104G-F1 by Hikvision

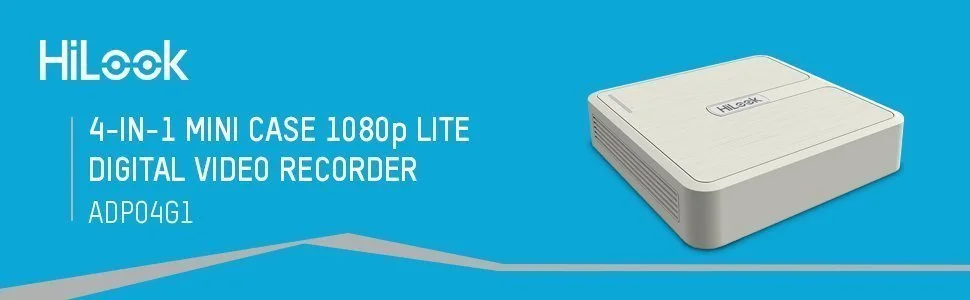

Hilook mini DVR 4 Channel 1080P Lite Digital Video Recorder

Code: DVR-104G-F1

Hilook 4 Channel mini DVR series developed by Hikvision, the world’s leading CCTV manufacturer, designed for domestic and small to medium businesses providing users superb quality products at hugely competitive prices in comparison with their professional trade only range. DVR-104G-F1 4ch DVR is an intuitive and extremely reliable hybrid recorder accepting HD TVI, AHD or analogue cameras. The DVR is able to record 1080p Lite at 12fps, using H264+ compression for up to 50% more storage. It can also accept one IP cameras with up to 960p resolution. Easy connection to your mobile with Hikvision Hik-connect bar code scanning, without any technical or port forwarding knowledge. Includes free iPhone, android, PC and Mac remote viewing software (IVMS4200 & Hik-Connect).

Hilook 4 Channel mini DVR KEY FEATURES

Connectable to TVI AHD CVI or CVBS cameras with self adaptive access.

• Up to 1080p Lite recording

• Up to 1 x additional 960p IP cameras (1 x IP on 4CH, 2 x IP on 8Ch & 16Ch)

• Up to 6TB HDD supported
• Motion detection recording and/or continuous recording

• 1 audio input

• Smart Search for easy playback

• Unlock patter for device login & clear text password available

• Easy connection to Mobile with Hik-connect

Easy Device Management

HiLookVision PC Client and the HiLookVision App allow end-users to connect to the HiLookVision Cloud Server for powerful device management. Users can view live feeds from multiple cameras on a PC or via smartphone (available for iOS and Android).

Video/Audio Input
Audio Input:		1-ch
Video Compression:		H.264,H.264+
Analog Video Input:		4-ch
Analog and HD-TVI video input:		Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30
Supported camera types:		Support AHD input : 1080p25, 1080p30, 720p25, 720p30
IP Video Input:		1-ch Up to 960P resolution
Video Input Interface:		BNC (1.0 Vp-p, 75Ω)
Audio Compression:		G.711u
Audio Input Interface:		RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:		1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF;  When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate:		Main stream: When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Audio Output:
