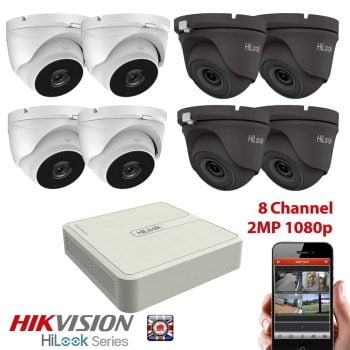

HIKVISION CCTV Kit System HiLook 8 Channel DVR 1080P Dome Camera White/Grey
Code: HL-8CH-1080p-DVR-KIT
Starting price is for the DVR on its own.
Just Select the size HDD you need.
The cameras in either white, grey or any combination.
This CCTV Kit will run a max total of 8 cameras.
2 YEAR WARRANTY ON HIKVISION DVR & CAMERAS
Genuine UK Hikvision stock- no grey market imports. 100% buyer satisfaction.
We will make sure your CCTV kit is complete and ready to install and provide UK based support should you need it.
Choose Up to 8x 1080P Hilook HD quality cameras in either Grey or White colour.
You will receive a 20m Camera cable for each camera selected, a suitable 12v power supply included with this CCTV Kit.
HILOOK DVR Key Features
Model: DVR-204Q-K1
Connectable to TVI AHD CVI or CVBS cameras with self adaptive access.
- Up to 1080p Lite recording
- Up to 1 x additional 960p IP cameras (1 x IP on 4CH, 2 x IP on 8Ch & 16Ch)
- Up to 6TB HDD supported
- Motion detection recording and/or continuous recording
- 1 audio input
- Smart Search for easy playback
- Unlock patter for device login & clear text password available
- Easy connection to Mobile with Hik-connect
Easy CCTV Kit Device Management
HiLookVision PC Client and the HiLookVision App allow end-users to connect to the HiLookVision Cloud Server for powerful device management. Users can view live feeds from multiple cameras on a PC or via smartphone (available for iOS and Android).
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 1-ch | |
| Video Compression: | H.264,H.264+ | |
| Analog Video Input: | 8-ch | |
| Analog and HD-TVI video input: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 | |
| Supported camera types: | Support AHD input : 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 1080p25, 1080p30, 720p25, 720p30 Support CVBS input | |
| IP Video Input: | 1-ch Up to 960P resolution | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
Hilook 2MP 1080P HD DOME CAMERA FEATURES
Model: THC-T120-M
- 1920 × 1080 resolution
- 2.8 mm fixed focal lens
- Day/Night switch
- EXIR 2.0, smart IR, up to 20 m IR distance
- 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
- IP66
| Camera | ||
|---|---|---|
| WDR (Wide Dynamic Range): | DWDR | |
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920 × 1080 | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° | |
| Day& Night: | IR cut filter | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Lens | ||
|---|---|---|
| Horizontal Field of View: | 103° 2.8 mm | |
| Menu | ||
|---|---|---|
| D/N Mode: | Auto/Color/BW (Black and White) | |
| BLC: | Support | |
| AGC: | High/Medium/Low/Off | |
| Function: | Brightness, Sharpness, DNR, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Material: | Metal | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) | |
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4 W | |
| IR Range: | Up to 20m | |
| Dimension: | ? 82.6 mm × 69.66 mm (? 3.38″ × 2.74″) | |
| Weight: | 230 g (0.51 lb.) | |
