Uniview 2MP ColourHunter HD 2.8mm Fixed Lens Analogue Turret CCTV Camera 24/7 Colour
Code: UAC-T112-F28-W
The Uniview 2MP HD Fixed Turret Analogue CCTV Camera is a 2MP ColourHunter HD 2.8mm Fixed Lens Turret Analogue Camera with a high-performance 1/3-inch CMOS sensor. It supports TVI/AHD/CVI/CVBS, which effectively enhances product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types the camera can achieve low-cost, long-distance, anti-interference, and low delay mega-pixel HD video transmission. The camera supports 24/7 full-colour imaging.
Key Features:
- 2MP high quality HD image 2.8mm Fixed Lens
- TVI/AHD/CVI/CVBS
- Supports white light illumination, 24/7 full-color imaging
- Supports 180° horizontal flip, 180° vertical flip
- OSD configuration menu, easy to operate
- IP67 waterproof and dustproof design, high reliability
- OSD configuration menu in 11 languages
Specification:
| Sensor | |
| Pixel | 2MP |
|---|---|
| Size | 1/3″ |
| Minimum illumination | 0.02lux(F1.6, AGC ON) 0.00 lux (white light on) |
| Lens | |
| Lens | 2.8mm |
| Lens mount | M12 |
| Angle of view | H: 100.9° V: 56.5° D: 121.8° |
| Illuminator | |
| Illuminator | One white-light illuminator |
| Illumination distance | 20m |
| Lifetime | ≥60,000 hours |
| Video | |
| Resolution | 1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V) |
| Frame rate | TVI/AHD/CVI: 1080P@30fps, 1080P@25fps; 720P@30fps, 720P@25fps CVBS: PAL, NTSC |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
| Image | |
| Exposure mode | 4 modes: Global (default), BLC, HLC, DWDR |
| Day/Night | 24/7 full-color imaging |
| Digital noise reduction | 2D/3D |
| White balance | Two modes: Auto (default), Manual |
| WDR | DWDR |
| Flip | Supports 180° horizontal flip, 180° vertical flip |
| Interface | |
| Power | 5.5mm power interface |
| Video output | BNC, supports TVI/AHD/CVI/CVBS |
| Operating Environment | |
| Temperature | -30℃ to 60℃(-22℉ to 140℉) |
| Humidity | ≤95% (RH, non-condensing) |
| Surge protection | 4KV |
| Ingress protection | IP67 |
| General | |
| Power | DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W |
| Mount | Surface mount (default), optional backbox, wall mount bracket |
| Dimensions | Φ118mm*96mm (diameter*height) |
| Material | Plastic |
| Weight | 205g(0.452lb) |
| Certification | CB, CE, FCC |

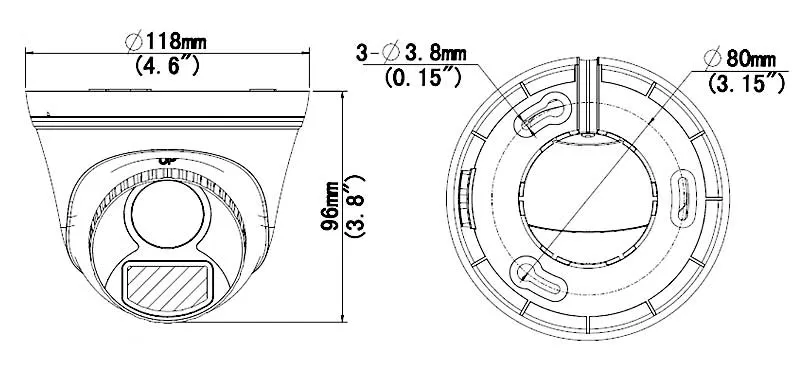

Uniview 2mp ColourHunter HD 2.8mm Fixed Lens Analogue Turret CCTV Camera Diagram / Dimensions:
