Securing your home has never been more important, and installing a CCTV system is one of the best ways to protect your property and loved ones. While the idea of setting up a CCTV system may seem daunting, a DIY approach can save you money and give you greater control over your home’s security.
This guide will take you step-by-step through planning, installing, and setting up your CCTV system. Whether you’re a first-timer or upgrading your current setup, this guide is tailored to help UK homeowners.
1. Planning Your CCTV System
Proper planning is key to a successful installation. Here’s what you need to do:
Assess Your Security Needs
- Identify areas vulnerable to intrusions, such as the front door, back door, garage, and ground-floor windows.
- Determine how many cameras you’ll need to cover these areas effectively.
Choose Between Wired and Wireless Systems
- Wired Systems: Offer reliability and consistent video quality but require more effort during installation.
- Wireless Systems: Easier to install and ideal for small homes but may depend on strong Wi-Fi connectivity.
Select Appropriate Camera Types
- Bullet Cameras: Great for long-range viewing and focused coverage (e.g., driveways).
- Dome Cameras: Provide a wide field of view, perfect for monitoring large areas.
- PTZ Cameras: Allow you to pan, tilt, and zoom, making them highly flexible for multiple viewing angles.
Check Legal Considerations
- Respect Privacy: Avoid pointing cameras at neighbours’ properties or public spaces.
- Data Protection: If recording footage, ensure it is securely stored and not used unlawfully.
- Display “CCTV in Operation” signs if public areas are monitored.
2. Gathering Necessary Equipment and Tools

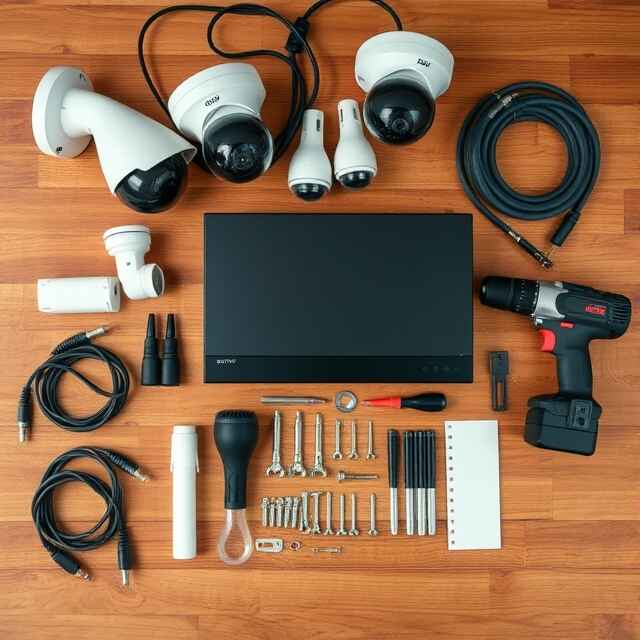

Before you begin installation, gather the essential equipment and tools:
CCTV Kit Components
- Cameras (wired or wireless).
- A DVR (Digital Video Recorder) or NVR (Network Video Recorder) for recording footage.
- Power supply units.
- Cables and connectors (for wired systems).
Additional Tools
- Drill and drill bits for mounting cameras.
- Screwdrivers for fixing brackets.
- Cable clips or conduits for neat wiring.
- Ladder for reaching high mounting points.
3. Installing the Cameras
Proper camera placement ensures maximum coverage and effectiveness:

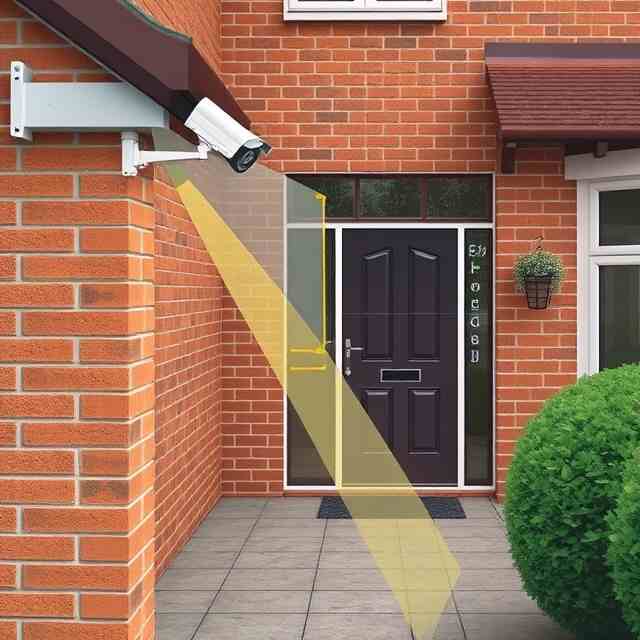

Determine Optimal Camera Positions
- Position cameras at entrances, driveways, and other high-risk areas.
- Mount cameras at least 8-10 feet high to prevent tampering.
- Avoid glare by angling cameras away from direct sunlight or reflective surfaces.
Mount the Cameras
- Use brackets provided with your CCTV kit.
- Drill holes for mounting and ensure the cameras are firmly secured.
- For outdoor cameras, ensure they are weatherproof and use waterproof connectors for cables.
Adjust Angle and Focus
- Position cameras to minimise blind spots and cover critical areas.
- Adjust the focus and field of view to capture clear, detailed footage.
→ See our simple Guide to Choosing CCTV Cameras for UK Homes
4. Running Cables and Power Connections
This step varies depending on whether you are installing a wired or wireless system:
For Wired Systems
- Plan cable routes to minimise visibility and avoid tripping hazards.
- Drill holes through walls or ceilings for cable access.
- Use conduits or cable clips to keep wiring secure and tidy.
- Connect cameras to the DVR/NVR and power supply.
For Wireless Systems
- Position cameras within Wi-Fi range for stable connectivity.
- Connect each camera to a power source (via battery or mains supply).
- Test Wi-Fi signal strength at each camera’s location to avoid interruptions.

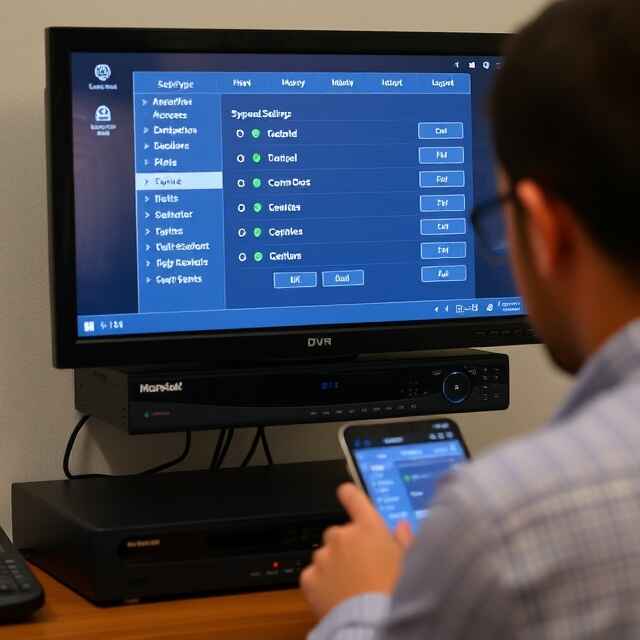

5. Setting Up the Recording Device
A DVR or NVR is essential for storing and managing your footage:
DVR/NVR Placement
- Place the recorder in a secure, ventilated location (e.g., a cabinet or shelf).
- Connect the recorder to a monitor or TV for live viewing and playback.
Hard Drive Installation
- If your recorder does not include a hard drive, install one as per the manufacturer’s instructions.
- Choose a hard drive with sufficient capacity to store your footage.
System Configuration
- Set recording preferences: continuous, scheduled, or motion-activated recording.
- Adjust video settings like resolution, frame rate, and storage overwriting options.
6. Connecting to the Network and Remote Access
Modern CCTV systems allow remote viewing through apps or software:
Network Connection
- Use an Ethernet cable to connect the DVR/NVR to your router.
- For wireless systems, ensure cameras and recorders are properly synced to the Wi-Fi network.

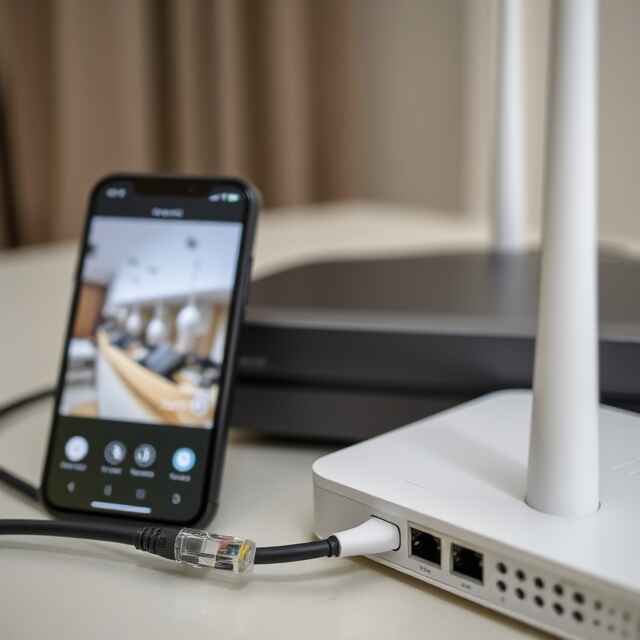

Remote Viewing Setup
- Download the CCTV manufacturer’s app on your smartphone or tablet.
- Follow the app’s instructions to link the CCTV system to your account.
- Enable features like live view, push notifications, and playback.
Ensure Secure Access
- Change default usernames and passwords to prevent unauthorised access.
- Enable encryption or two-factor authentication if supported.
7. Testing and Maintenance
To ensure your CCTV system functions smoothly, perform regular checks and maintenance:
System Testing
- Verify that all cameras provide a clear feed on the monitor or app.
- Test remote access features and playback functionality.
- Check night vision capabilities by viewing footage in low-light conditions.
Regular Maintenance

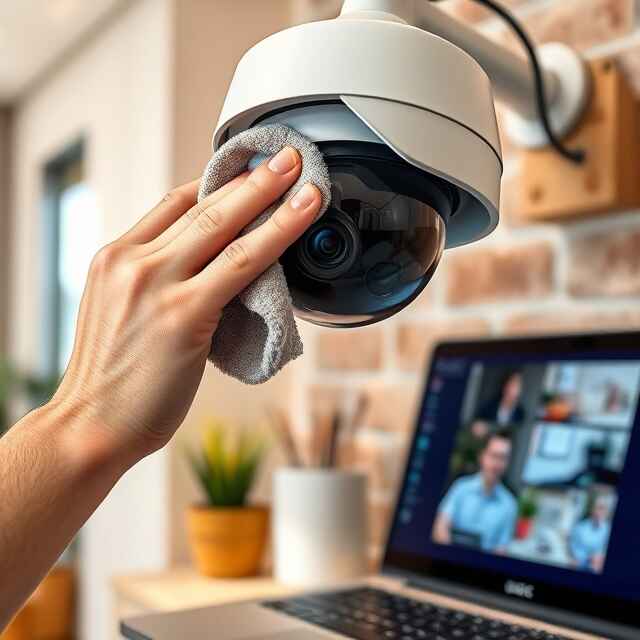

- Camera Lenses: Clean lenses periodically to remove dirt or watermarks.
- Cables and Connections: Inspect for wear, tear, or loose connections.
- Firmware Updates: Keep your system’s software up to date for optimal performance and security.
