Description

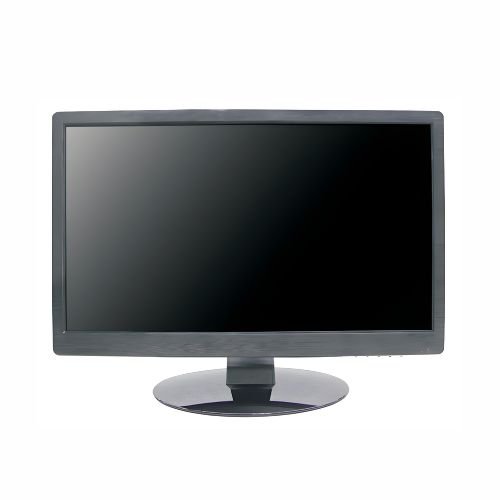

22″ Full HD CCTV Monitor TVI / CVI / AHD / CVBS, HDMI & VGA, Industrial Grade Display
Brand: Neon
Code: NEON-HD22-TVI
Professional 22″ Full HD CCTV monitor supporting TVI, CVI, AHD and CVBS cameras. Industrial-grade LCD panel for 24/7 operation with HDMI, VGA and BNC input/output; ideal for UK security systems and control rooms.
The NEON-HD22-TVI 22″ CCTV Monitor is a professional surveillance display designed for continuous 24/7 operation. Built with an industrial-grade LCD panel and Full HD resolution, it delivers sharp, stable and accurate video for monitoring security camera systems in homes, businesses and control rooms.
This monitor supports TVI, CVI, AHD and CVBS camera formats, making it a versatile solution for modern and legacy CCTV installations. Whether you are connecting directly to cameras or using a DVR/NVR system, the NEON-HD22-TVI ensures clear and reliable video performance.
With HDMI, VGA and BNC input/output, it integrates easily into almost any CCTV setup. The slim plastic housing keeps it lightweight while remaining durable for long-term professional use.
Designed for 24/7 CCTV Operation
Unlike standard consumer HD CCTV monitors, this model uses an industrial DID LCD panel built for continuous use. It is suitable for security rooms, retail environments, warehouses and office surveillance where the screen stays on all day and night.
Wide Camera Compatibility
Supports long-distance transmission from high-resolution cameras:
TVI 4MP / 5MP up to 300m
AHD 4MP / 5MP up to 500m
CVI 2MP / 4MP up to 500m
This makes it ideal for large CCTV installations and long cable runs.
Clear Full HD Display
With a 1920 × 1080 resolution and IPS-style wide viewing angles (178°), the image remains clear and colour-accurate from almost any position.
Perfect for monitoring multiple cameras without distortion or loss of detail.
Noise Reduction & Image Processing
Advanced 3D digital noise reduction and video processing technology delivers smooth, stable images even in low-light or noisy video feeds.
Easy Control & Flexible Mounting
The on-screen menu is simple to use with intuitive controls for brightness, contrast, colour and language settings.
Supports stand mount or VESA wall mounting, making it easy to install on desks, walls or CCTV racks.
Key Features & Benefits
✔ 22″ Full HD CCTV monitor (1920×1080)
✔ Supports TVI / CVI / AHD / CVBS cameras
✔ Industrial-grade panel for 24/7 use
✔ HDMI 2.0, VGA and BNC input/output
✔ 3D digital noise reduction
✔ Wide 178° viewing angle
✔ Low power consumption (≤25W)
✔ Plastic housing – lightweight and durable
✔ VESA mount & stand mount support
✔ Ideal for CCTV systems, control rooms and security offices
Technical Specifications
| Feature | Details |
|---|---|
| Model | NEON-HD22-TVI |

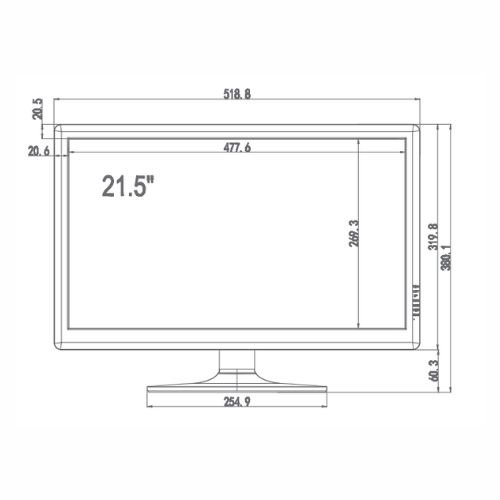

| Screen Size | 22″ |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Display Type | TFT-LED |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Response Time | 5ms |
| Video Standards | PAL / NTSC / SECAM |
| Camera Support | TVI / CVI / AHD / CVBS |
| Inputs | HDMI 2.0 ×1, VGA ×1, BNC ×1 |
| Outputs | BNC ×1 |
| Noise Reduction | 3D Digital Noise Reduction |
| Power Supply | DC 12V |
| Power Consumption | ≤25W |
| Operating Temperature | -30°C to +85°C |
| Mounting | Stand mount / VESA mount |
| Weight | Approx. 3.5kg |
| MTBF | 50,000 hours |
