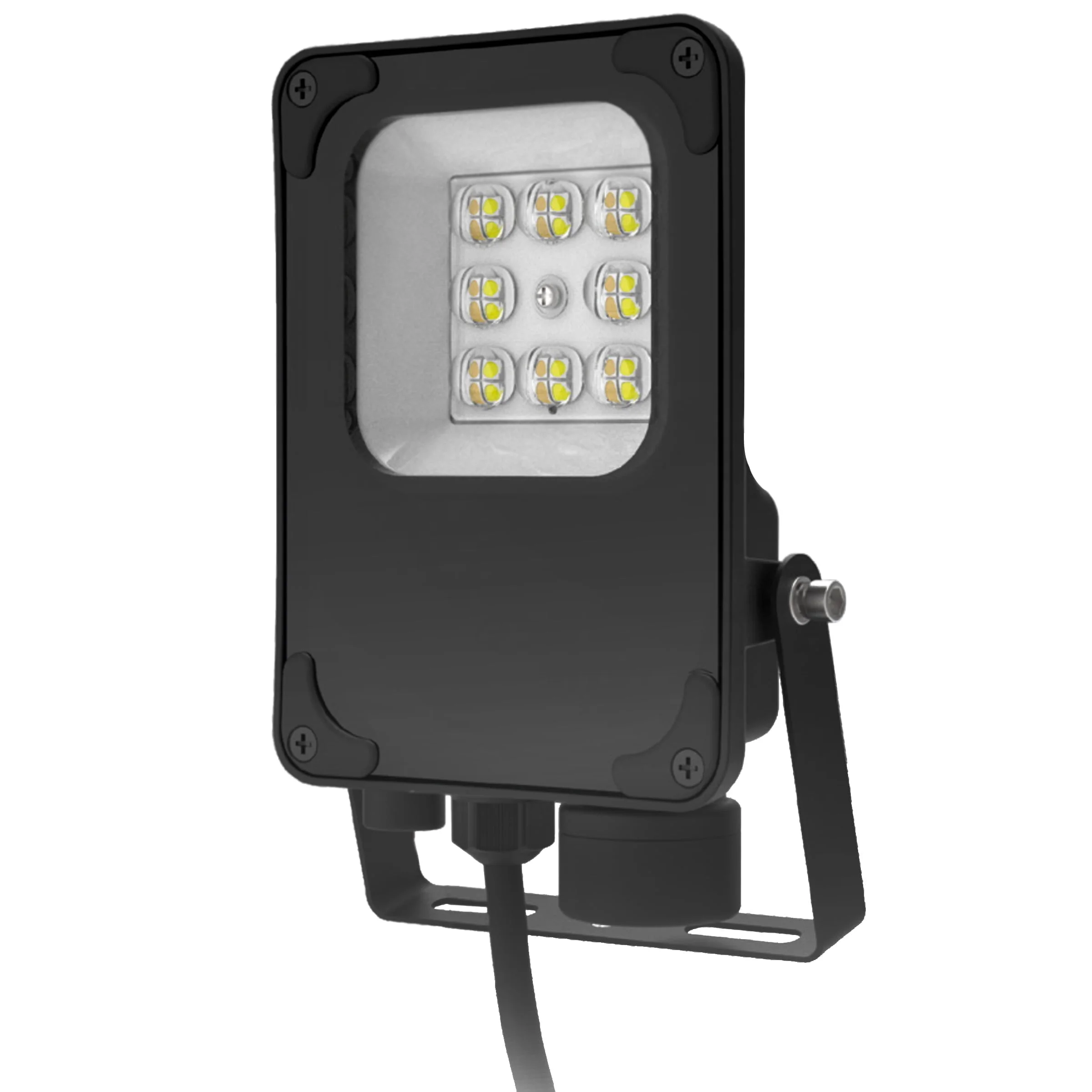

20W LED Flood Light Residential QFlood - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K
Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Technical Drawing
Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Technical Drawing

20W LED Flood Light Residential QFlood – IP65 – IK08 – 2900 Lumen – Tri Colour 3K, 4K, 6K

for price

Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Feature badge

System Power20W
LED ChipsetLumileds
Driver ManufacturerQ-Drive
Lumen Output2900 Lm
IP RatingIP65
IK RatingIK08
Cable flex1m
Beam Spread120°
Colour Temperature3000K, 4000K, 6000K (Tri-Colour)
Housing MaterialAluminium
Operating temperature-25 to +45 ℃
Weight0.8kg
Dimensions122mm x 232mm x 47mm
Input VoltageAC100-277V, 50/60 Hz
Lifetime50,000 hours, L70-B10 (Ta 25 °C)
SKU: QFLOOD-20TC Category: Tag:
Add to Quote request
Share this product

QFlood Tri-Colour 20W LED Flood Light Residential – IP65 – IK08 – 2900 Lumen – Tri Colour 3K, 4K, 6K

Code: QFLOOD-20TC

Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Feature badge



20W LED Flood Light info:
  • Updated Q-Drive driver long-life Lumileds LED Chipset technology
  • Black die cast aluminium housing, toughened glass cover
  • Cable flex: 1m (1000mm)
  • Beam spread: 120°
  • IP Rating: IP65
  • IK Rating: IK08
  • Rated Life: 50,000 hours
  • Operating temperature: – 25°C to +45°

QFlood Tri Colour LED Flood Light (20w) packed with adjustable wall mounting bracket. Energy saving, ideal for both residential and commercial external applications.

More information:

System Power20W
LED ChipsetLumileds
Driver ManufacturerQ-Drive
Colour Rendering Index (CRI)>80
Lumen Output2900 Lm
LED Efficacy145 Lm/cW
Power Factor>0.93
IP RatingIP65
IK RatingIK08
Cable flex1m
Beam Spread120°
Colour Temperature3000K, 4000K, 6000K (Tri-Colour)
Housing MaterialAluminium
Operating temperature-25 to +45 ℃
Weight0.8kg
Dimensions122mm x 232mm x 47mm
Input VoltageAC100-277V, 50/60 Hz
MacAdam Step< 3
Lifetime50,000 hours, L70-B10 (Ta 25 °C)
CE StandardsEN60598-1, EN 60598 2-5, EN62493, EN55015, EN61547, EN61000-3-2, EN61000-3-3, EN62722-1, EN62722-2-1 and EN50581
CE DirectivesLVD, EMC, ERP & RoHS

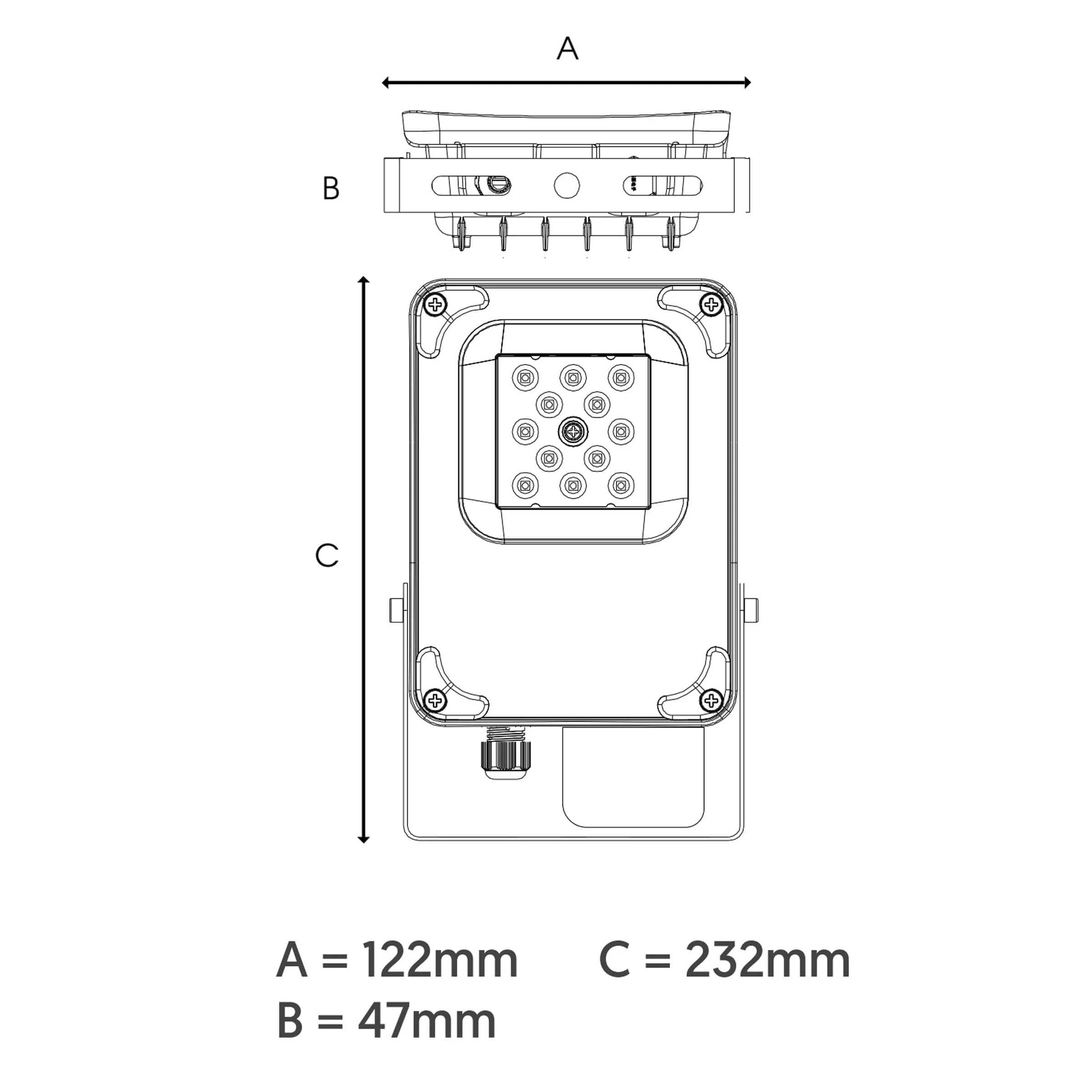

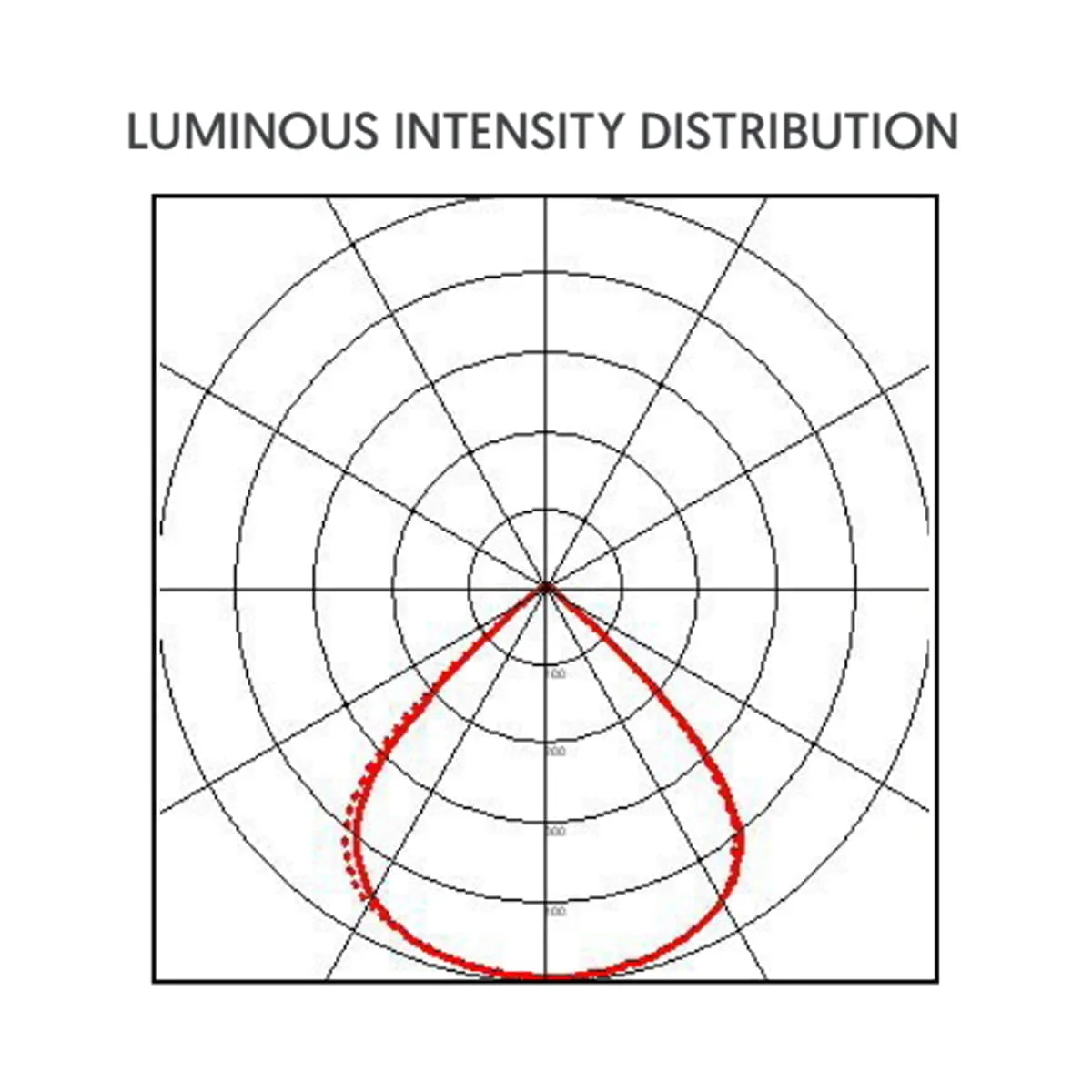

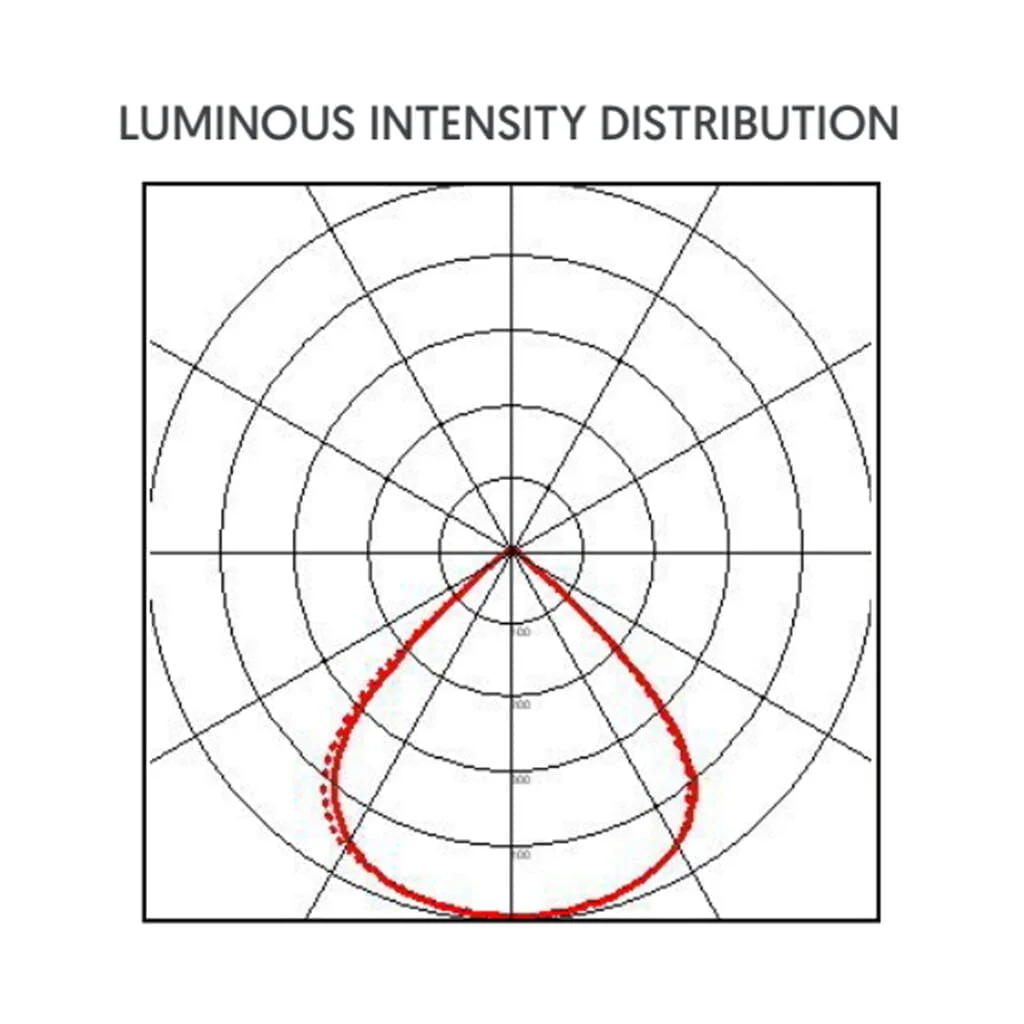

Technical Drawings:

Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Technical Drawing   Tri-Colour LED Flood Light Residential QFlood - 20w - IP65 - IK08 - 2900 Lumen - Tri Colour 3K, 4K, 6K - Technical Drawing
