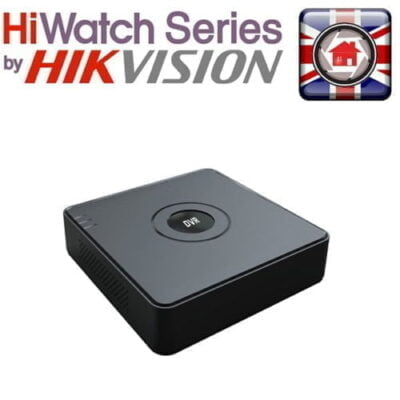

Hiwatch Hikvision CCTV SYSTEM DVR-108G-F1 8 Ch 1080P TVI CVI DVR Video Recorder
Code: DVR-108G-F1
One of the best CCTV System Recorder DVR in the market. Get one today!
- Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
- Long distance transmission over UTP and coaxial cable
- One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
- Supports 1080p lite and when enabled, the image effect is similar with 1080p
- Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
- One SATA interface (up to 6 TB capacity per HDD)
- Smart search for efficient playback
| Video/Audio Input |
|---|
| Audio Input: | 1-ch | | Video Compression: | H.264,H.264+ | | Analog Video Input: | 8-channel | | Analog and HD-TVI video input: | Support HDTVI input: 1080p25, 1080p30, 720p25, 720p30 | | Supported camera types: | Support AHD input: 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 1080p25, 1080p30, 720p25, 720p30
Support CVBS input | | IP Video Input: | 2-ch Up to 960P resolution | | Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | | Audio Compression: | G.711u | | Audio Input Interface: | RCA (2.0 Vp-p, 1 kΩ) | | Two-way Audio: | 1-ch RCA(2.0Vp-p, 1kΩ) |
| Video/Audio Output |
|---|
| HDMI/VGA Output: | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz | | Recording resolution: | When 1080p Lite mode not enabled: 720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF | | Frame Rate: | Main stream:
When 1080p lite mode enabled:
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N)
When 1080p lite mode not enabled:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N) | | Video Bit Rate: | 32 Kbps ~ 4 Mbps | | Stream Type: | Video/Video&Audio | | Audio Output: | 1-ch RCA(Linear, 1kΩ) | | Dual Stream: | Support | | Synchronous Playback: | 8-channel |
| Network management |
|---|
| Remote connections: | 128 | | Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS |
| Hard Disk Driver |
|---|
| Interface Type: | 1 SATA Interface | | Capacity: | Up to 6 TB capacity for each disk |
| External Interface |
|---|
| Network Interface: | 1; 10M / 100M self-adaptive Ethernet interface | | USB Interface: | 2 USB 2.0 Interfaces |
|
|---|
